Description
SUSSURRO
The Sussurro ~ critical design decisions, realized. Lowest internal mass. Best damping. Esoteric stylus and cantilever.
Inspired by Frank Schröder, designed and individually hand made by Peter Ledermann, Soundsmith‘s Sussurro is a cartridge designed to specifically address the most intricate and critical issues of cartridge design. The new Sussurro MKII has a newly designed moving iron element to reduce moving mass by 70%. The resulting extremely low stored inertia, with a newly engineered damping system and innovative energy distribution path, allows proper coupling into the tone arm. So what does all this mean?? Low jitter. Jitter? You probably thought that was a term reserved for digital systems. Not so. Stylus jitter is responsible for loss of detail, and making a cartridge sound, well, like a cartridge.

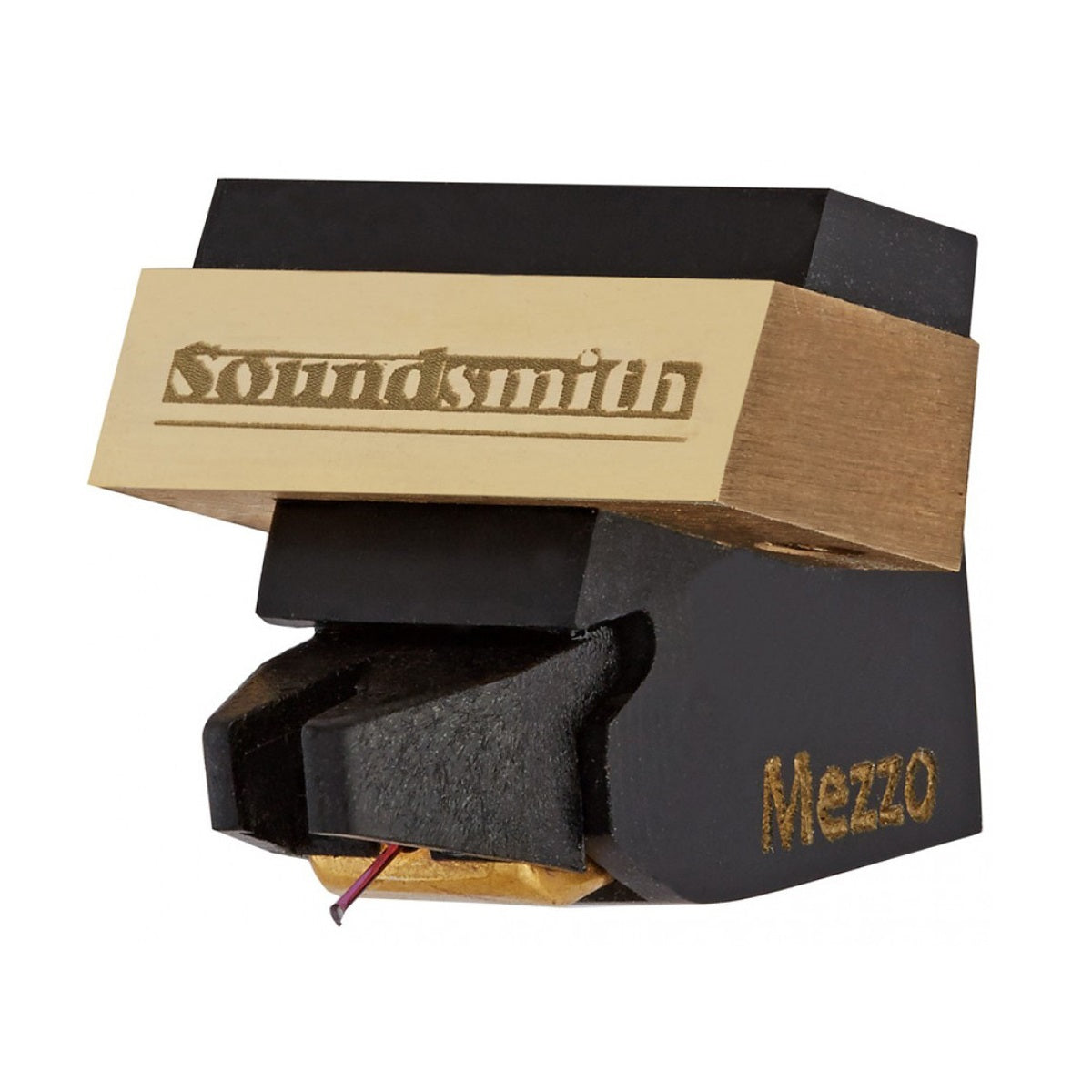

MEZZO
This is our new medium output design. All other technical specifications are identical to the SUSSURRO
SUSSURRO / MEZZO Technical specifications
Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: OCL (Optimized Contour Contact Line) SELECTED
Cantilever: Ruby
Recommended Tracking force: 1.8 to 2.2 Grams
Effective tip mass: 0.30 mg
Compliance: 10μm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel Separation (stereo only): 1000 Hz >34 dB, 50-15,000 >25 dB
Channel difference: <0.5 dB (Stereo), <1.0 dB (Mono)
Output voltage SUSSURRO: 0.4 mV
Output voltage MEZZO: 1.1 mV
Cartridge weight: 10.25 Grams
Loading SUSSURRO: ≥ 470 Ω
Loading MEZZO: ≥ 1.5 kΩ
