SVS 3000 In-Wall Subwoofer System (including rack-mount STA-800D2)

Sale price$3,999.00

Includes GST. 🚚 Free shipping on orders over $100 Australia wide at checkout.

Model:

Model

Colour:Black
Quantity:
Pickup available at 22 Saint Kilda Road Usually ready in 2-4 days

SVS 3000 In-Wall Subwoofer System (including rack-mount STA-800D2)

Single Subwoofer System / Black

22 Saint Kilda Road

Pickup available, usually ready in 2-4 days

22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

0395250022

Ask Geoff

This product is not able to be added to your cart for one or more of these reasons.

  1. The supplier has a policy that prevents us from doing so.
  2. There are delays in supply, and I would prefer to make you aware of lead times;
  3. This is a bespoke item and I don't want you to pay in full and wait a long time for it to be made and shipped,
  4. I would like to discuss the synergy of the product matching with your system
  5. Due to fluctuating shipping and currency effects, the product may have come down in price. I can offer you a market price.

Please use this resource and contact me using the following form or call me.

Your Javascript is disabled

3000 In-Wall Subwoofer

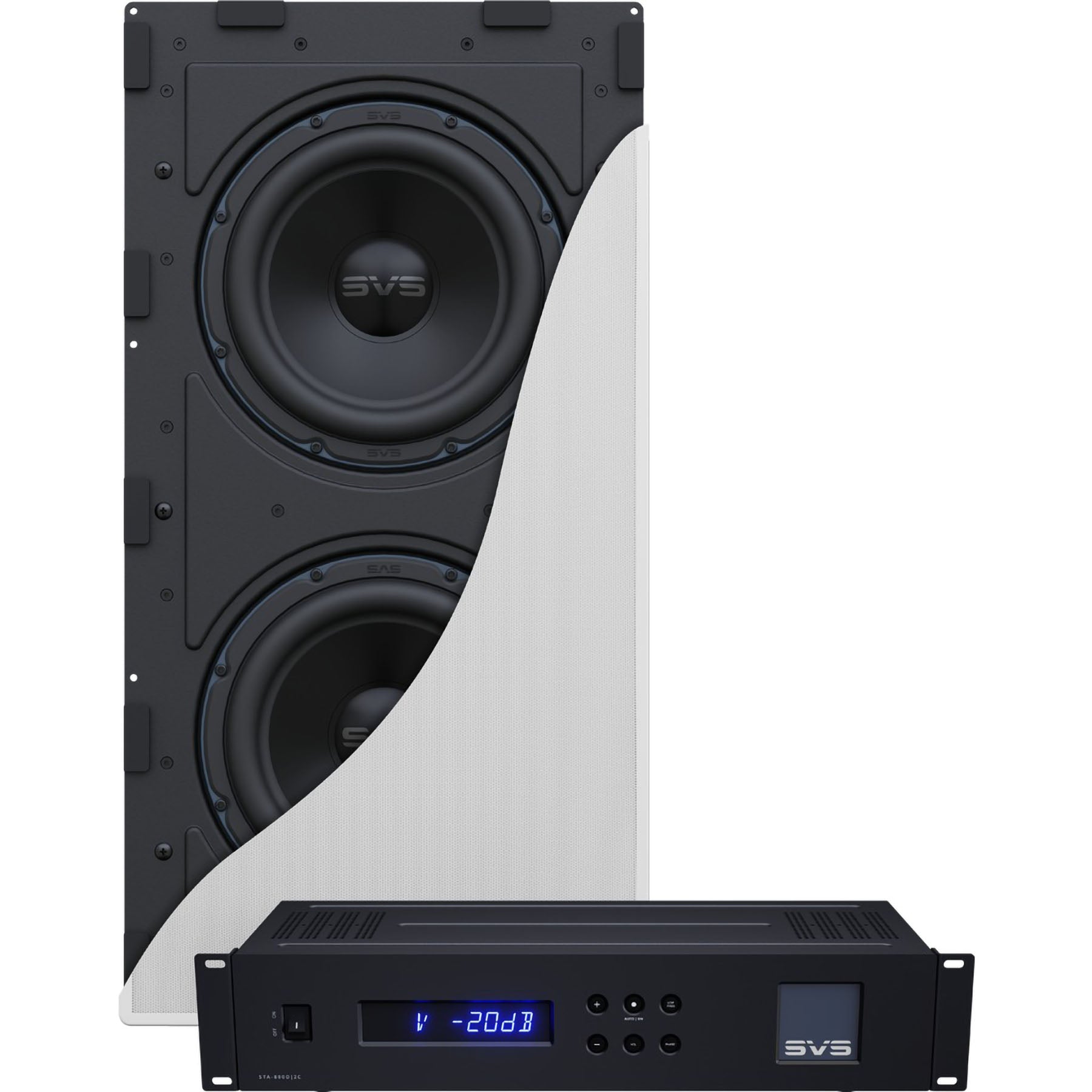

For the first time ever, an architectural subwoofer delivers on the promise of immersive, cinematic bass without compromise. A feat of inspired engineering, SVS 3000 In-Wall subwoofer is primed for easy installation in an existing room or new construction and features dual active 9-inch high-excursion drivers powered by an 800 watt RMS, 2,500+ watts peak amplifier with discrete MOSFET output.

Massive Cinematic Bass, No Floorspace Required.

Engineering in-wall subwoofer capable of deep, chest-pounding output, while maintaining effective thermal and energy management that’s also easy to install, has always been a noble pursuit for subwoofer brands. Many have tried, all have failed. Until now.

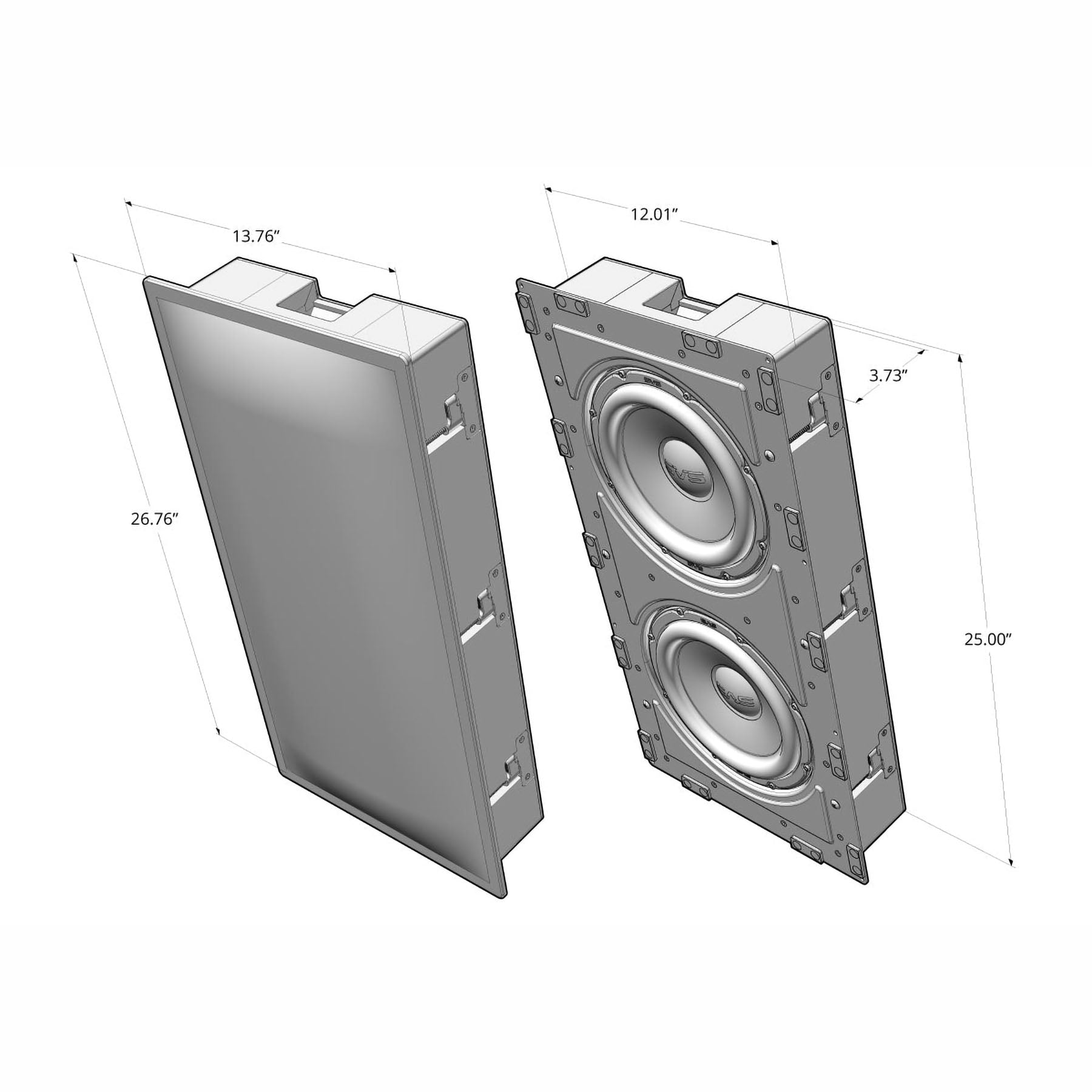

Shallow and narrow enough to fit between standard wall studs with options for existing rooms or new construction, SVS 3000 In-Wall Subwoofer thrills music and home theater fans with breathtaking bass from an enclosure that remains virtually invisible in a room and requires no floorspace.

SVS engineers bent the laws of physics designing a subwoofer ecosystem capable of producing massive, effortless response with pinpoint control and accuracy. Solid aluminum front and rear baffles with reinforced internal bracing ensure the sealed cabinet remains acoustically inert, even as the dual active 9-in high-excursion drivers are being driven to extreme levels.

Reference amplifier technology from the flagship SVS 16-Ultra subwoofers was applied in the Sledge STA-800D2C amplifier. Rated conservatively at 800 watts RMS, 2,500+ watts Peak Power with discrete MOSFET output, the 3000 In-Wall amplifier unleashes ample on-demand current with unerring control to maximize the dual 9-in driver’s potential. All available in an easy to install 2U rack-mount amplifier.

As with all SVS models, the 3000 In-Wall Subwoofer features the groundbreaking SVS Subwoofer Control Smartphone App. It offers the most convenient way ever to control volume, access multiple DSP functions, and program custom preset tuning profiles optimized for music, movies, gaming, and more. All accessible with a single touch from your favorite seat.

3000 Series Technology

Inspired Subwoofer Engineering for Uncompromised Performance.

The new SVS 3000 In-Wall features technology breakthroughs from the 16-Ultra Series, 4000 Series, 3000 Series, 2000 Pro Series, and 1000 Pro Series. This technology joins with exclusive 3000 In-Wall innovations to set a new standard for subwoofer performance value. More people than ever can now enjoy room-shaking bass below the threshold of human hearing with unerring accuracy and control.

Inspired Engineering for Breathtaking Performance.

Dual Active 9-In Drivers Deliver Extreme Output with Control and Accuracy

All new oversized motor design, custom-tooled basket, and rigid yet lightweight aluminum cones on the pair of active 9-in drivers are optimized for maximum acoustic output and thermal efficiency from a compact enclosure. Over-engineered to deliver chest-pounding low frequencies without distortion, 3000 In-Wall drivers are a true feat of engineering.

Optimized Motor Assembly for Dual Active Drivers

An oversized, vented motor structure is optimized for efficient thermal and mechanical-energy management in a confined space. Massive electromagnetic force produced by the motor, in symphony with the high current driving power of the Sledge amplifier, allows the 3000 In-Wall to maximize on the output potential of the dual 9-in active drivers.

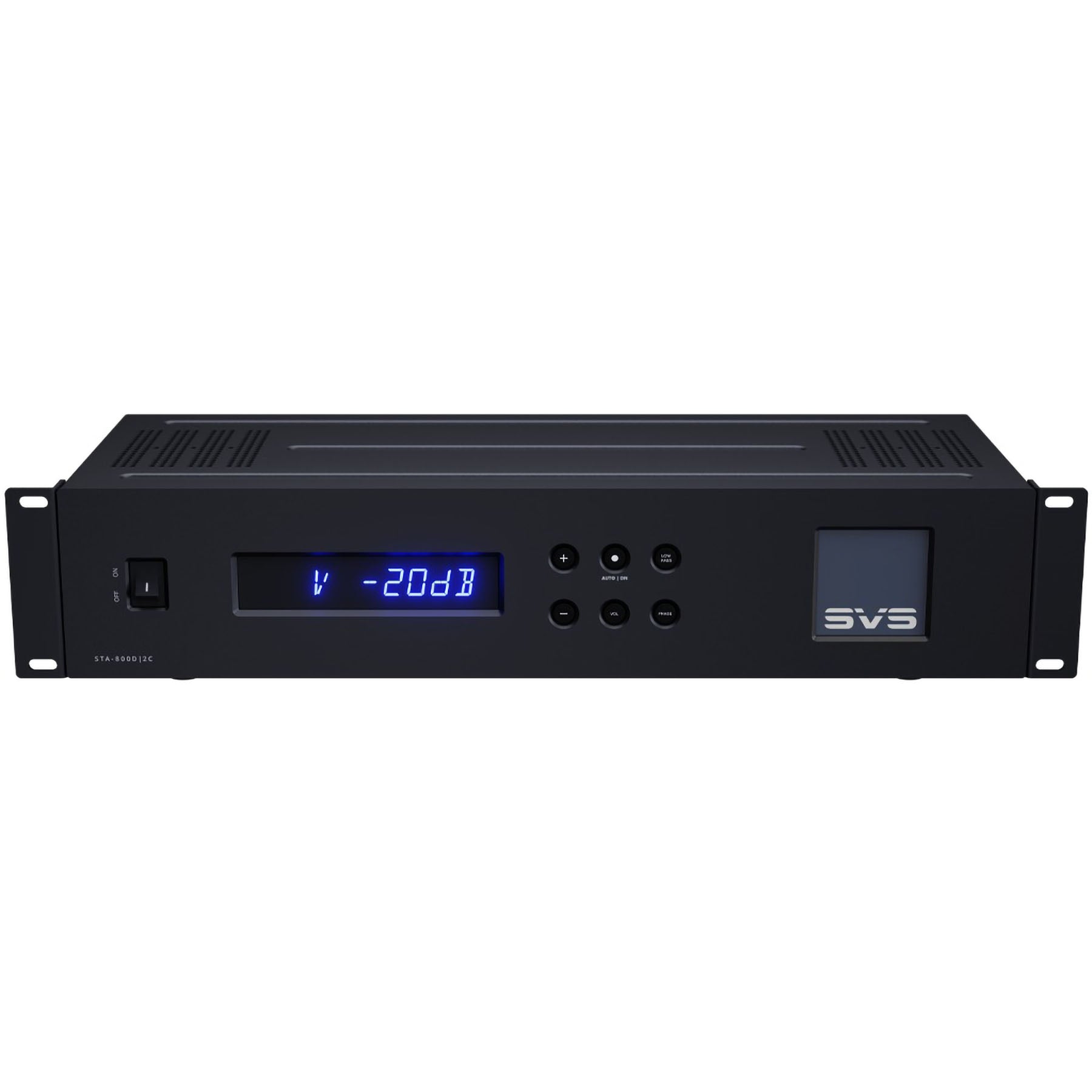

Potent and Groundbreaking Sledge STA-800D2C Amplifier

Conservatively rated at 800 watts RMS, 2,500 watts Peak Power, the 3000 In-Wall amplifier platform adapts flagship SVS technology for the challenges of in-wall design. Combining the high-current output of discrete MOSFETs with Class D efficiency and the processing power of an Analog Devices 50MHz DSP, the 2U rackmount amplifier effortlessly produces sustained high-current output for extreme SPLs at the deepest frequencies without a trace of distortion.

Sophisticated 50 MHz DSP Engine – Unrivaled Processing Power from a Home Audio Subwoofer

A 50 MHz Analog Devices DSP, normally reserved for high-end separate audio components, delivers sophisticated control and custom response curves optimized for real-world output and acoustically tuned room gain.

DSP plays a major role in making the 3000 In-Wall subwoofer sound far bigger than its enclosure. SVS engineers painstakingly crafted an in-room frequency response curve that fully maximizes the potential of a room’s boundaries to produce greater output and deeper bass extension without bloat or boominess. The result, a subwoofer that far exceeds expectations given its low profile.

3000 In-Wall Smartphone App – Easiest Way Ever to Manage Subwoofer DSP and Control

The most convenient way ever to control volume, access multiple DSP functions, and program custom presets for one-touch tuning optimized for music, movies, gaming, and more. Adjust crossover frequencies, dial-in the three-band parametric EQ, polarity, room gain and more, all from your favorite seat.

Connects via Bluetooth for convenient control even when subwoofer is out of sight.

Saved custom presets for one-touch tuning with optimized settings based on listening preferences for movies, music, and more. All accessible from a single touch.

3-band parametric EQ controller allows precise adjustments for boost or cut, Q-factor, and frequency down to the single Hz level with so users can customize performance by eliminating peaks, nulls and other room issues.

Sledge Amplifier Inputs and DSP Controls

External amplifier unit features inputs for connecting single or dual subwoofers and convenient tuning controls.

Level Control to fine tune the overall output level that best matches the system and room

Low pass filter control to ensure smooth sonic transitions and seamless blending with the main speakers

Phase control to align the subwoofer’s output timing with the main speakers or additional subwoofers

RCA Audio Interconnect Input for use with most AV receivers and preamplifiers

Single or Dual Subwoofer Outputs to drive 800 watts to a single subwoofer, or 400 watts to dual subwoofers

3.5mm Trigger input for each system connection and control

USB port provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.

Acoustically Inert and Rigidly Braced Sealed Cabinet

Aircraft grade aluminum panels were custom formed into rigid 2.5mm thick front and rear baffles around an MDF frame to create an unyielding, sonically inert enclosure for the drivers. Extensive front to back bracing eliminates any potential cabinet resonances even at extreme playback levels.

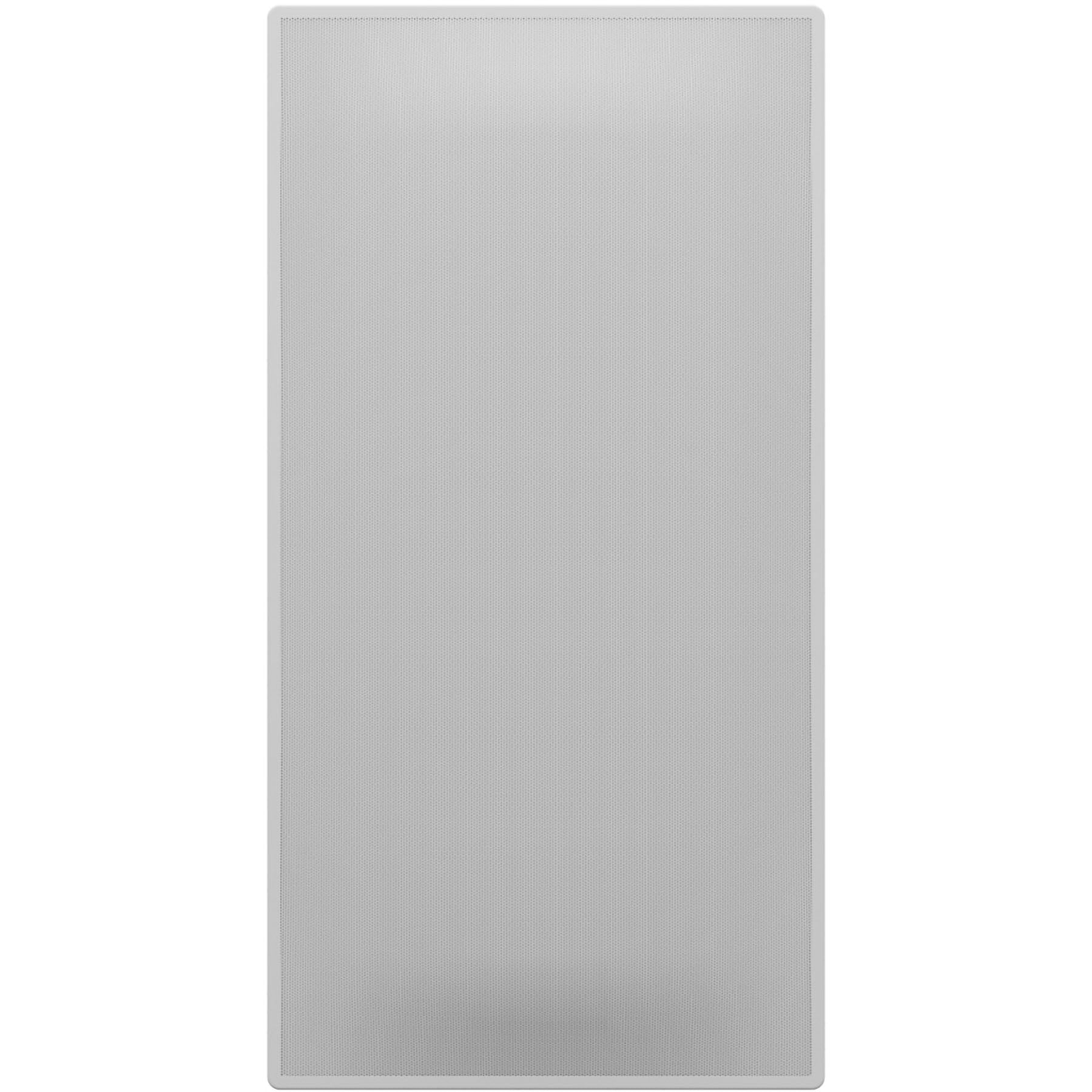

Detachable magnetic grille is acoustically transparent and paintable for seamless blending into any home environment.

Easy to Install in Existing Rooms and New Construction

3000 In-Wall Subwoofer installation is by way of dog-leg mounting, or direct-to-stud screw down points within standard 16-in stud spacing. Connection options are available for single LFE channel or stereo left/right with dedicated speaker cable banana terminals for easy connections between the source, amplifier, and subwoofer. Pre-construction kit, mounting templates and set up guide are also available.

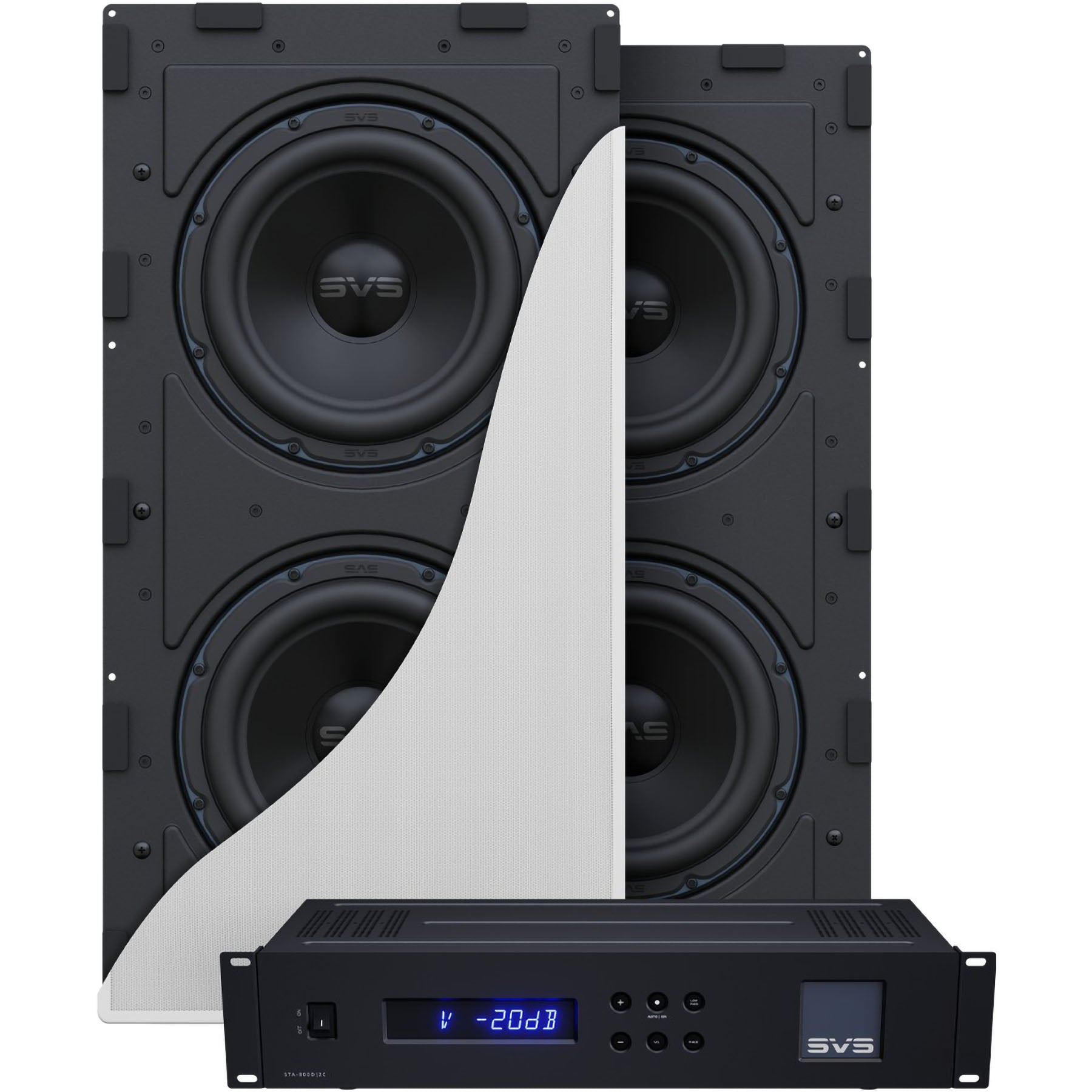

Dual Subwoofer Option

Every Sledge STA-800D2C amplifier is equipped with a second set of binding posts for dual subwoofer configurations. This option exists for users with extremely large listening areas who want a truly over-the-top experience with more even bass response output the room.

In this case, a single 2U amplifier would change impedance and split the 800 watts RMS (400 watts x 2) evenly between the two drive units. No second amplifier needed.
