B8+ – 8 Way Surge Protector with Advanced Filtration
SMART TECHNOLOGY POWER PROTECTION AND FILTRATION
Features

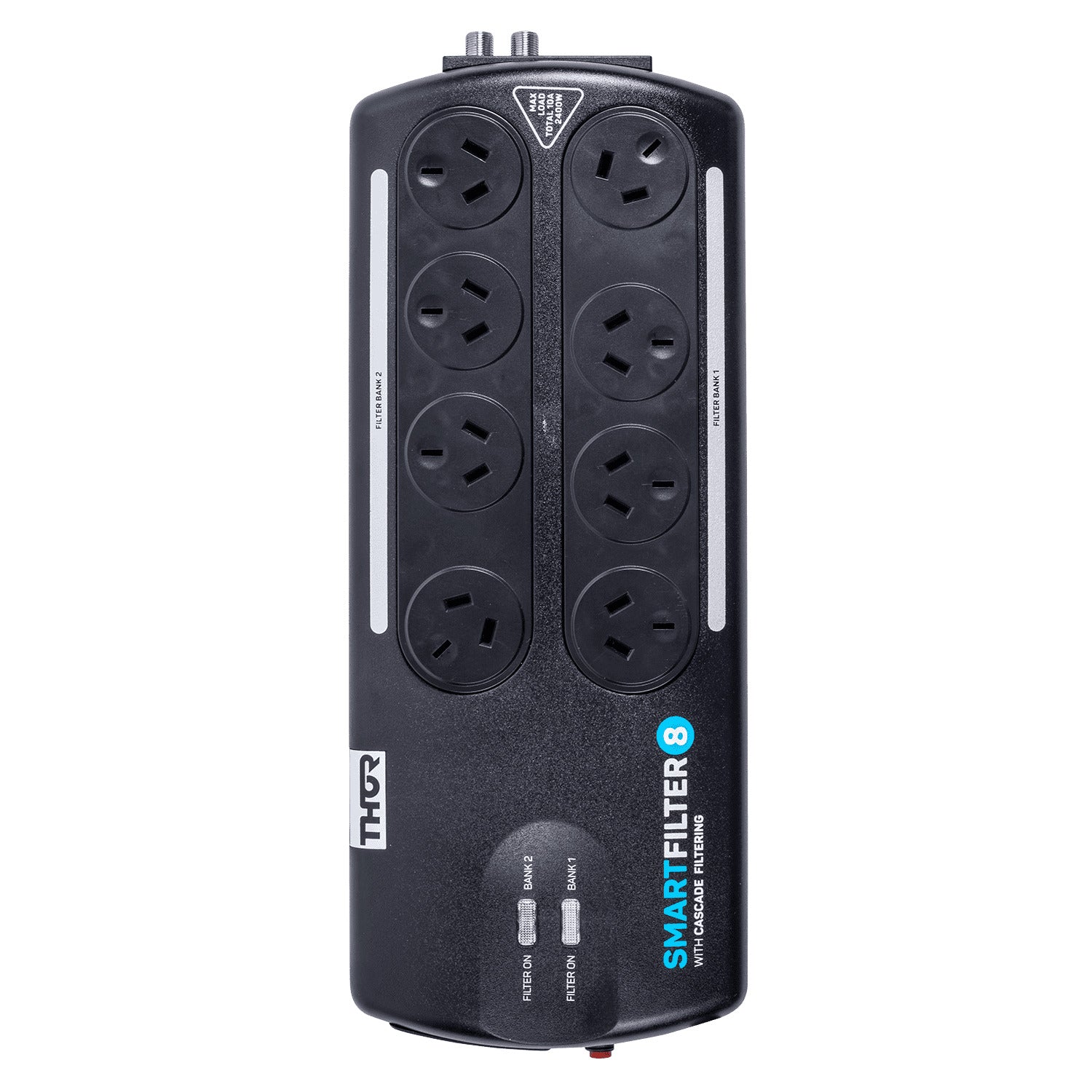

- 8 PROTECTED OUTLETS
- 2 ISOLATED BANKS
- PAY/TV PROTECTION
- DATA/VOICE PROTECTION
- LARGE PLUG ADAPTORS
- 1.8M CABLE LENGTH
- FIRE RETARDENT
- AERIAL PROTECTION
Protects
- OLED/LCD TV
- HIFI AND HOME THEATRE
- ACTIVE/PASSIVE SPEAKERS
- INTERNET REDUCES NEN/ADSL DROPOUT
- COMPUTERS
- PRINTERS AND SCANNERS
- GAMING

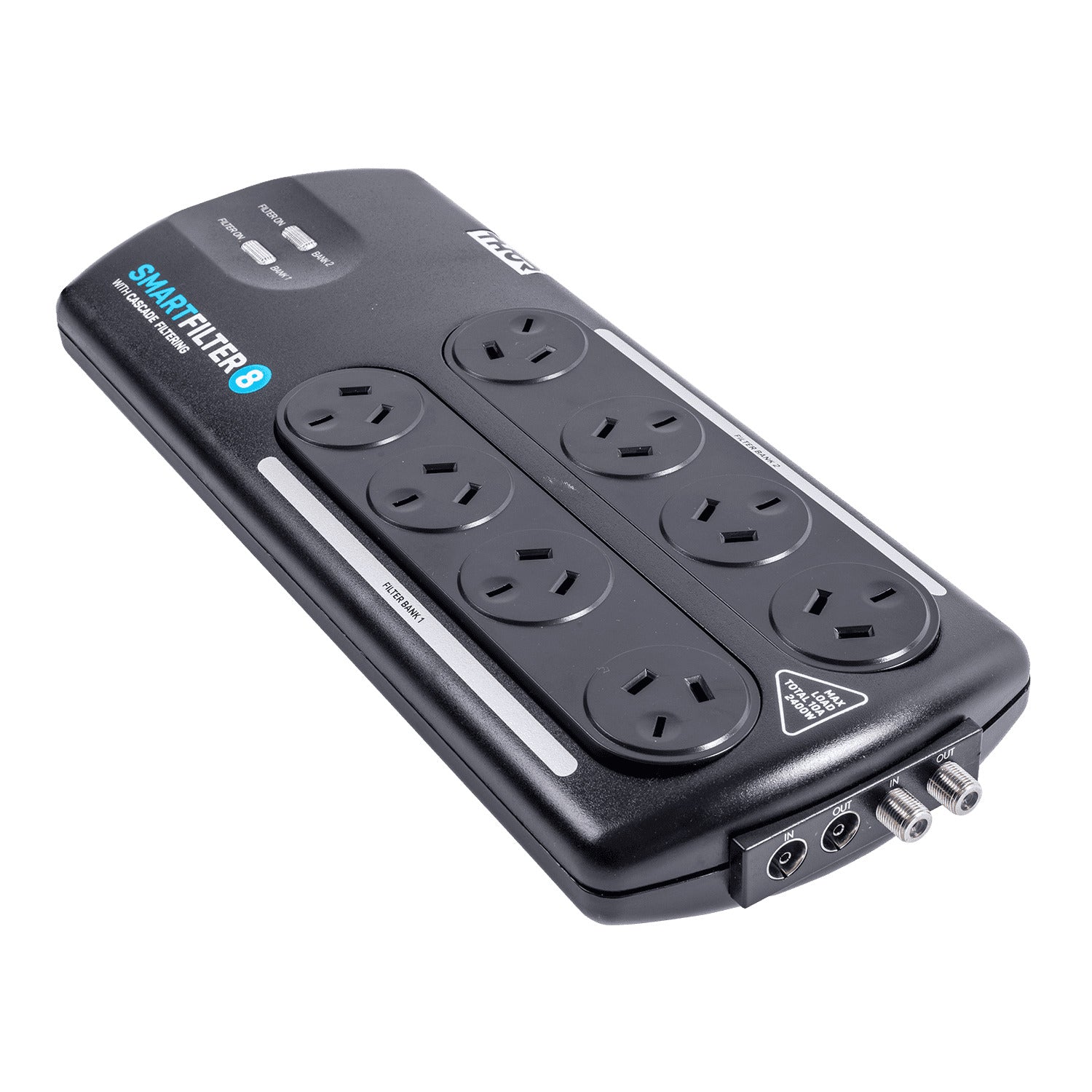

1 - AV/TV connection (in and out)
2 - Bank 1 (4 outlets): Surge protection and filtering
3 - Bank 2 (4 outlets): Surge protection and filtering
4 - Large plug adaptors

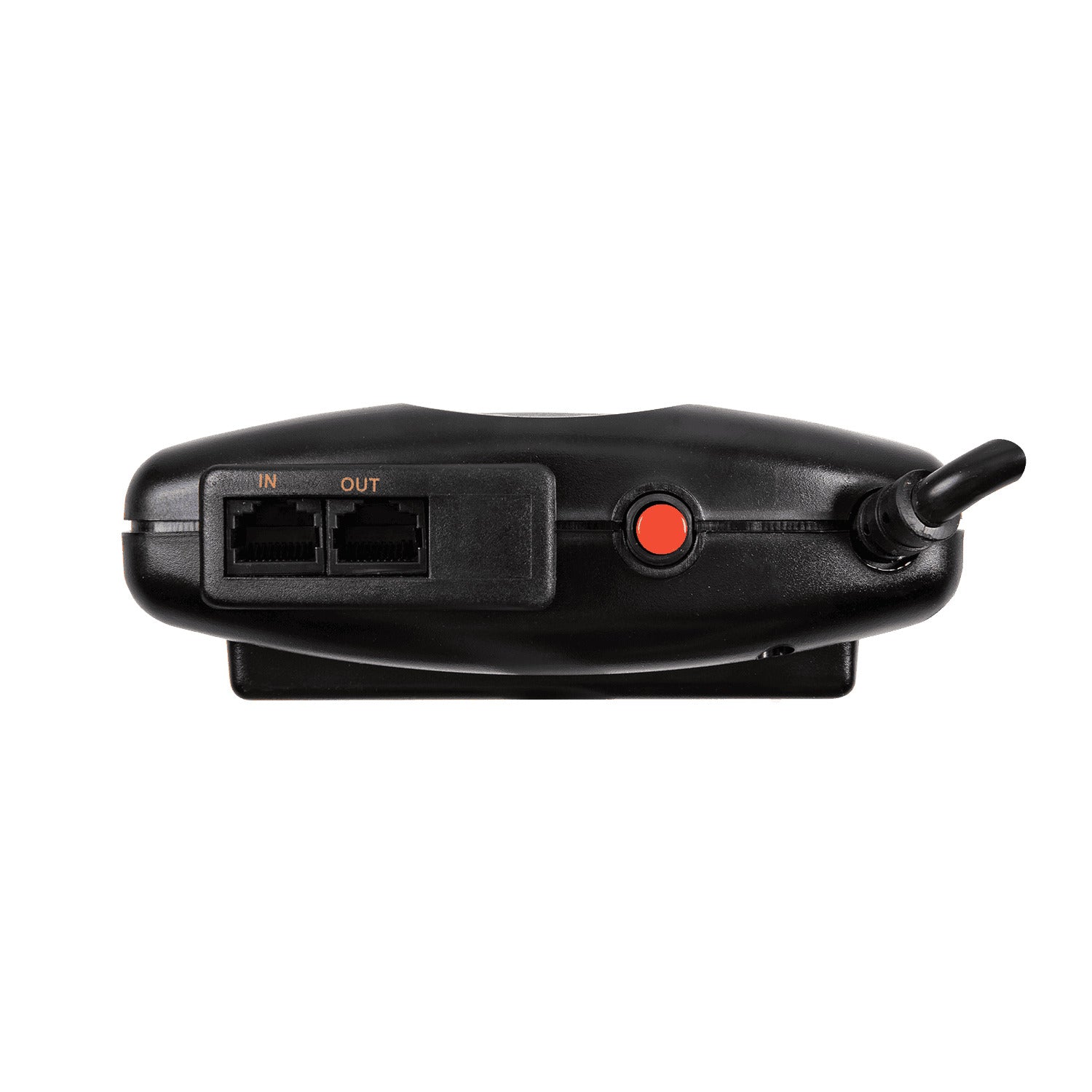

5 - RJ 45 data protection (1 in and 1 out)
6 - Resettable safety 10 amp circuit breaker

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise. Cascade Filter “cleans” around 20% more frequencies than other filtered boards to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.
Inside the brain
There are 4 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 2 x AC Banks (2 x 4 outlets) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.
Video
| Model No. | B8+ |
| Product Dimensions | 350mm (L) × 45mm (H) × 140mm (W) |
| Supply Voltage | 240 V AC, 50 Hz |
| Maximum Current Rating | 10 amps / 2400 W (VA) |
| Clamping Voltage | 300 V AC |
| Reaction Time | Less than 1 nanosecond |
| Maximum Transient Spike Impulse Current | 196,000 amps (equivalent to 49,000 amps using UL1449 standard) |
| Maximum Energy Dissipation | 5868 Joules (equivalent to 2100 Joules using UL1449 standard) |
| Protection Modes | Active/Neutral, Active/Earth, Neutral/Earth (all 8 outlets protect on all 3 conductors) |
| Noise Reduction Filter Type | EMI/RFI Cascade Dual Bank Isolation with 2 Cascading Circuits |
| Number of Multi-Stage Filter Banks | 2 |
| Number of Isolated Banks | 2 |
| Number of Dedicated Outlets | 4 + 4 |
| Total Number of Protected AC Outlets | 8 |
| RJ45 Data Protection | 1 in / 1 out |
| AV/TV Connection | In / Out |
| Cable TV ‘F’ Type Connection | In / Out |
| Earth Potential Rise Protection | Yes |
| Earth Leakage Range | Less than 1 milliamp |
| Operating Conditions | Indoor / AC mains |
| Operating Temperatures | -10°C to +60°C |
| Cable Length | 1.8 m |
