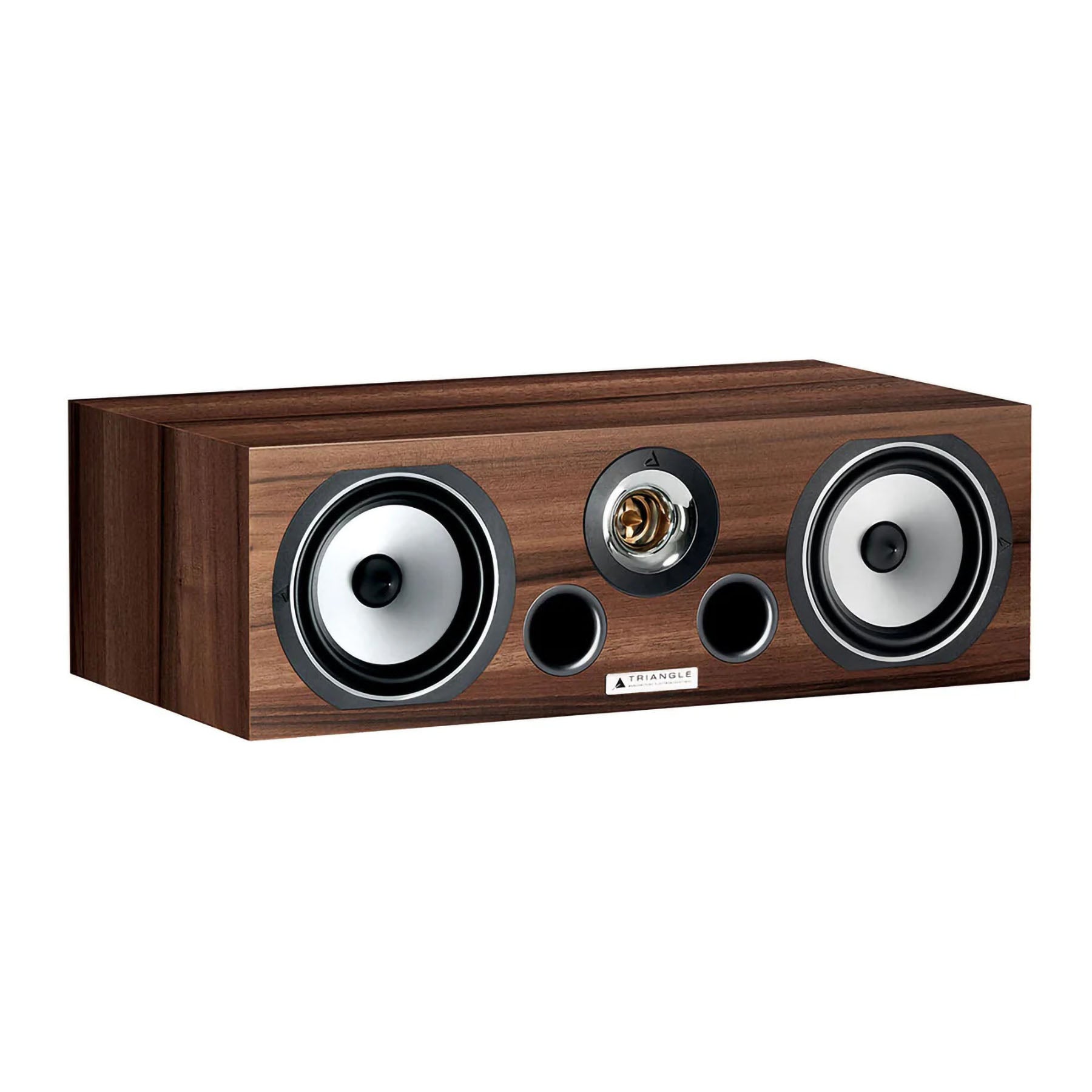

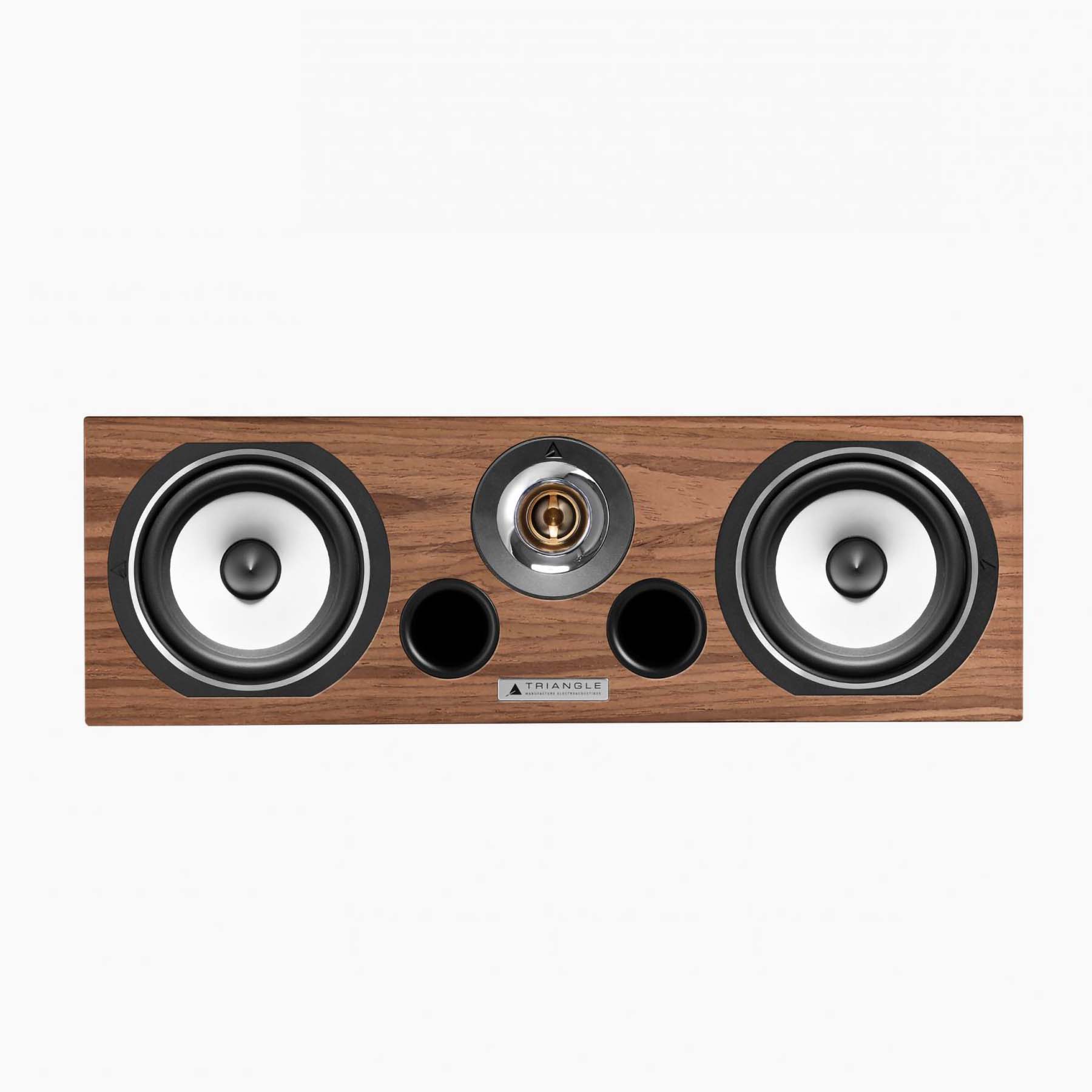

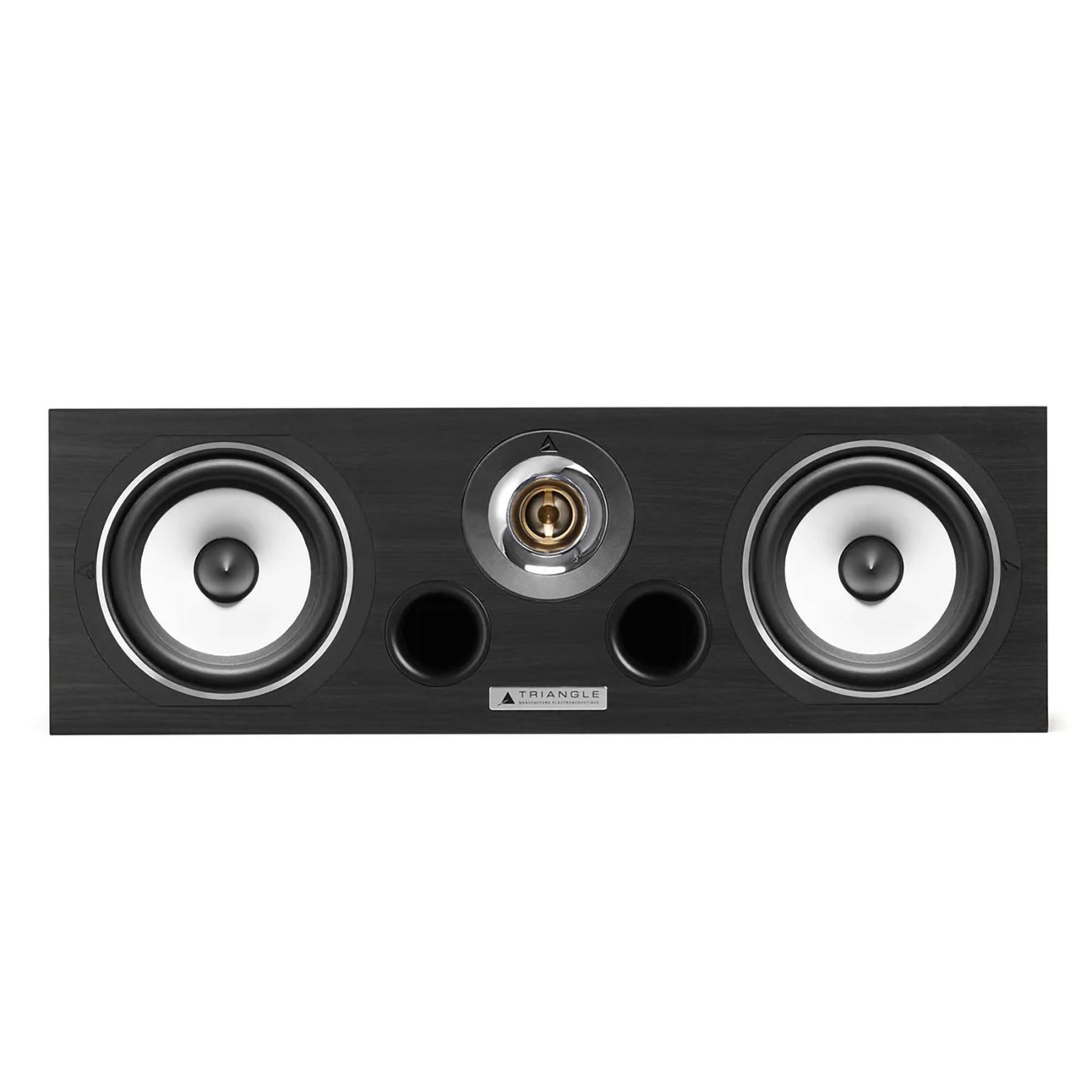

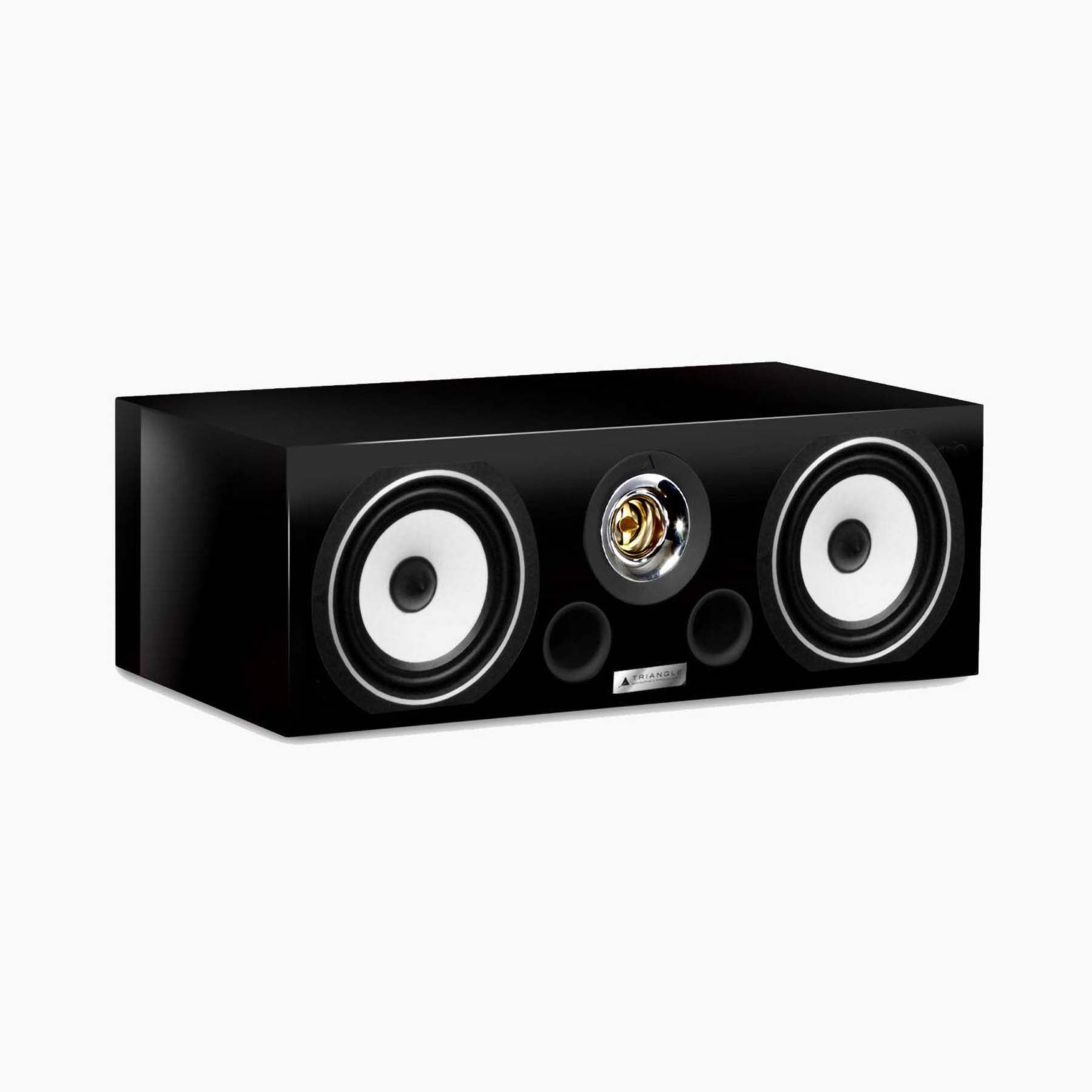

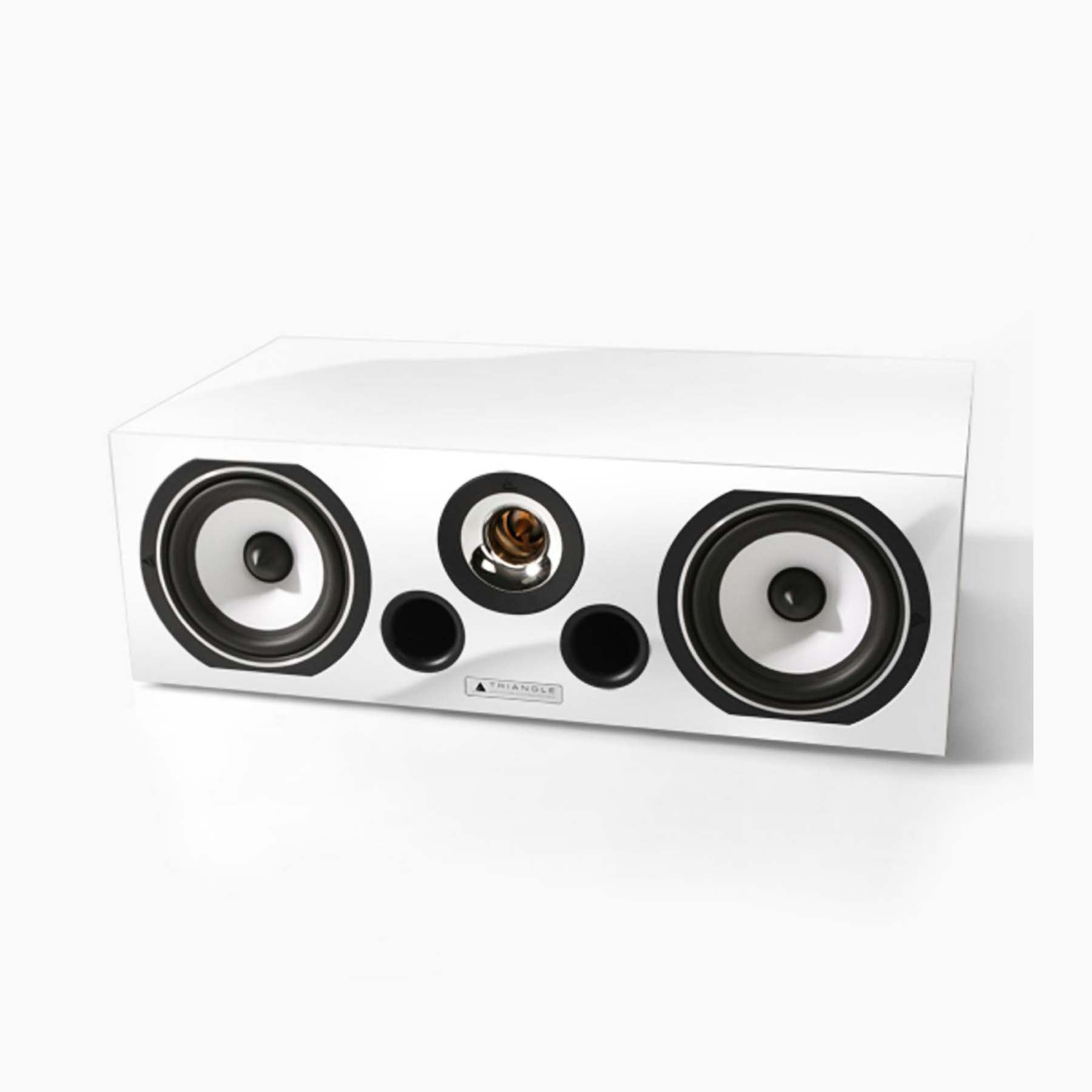

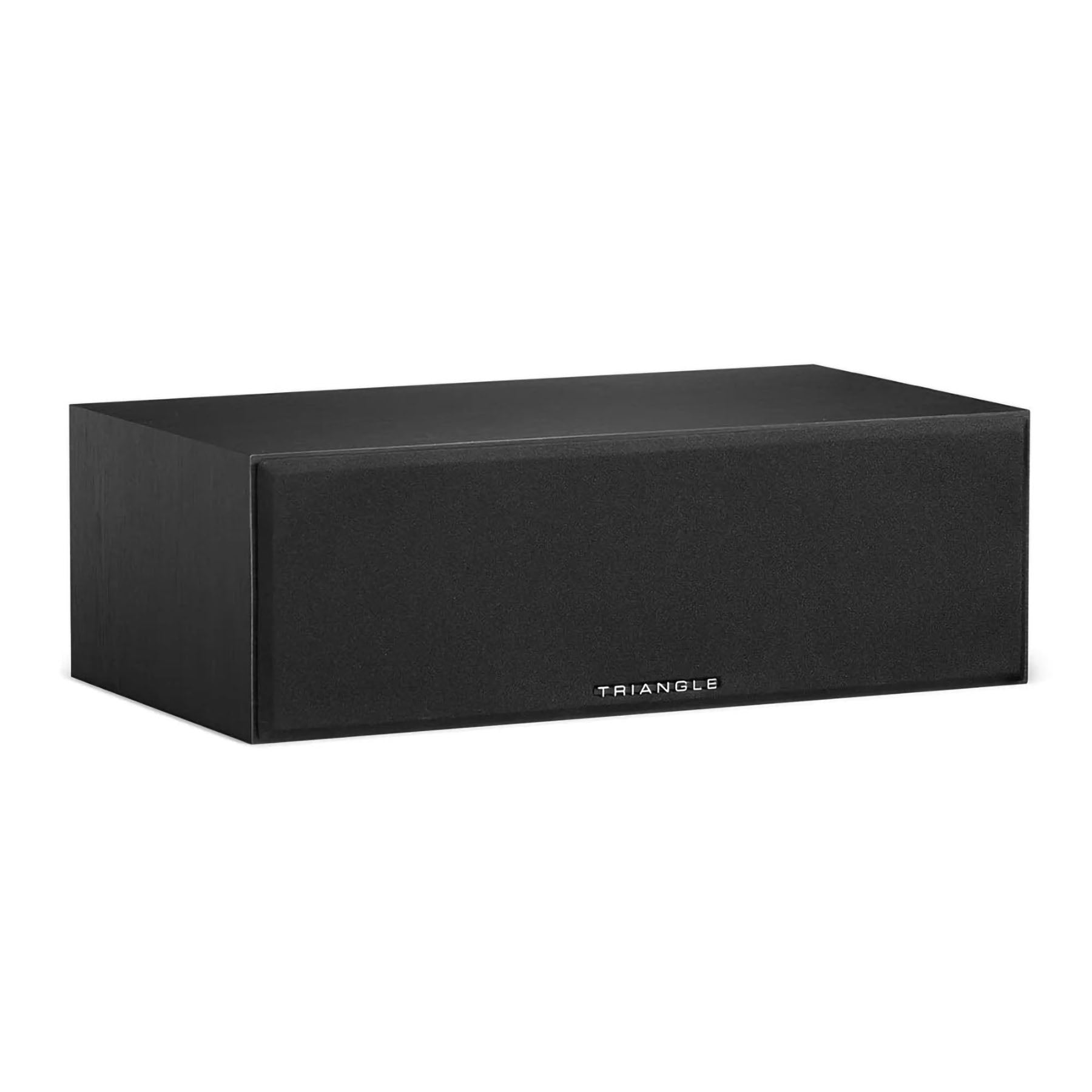

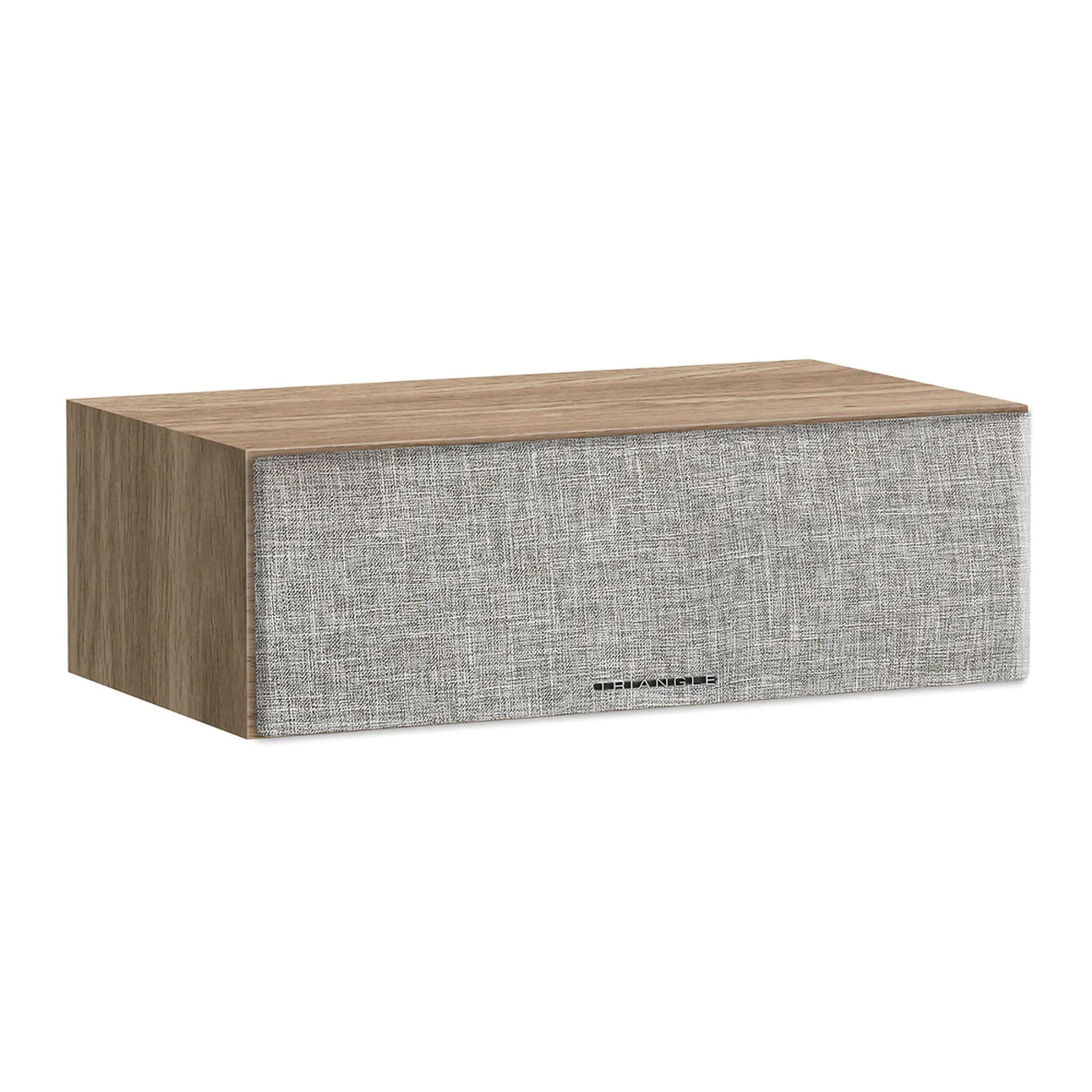

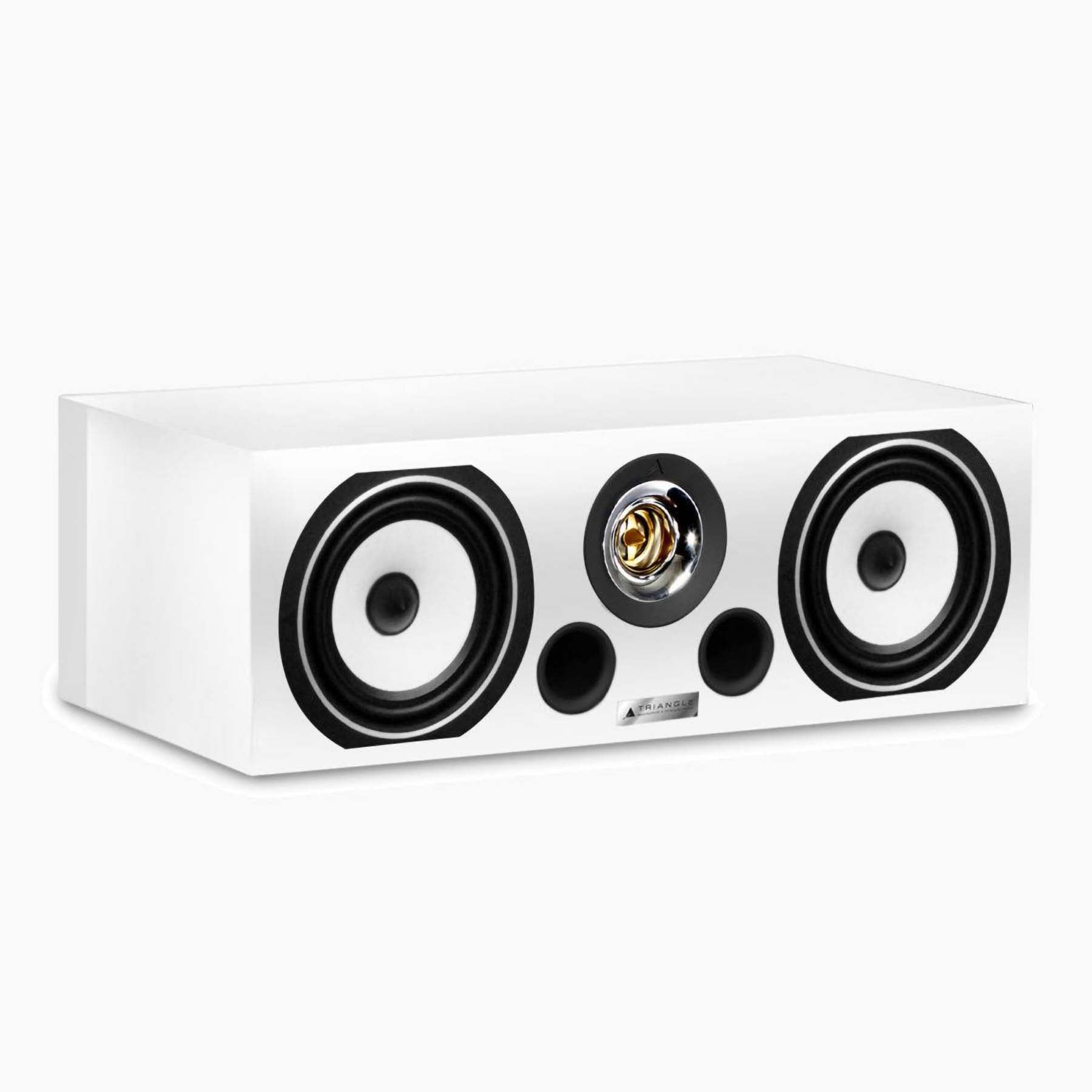

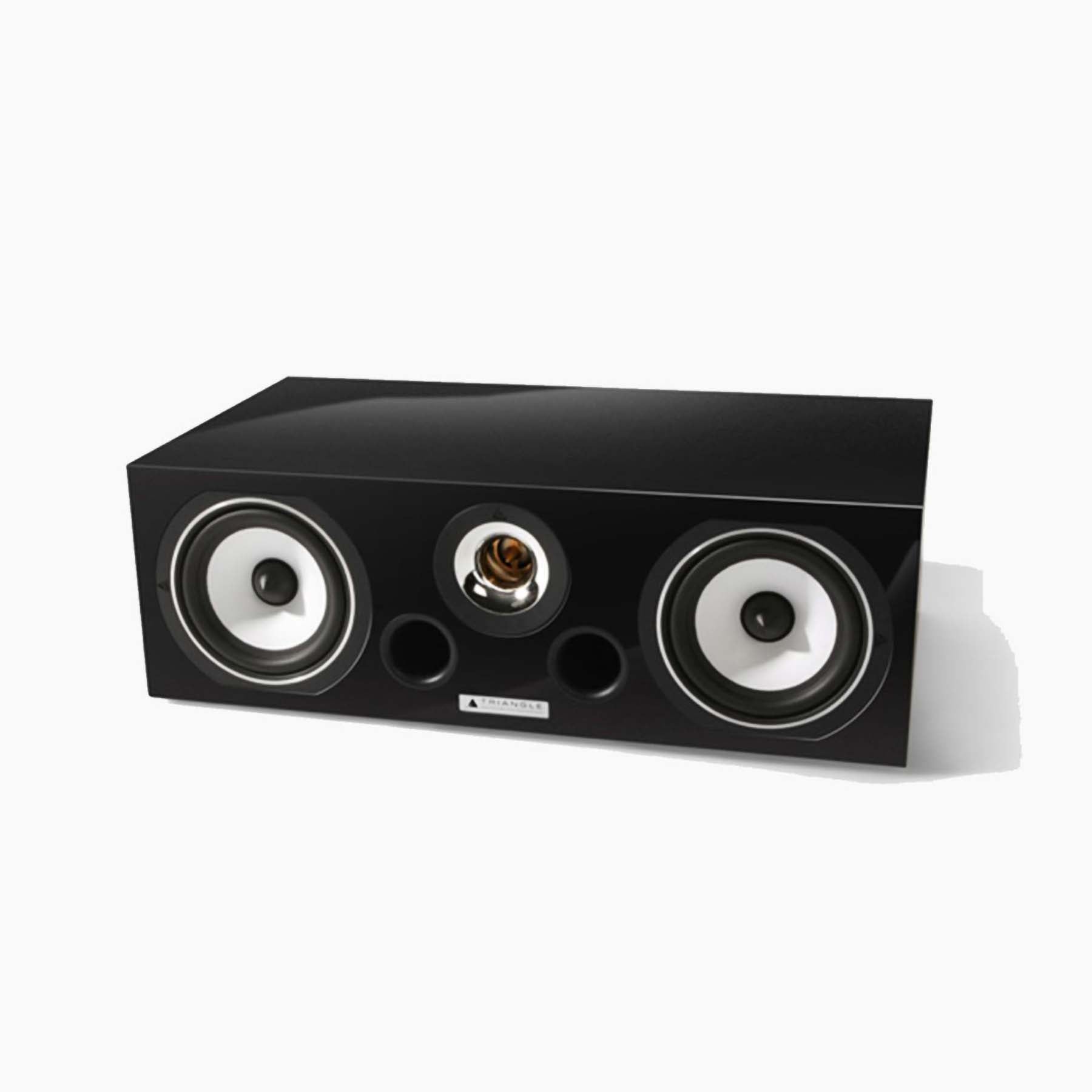

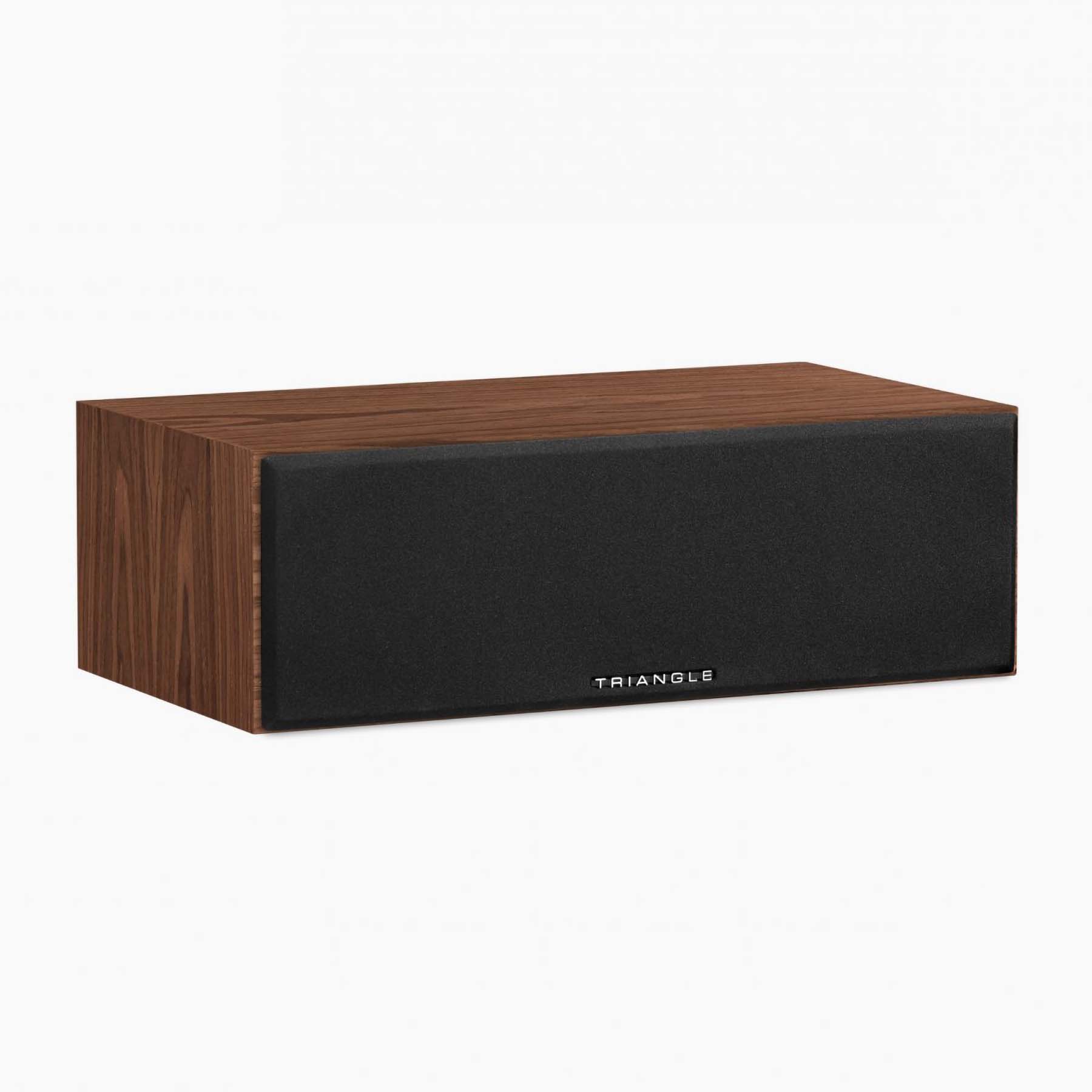

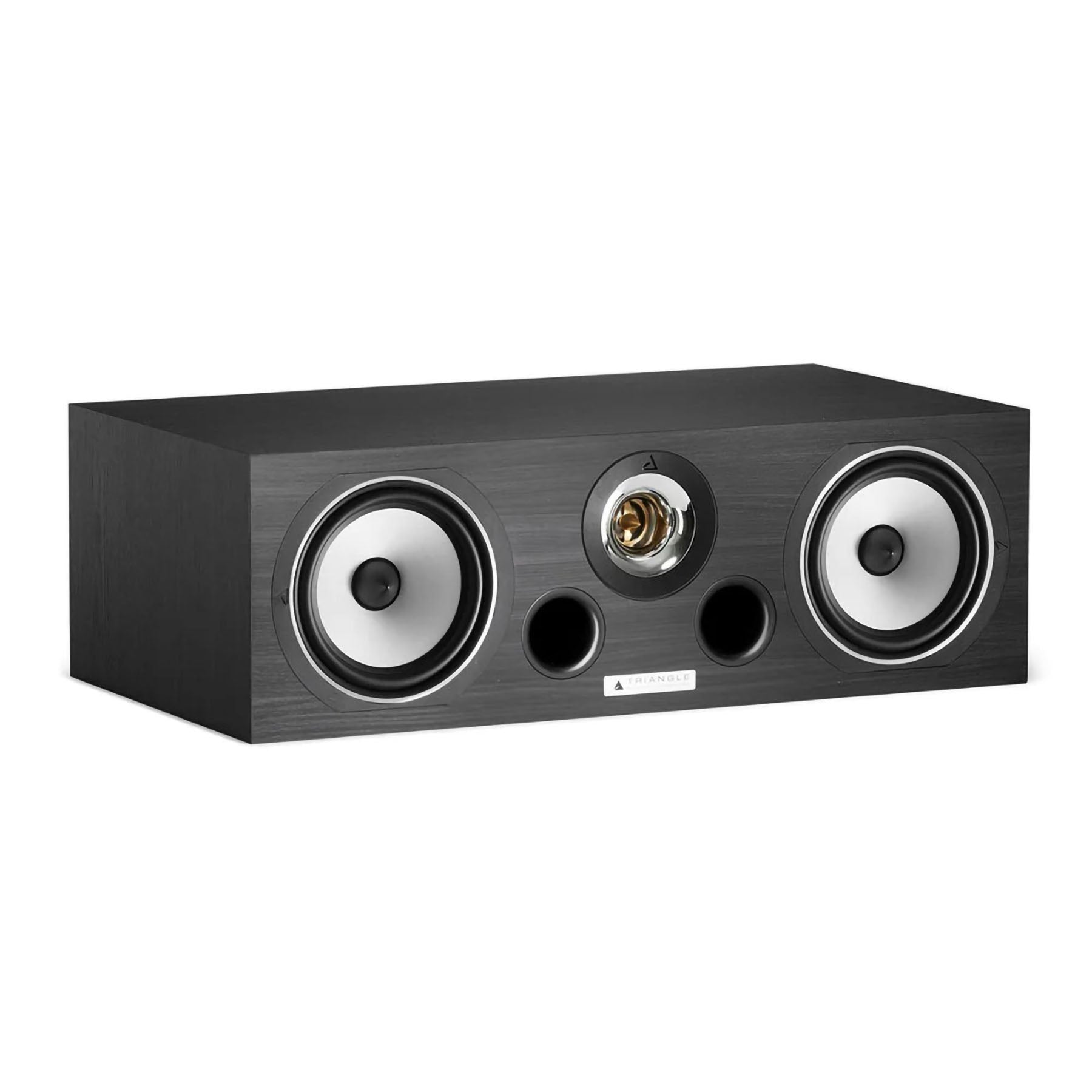

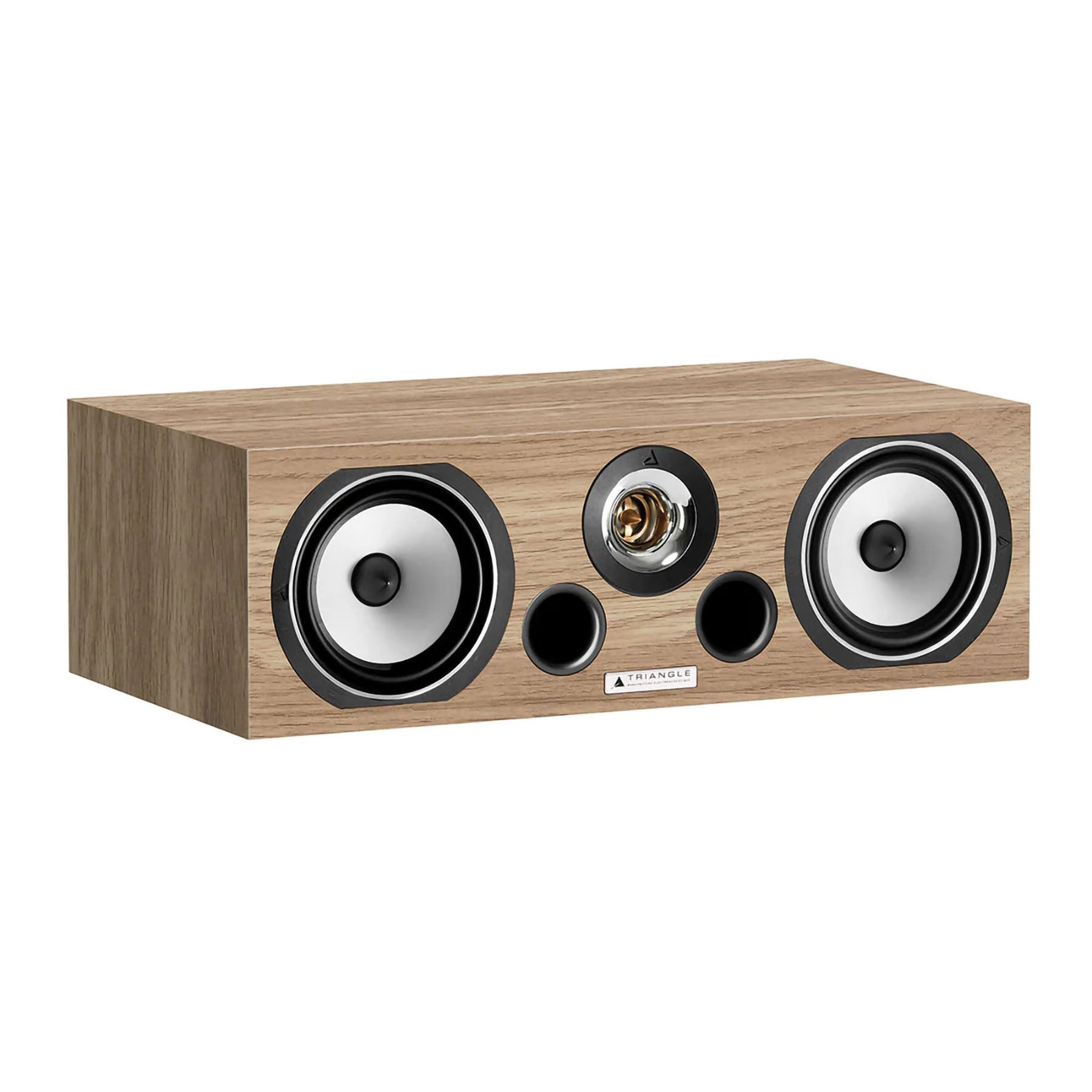

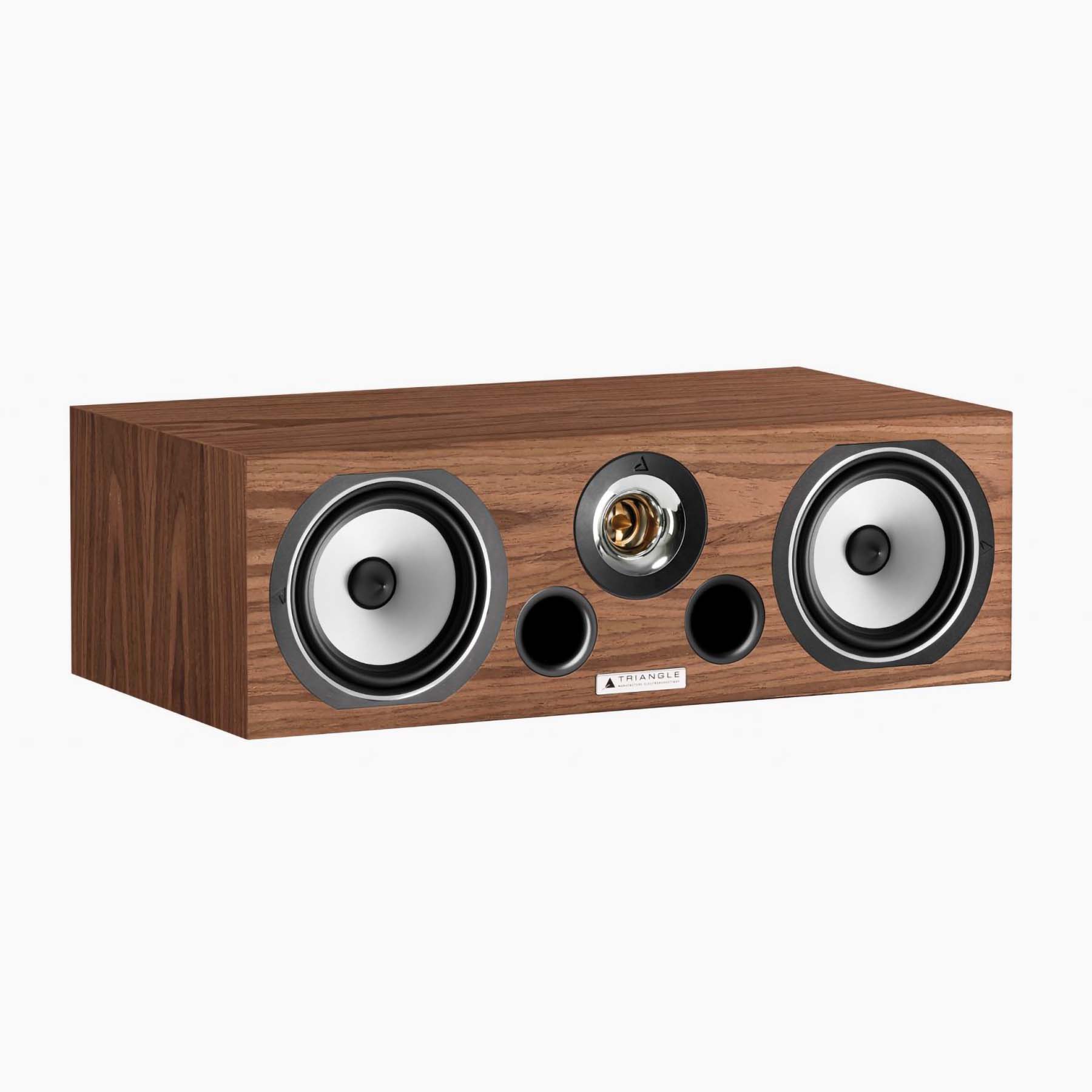

Home Cinema Center Speaker – Voce Ez
The Voce Ez is the center channel of the Esprit Ez. Designed to be located below your screen, the speaker reproduces human voices and mid-frequencies with incredible precision and dynamism.

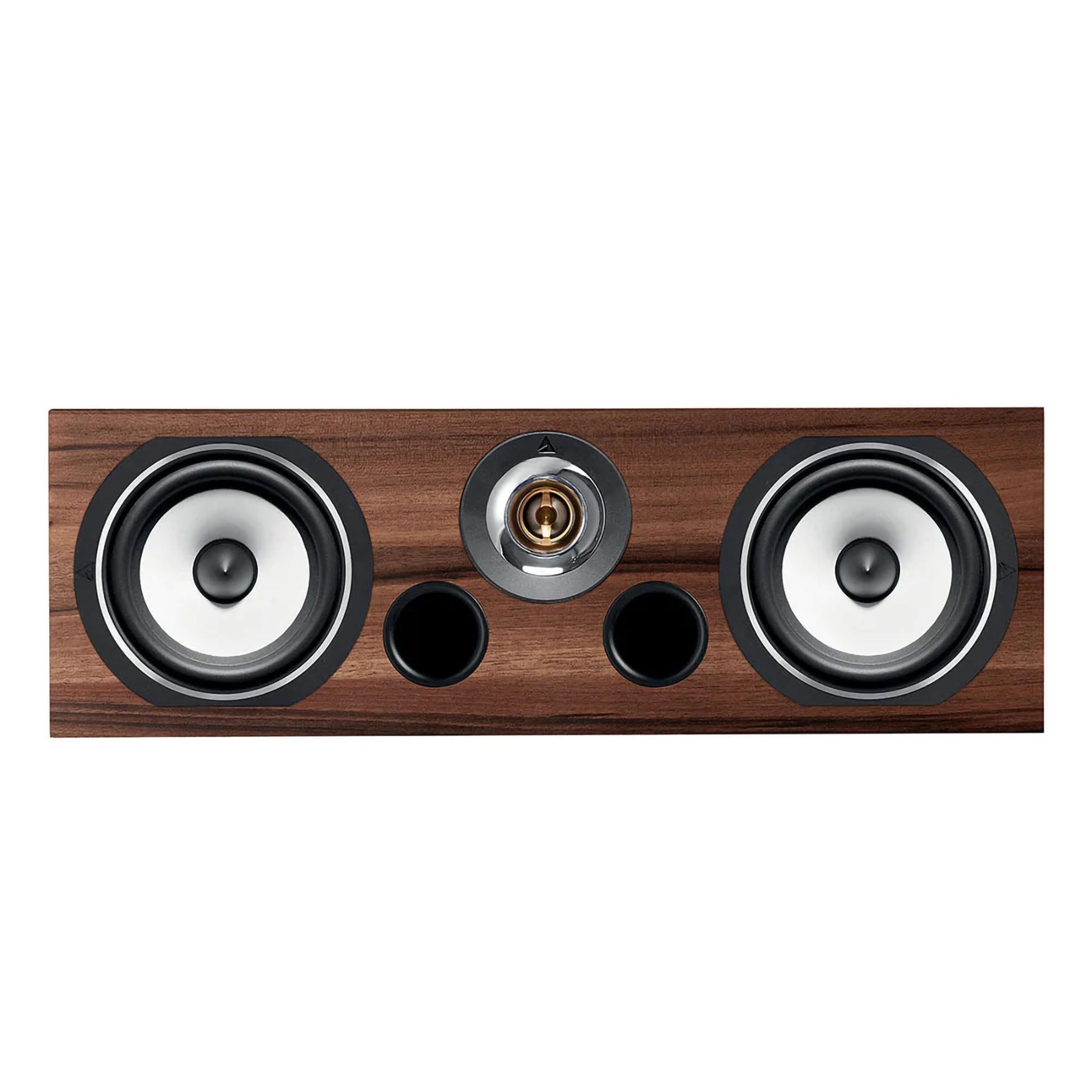

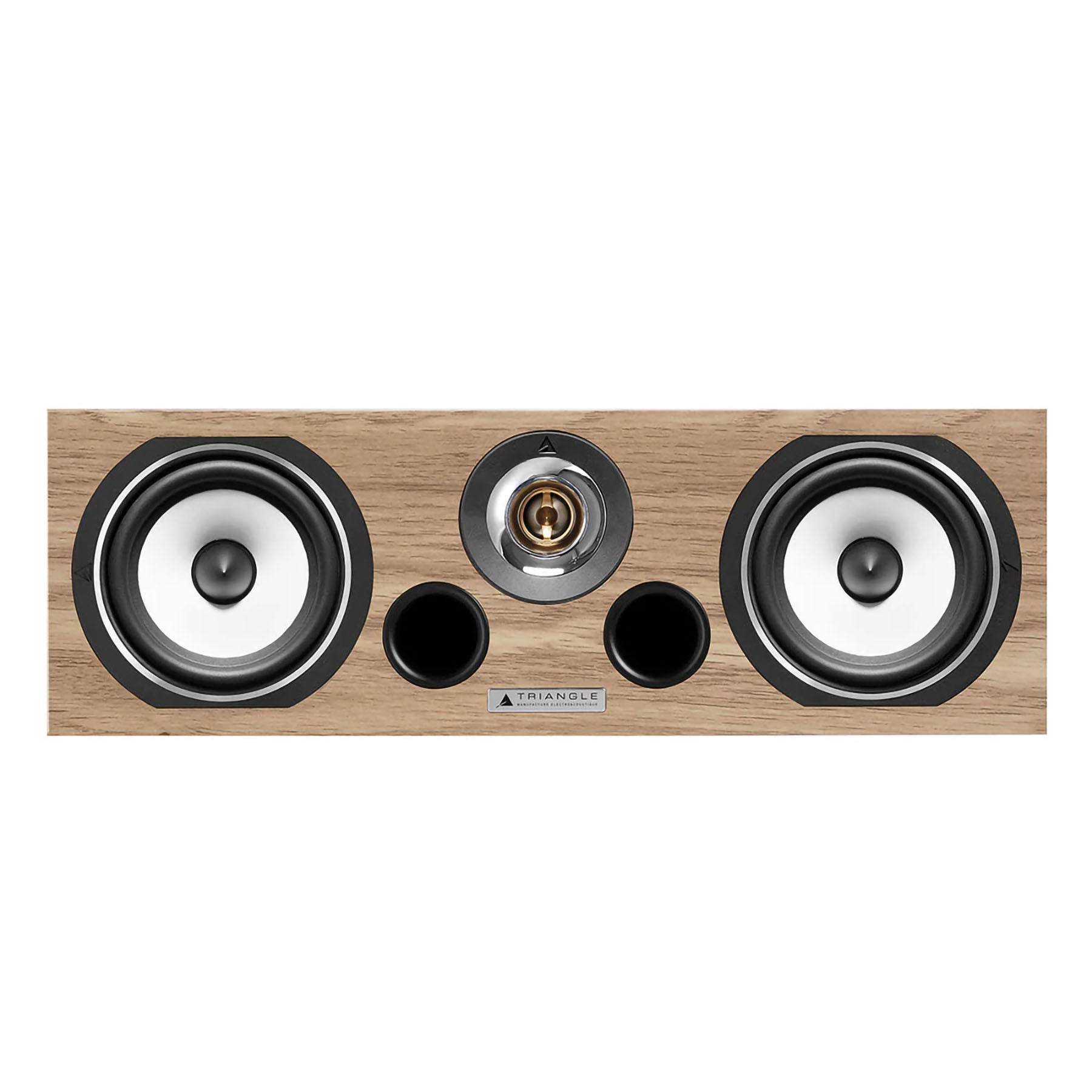

In order to ensure a perfect tonal balance and sonic uniformity in home theater, the center channel includes the same drivers as the rest of Esprit Ez range. It is equipped with one horn loaded tweeter and two 5-inches (13cm) midrange drivers, using the same natural cellulose membrane.
This set up is perfectly fitted for cinema set-up. The horn tweeter gives efficiency to the speaker and the phase plug located inside the tweeter guarantee a good dispersion of high frequencies all around the room. The natural paper diaphragm is perfect for reproducing the tone of human voices for more realism.
The voce Ez has a bass-reflex configuration with two ports in the front of the cabinet to extend lower frequency response and facilitate the speaker positioning in the room.
TWEETER TZ2550
A real TRIANGLE trademark of technology and performance, the TZ2510, is the latest incarnation of a titanium dome in combination with a compression chamber. This technology provides high efficiency with low distortion and excellent directivity.
Studies from the Esprit project helped to develop a new profile of the horn and also improved the phase plug. It reduces the directivity and provides almost the same sound level throughout the room.
We have developed a compact engine with high magnetic power, by using a neodymium ring combined with an absorption chamber. The latter has been designed in view of stopping the propagation of the back sound wave and of reducing distortions. As a result, the high-pitched frequencies offer a more natural listening experience.
The phase plug reduces the directivity of the high frequencies and assures an almost identic sound level throughout the room.
MIDRANGE DRIVER
Natural cellulose paper cone
Made out of 100% natural cellulose paper, white membrane is used to avoid any coloration. It is combined with a small pleat peripheral suspension to increase the emissive surface area.
Special attention has been paid to a number of details in the development of the midrange: the profile of the membrane, the shape of the suspension, and the new dust cap, are directly inspired from the MAGELLAN project.
With the new ANTAL Ez, the mid-range driver increases to 165 mm to provide an even more open sound.
WOOFER
Overlay of textile material and fiberglass
The MAGELLAN program showed the importance of how the bass driver influences the behaviour of the medium driver. We control the cone so it efficiently muffles any resonance in the «upper bass» area.
Fiberglass was selected for its excellent affect on the lower midrange / higher bass.An ESPRIT Ez innovation is the overlay of textile material and fiberglass, which improves the rigidity of the membrane.
The speaker is equipped with a new chassis, which quickly dissolves the heat generated by the coil, and with a double ferrite to improve sensitivity.
Speaker Type | Centre Channel Speaker |
---|---|
Speaker Special Features | 2-Way Speaker Design |
Enclosure type | Bass Reflex |
Frequency Response | 80 Hz - 22 kHz |
Power | 60 Watts |
Midrange Size mm | 2 × 130 mm |
Sensitivity | 91 dB |
Item Sold As | Single |
Warranty | 5 years |
Dimension
Product Dimension (H×W×D) | 168 × 510 × 290 mm |
---|---|
Product Weight | 9.45 Kg |
