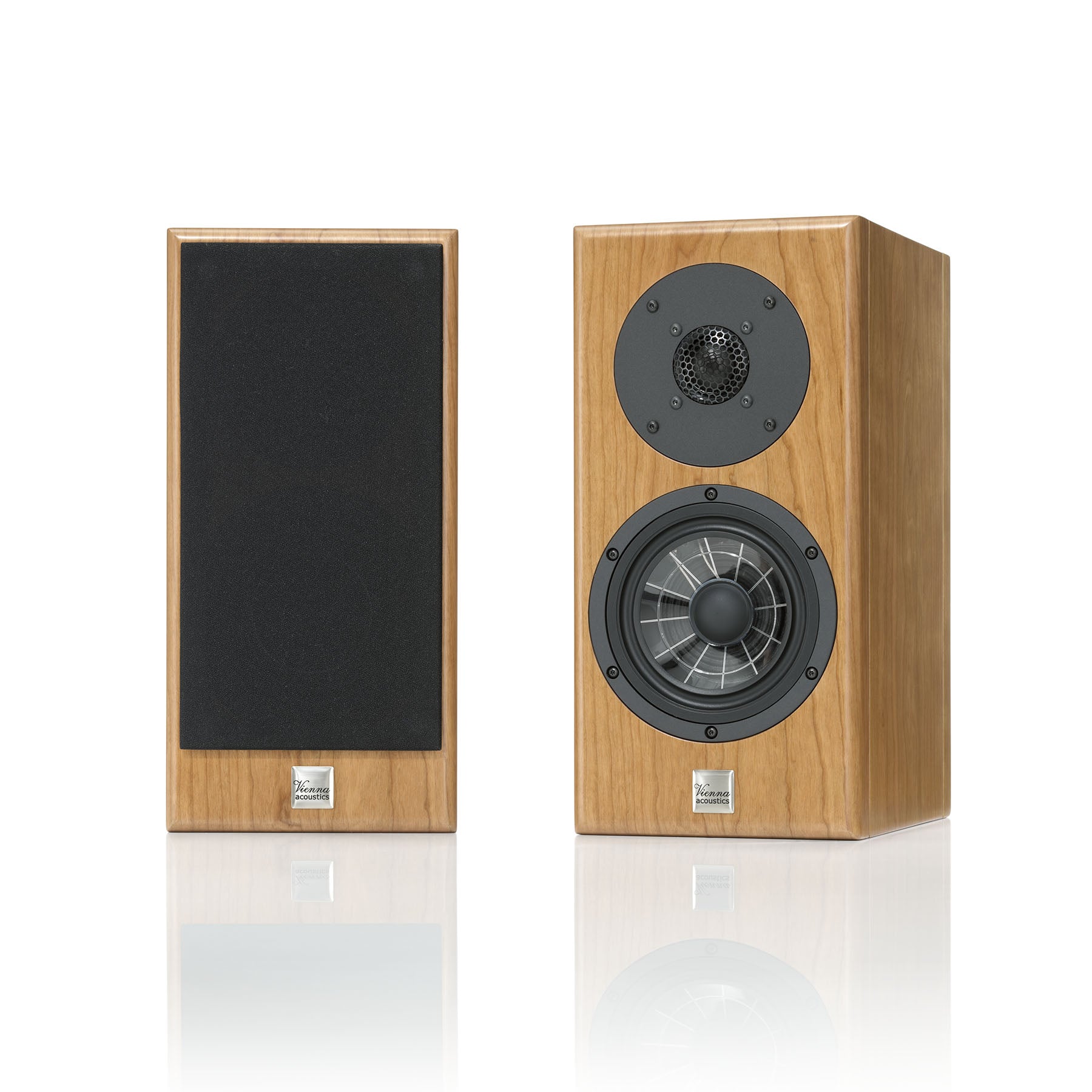

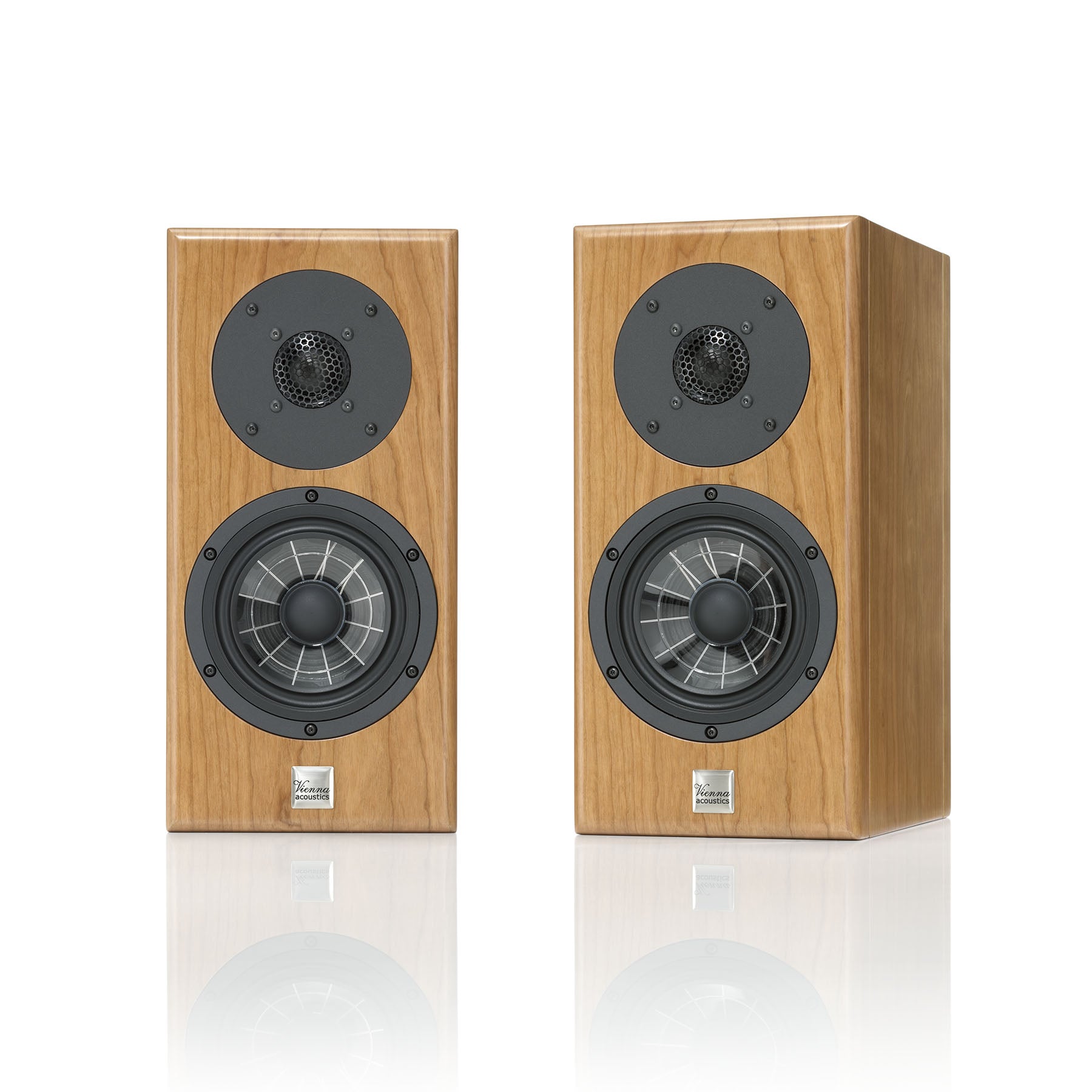

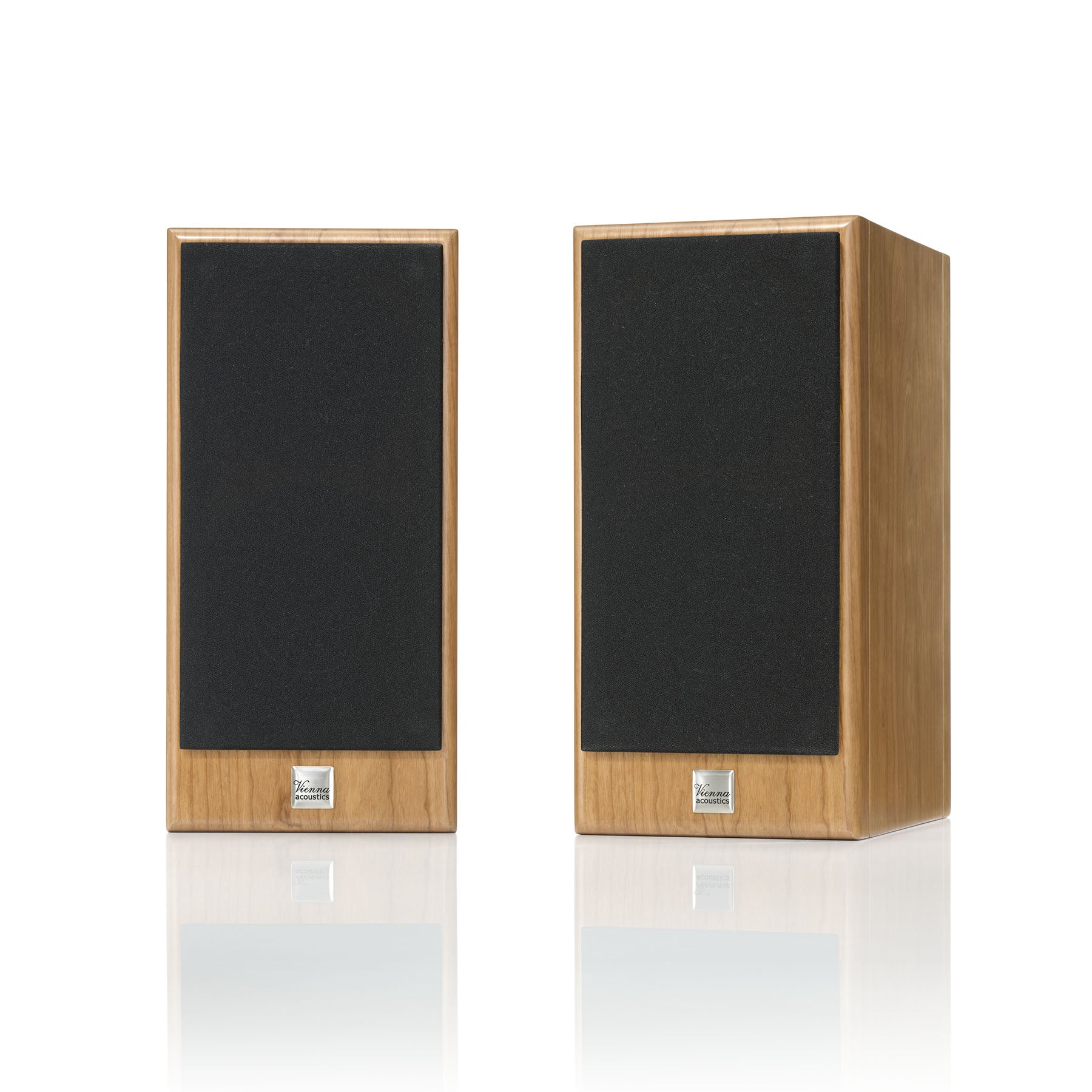

Haydn SE Signature

Dare the Borders towards the Impossible

Also for us at Vienna Acoustics it is still something magical when we first listen to Peter Gansterer’s new creations.

It’s excitement and eager expectancy – and sometimes, like in the case of HAYDN SE SIGNATURE, pure amazement.

We were fortunate and more than thankful to be able to release some beautifully recognized reference designs in the last years, all carefully and painstakingly developed – so why wouldn’t we dare the borders towards the impossible also with our smallest family member?

So what do you unpack?

HAYDN SE SIGNATURE features our patented spidercone X3P woofer, providing – by special placement of the ribs – increased output, extension and control. Dubbed X3P comprises three additional polymers in its composition, which allows the driver to provide an extraordinarily wide bandwidth, while possessing a level of inner detail, quietness, and control. Like its considerably grander companion, BEETHOVEN Concert Grand REFERENCE,

HAYDN SE SIGNATURE features our exclusive handcoated silkdome tweeter, which reveals even the slightest nuances with natural ease, while extending well down into the midrange regions.

A dedicated linear crossover layout, with the copper circuit paths carefully arranged, takes into account the potential for sympathetic and parasitic interactions among crossover components that may inject unwanted noise and distortions while allowing for more direct and efficient transfer of signal to the drivers which leads to a greater level of detail and purity.

Just as our most exclusive designs, HAYDN SE SIGNATURE is carefully built to true furniture grade standards and finished with the same outstanding veneer-wrapping technique, as well as with our true piano lacquer.

HAYDN SE SIGNATURE’s small size will fool you. Please close your eyes and you may find yourself in front of a symphonic orchestra, in the crowd up front stage, or in an intimate piano bar.

We see you there!

Impedance

• 4 Ohms

Frequency response

• 28 – 23000 Hz

Sensitivity

• 90 dB

Recommended Amplifier

• 50 – 400 Watts

Drive Units

• 7” Woofer (3) Composite Cone: Flat X4P Spidercone with recessed fabric center-cone
• 6” Midrange Composite Cone: Flat X4P Spidercone with recessed fabric center-cone

Tweeter

• 1.1″ Hand Coated Vienna Acoustics Silk Dome

Bass System

• Bass Reflex

Bass Function

• Impulse Optimizing QB 3 (Quasi-Butterworth)

Crossover Components

• Polypropylene Capacitors, 1% tolerance, Coils 0,7% tolerance, Midrange/Tweeter Section Air Coils, Special Powder Core for Bass Section, Metal Film Resistors 1% tol., Inductance Free

Crossover Function

• 3-way, 6 dB and 12 dB Bessel

Weight per Pair

• 75 kg / 165 lbs

Dimensions (W x H x D) inches

• 8,1 x 44,5 x 15 (without base assembly)
• 12,1 x 46,9 x 15 (with base assembly)

Dimensions (W x H x D) mm

• 205 x 1130 x 380 mm (without base assembly)
• 307 x 1191 x 380 mm (with base assembly

Finishes

• Premium Rosewood, Cherry, Piano Black, Piano White
