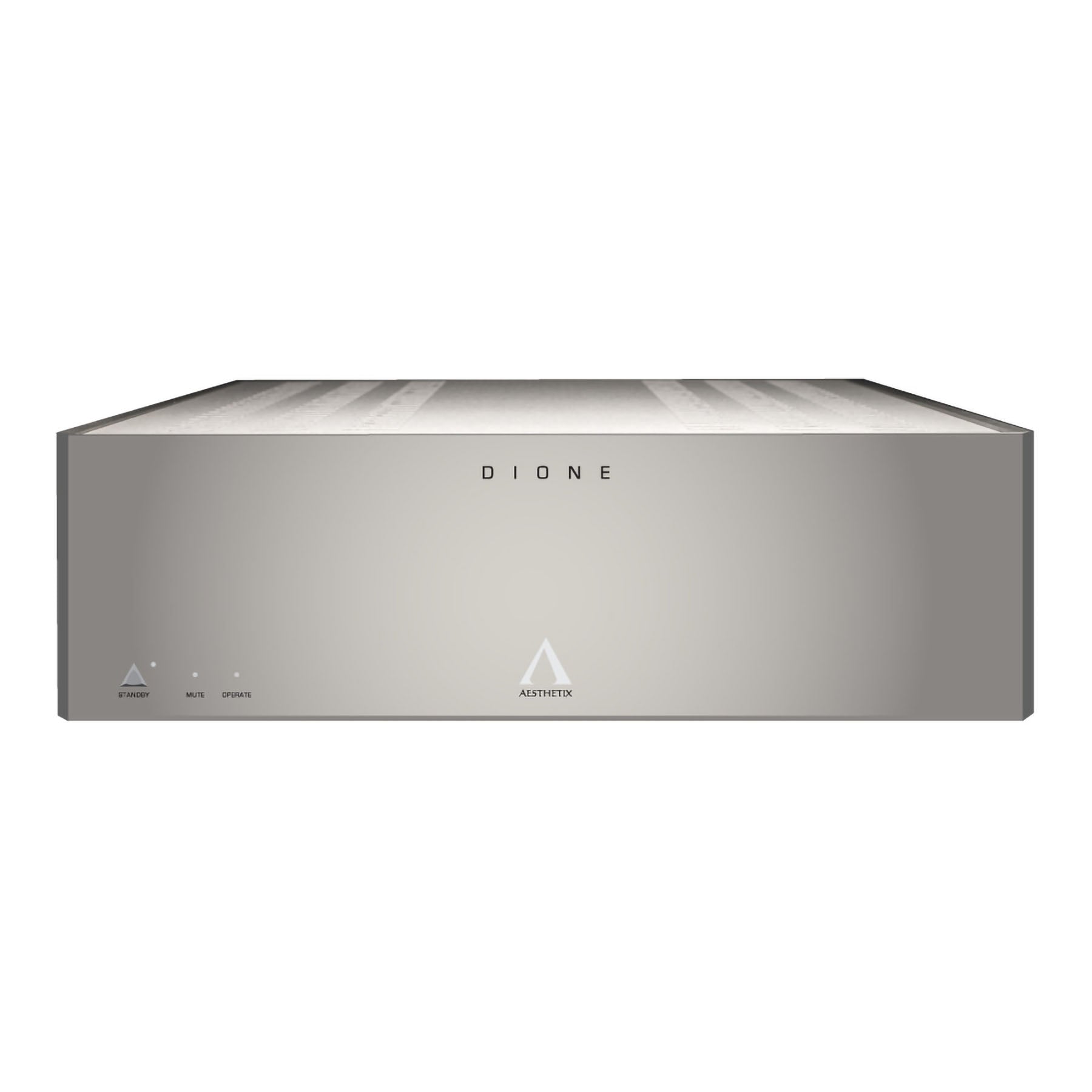

Aesthetix Dione Hybrid Stereo Power Amplifier
USAAesthetix Dione
Hybrid Stereo Power Amplifier
INSPIRED BY THE BEST
Aesthetix is proud to introduce the Dione two-channel hybrid power amplifier featuring zero feedback and differential balanced-bridged outputs. The hybrid design draws inspiration from award-winning Atlas power amplifier and Mimas integrated amplifier. Dione offers a bipolar output stage, bipolar driver stage, fet input stage and a vacuum tube gain stage.
THOUGHTFUL DESIGN
The optional discrete internal crossover module allows separate crossover inputs. All inputs have both single-ended and balanced jacks. The low-flux transformer is custom-wound in-house and supplies high and low current power to all individual discrete regulation circuits throughout the Dione. A stainless steel transformer cover prevents magnetic fields from interacting with sensitive audio circuits.
HIGHEST QUALITY DETAILS
The vacuum tube voltage gain stage uses Roederstein MK4 plate load resistors, high-grade polypropylene film coupling capacitors from Reliable Capacitor, and silver/ceramic tube sockets. All XLR connectors are Neutrik. Dione’s stunning machined aluminum casework echos the beautiful lines and proportions of Mimas and Pallene.
| Item | Stereo Power Amplifier |
|---|---|
| Power Output | 160wpc channel into 8 ohms, 320wpc into 4 ohms |
| Inputs | Balanced and single-ended jacks for all inputs 1 MΩ balanced input impedance |
| Outputs | One balanced-bridged speaker output per channel |
| Tubes | One 6DJ8 / 6922 per channel |
| Options | High pass first-order crossover with 8 rear panel selectable crossover frequencies |
| Standby Mode | Tubes are turned off but solid-state circuitry remains powered |
| Dimensions | 434 (W) x 140 (H) x 449 (D) mm |
| Weight | 20 kg (44 lbs) Boxed 22.7 kg (50 lbs) |
| Finish | Black or Silver |
| Warranty | 3 years, non-transferable |
