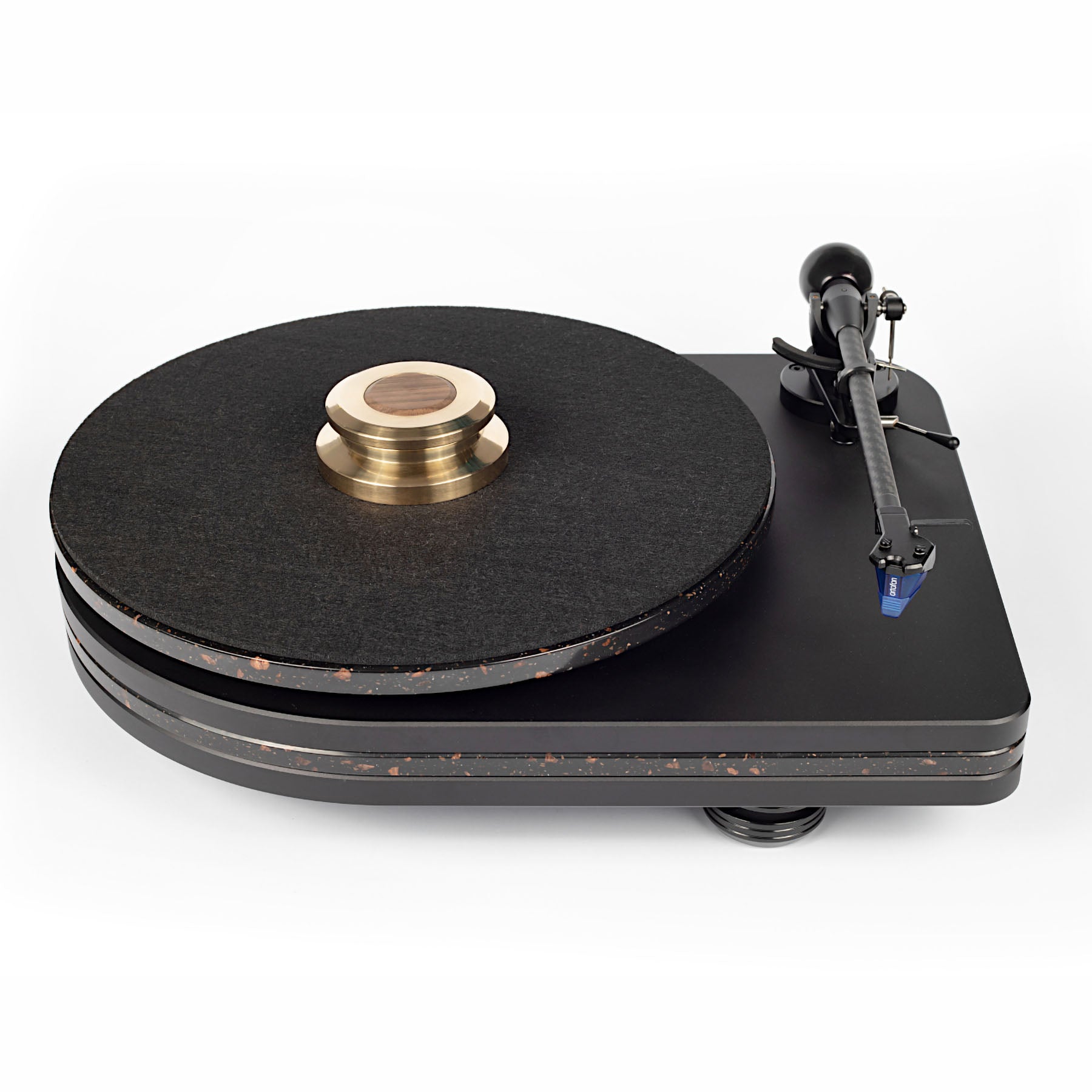

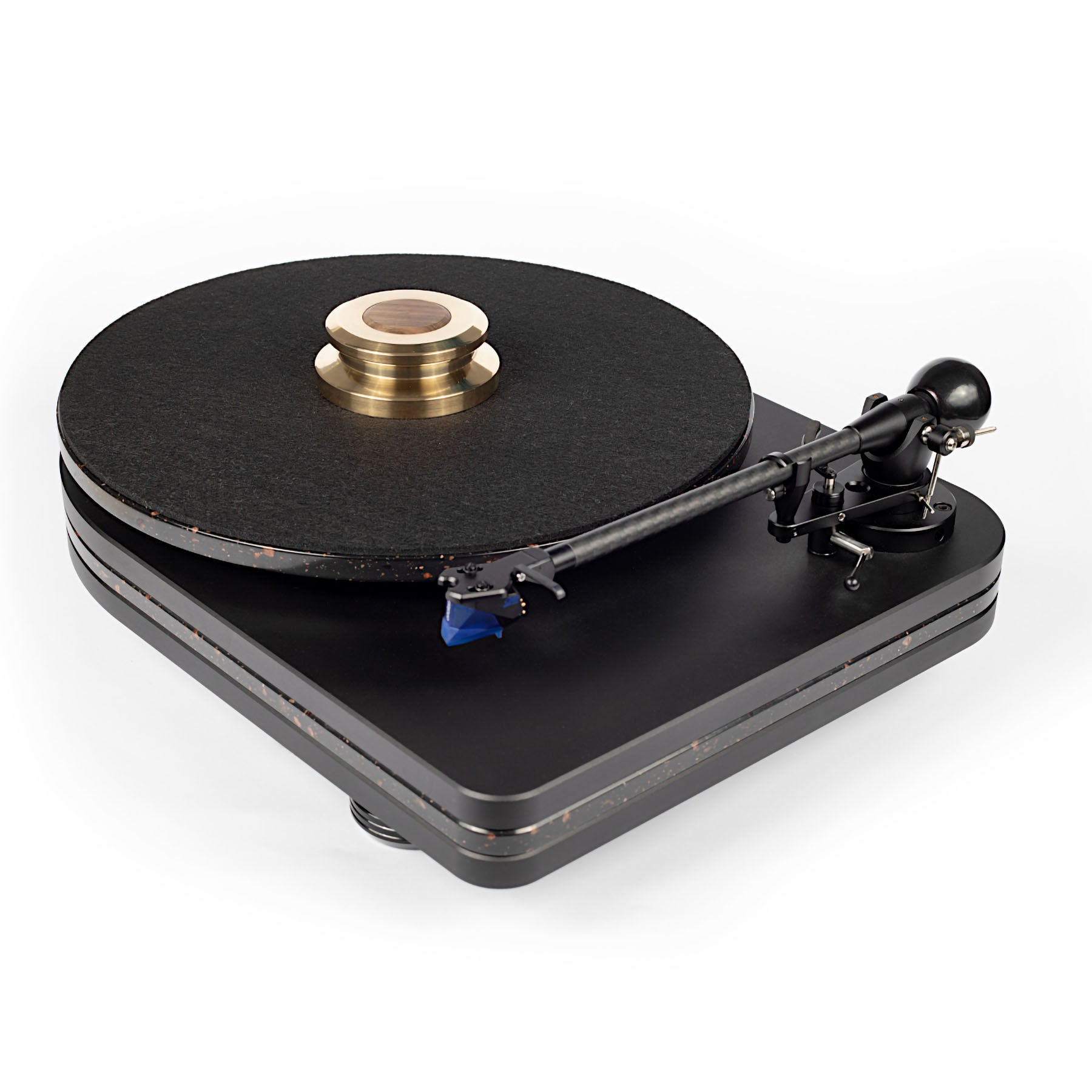

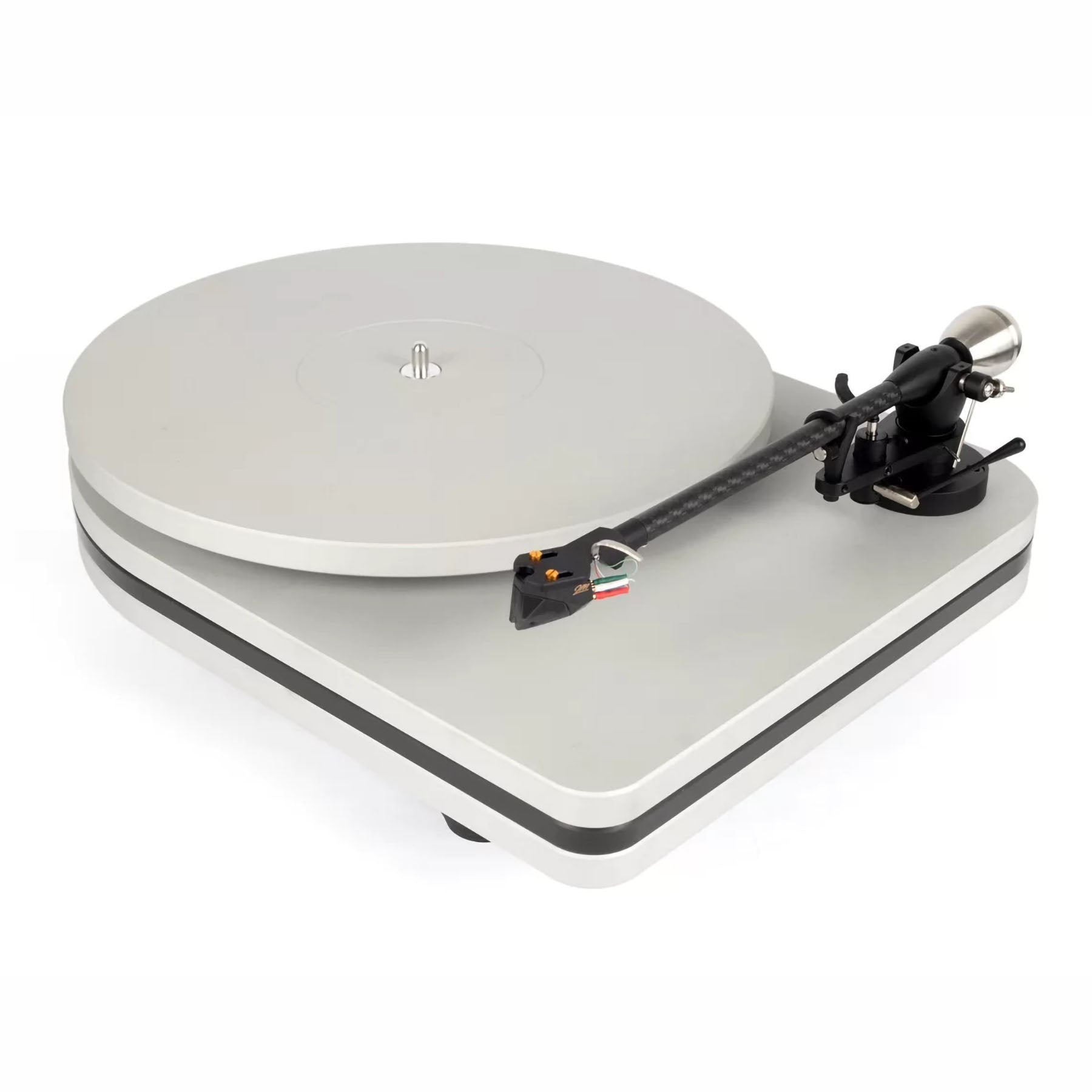

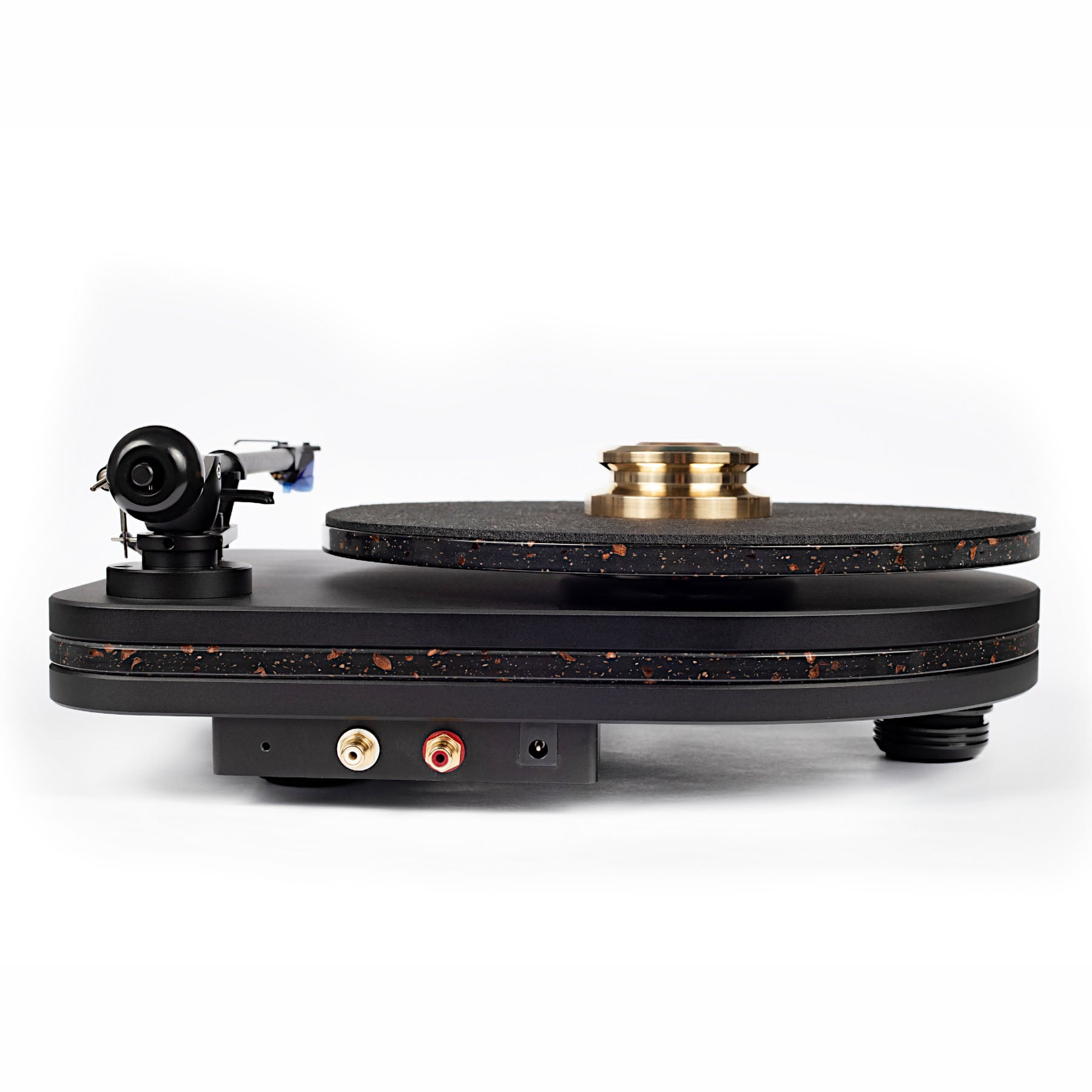

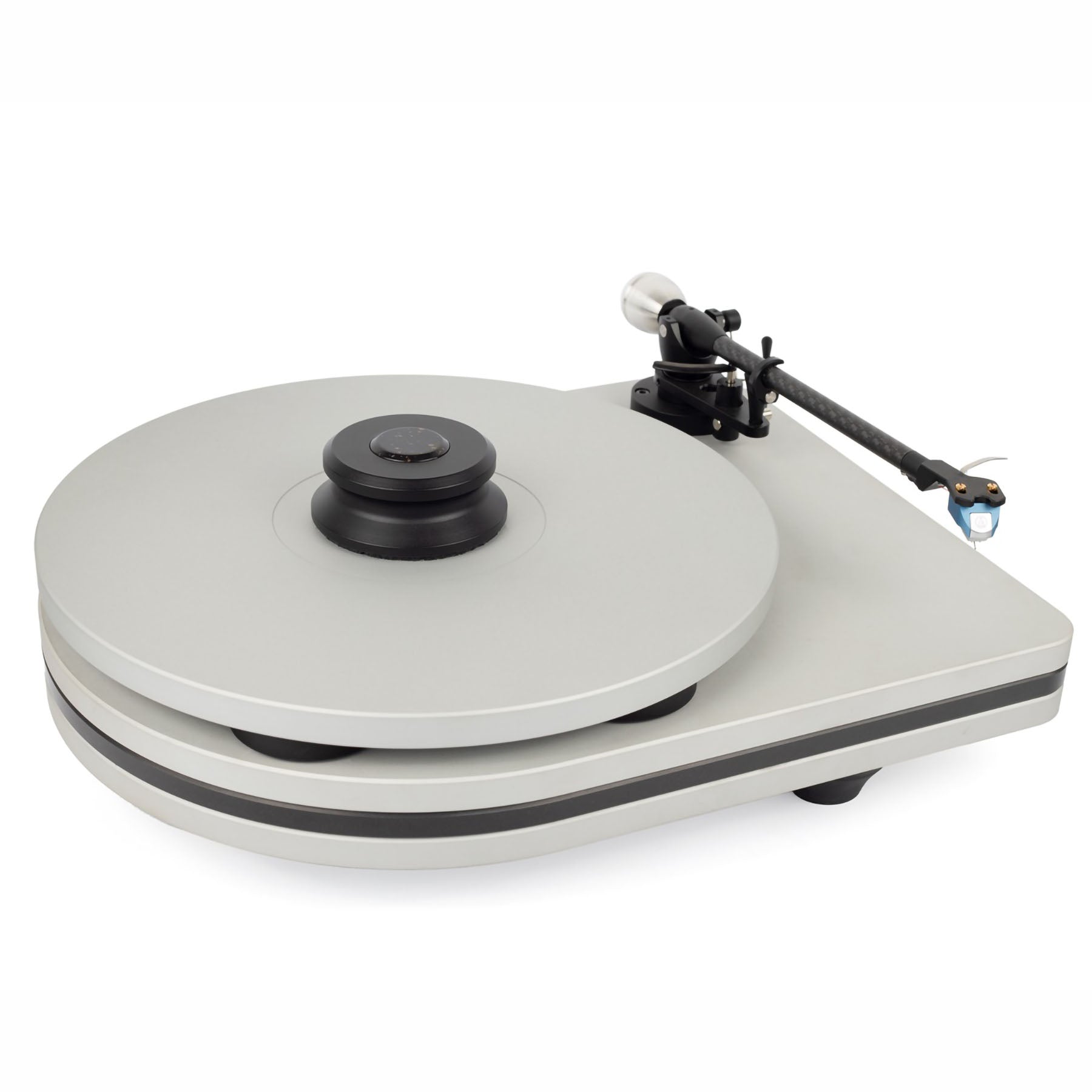

Auris Bayadere 3

Turntable with a 9’’ W9 Carbon/Alu tonearm

Elevate Your Musical Experience with the Auris Bayadere 3 Turntable

The name “Bayadere” (from the Portuguese word bailhadera) is an European term for Devadasi, female dancers from India clothed in bright costumes, usually made out of striped fabric. The Bayadera's were women chosen to be married to deities and become temple dancers, in fact, according to the indian temple worship rules, dance and music are vital aspects of the daily worshiping rituals for temple deities.

Bayaderes were called akhanda saubhagyavati ("women never separated from good fortune"), they were treated with due respect and often presented with gifts. Their main duties were to take care of a temple and learn classical Indian dances, which they would perform at temple rituals.

Inspired by the fabric of the Devadasi’s dresses, the Auris Bayadere 3 is a powerful music temple on his own, stable and elegant with an exceptional design that combines layers of high quality aluminum and dark shiny Kerrock®, reminding the colored stripes of the indian silk.

Bayadere 3 is a well balanced turntable, it’s main platter is mounted on leveling feet, very precisely shaped by our designers for a true isolation from vibration and, in order to further reduce the vibrations, we integrated the main bearing in a case isolated from the base with a set of rubber rings. The main bearing is manufactured using the highest quality stainless steel with an incorporated bronze cylinder mounted with great precision in order to make the platter spin with the minimum resistance. There is a steady support of the main bearing consisting in a ceramic ball and a Widia tile hardness over 80 Rockwell, which makes the turntable work noiselessly and last longer with very little amounts of lubricant.

Taking into account the experience of many turntable manufacturers, we decided to opt too for a synchronous AC motor, which is distinguished by its speed attitude and stability; it is also possible to upgrade the Bayadere 3 with an electronic speed control. Conditioned by the frequency of the power grid, the only difference between our Bayadere 3 Europeans and U.S.A versions is in the pully’s diameter.

For our Bayadere 3 we recommend the W9 tonearm – a 9’’ gimbal tonearm made out of carbon fiber and milled aluminum. The W9 tonearm moves thanks to six ball bearings. The arm wand is implanted in an aluminum joint, complete with an antiskating system hovering on two ball bearings, with ultra low friction and VTA adjustment of 10mm. The W9 is wired with the Van den Hull® wires.

Design

Bayadere 3 is a well balanced turntable, it’s main platter is mounted on leveling feet, very precisely shaped by our designers for a true isolation from vibration and, in order to further reduce the vibrations, we integrated the main bearing in a case isolated from the base with a set of rubber rings. The main bearing is manufactured using the highest quality stainless steel with an incorporated bronze cylinder mounted with great precision in order to make the platter spin with the minimum resistance. There is a steady support of the main bearing consisting in a ceramic ball and a Widia tile hardness over 80 rockwell, which makes the turntable work noiselessly and last longer with very little amounts of lubricant.

Taking into account the experience of many turntable manifacturers, we decided to opt too for a synchronous AC motor, which is distinguished by its speed attitude and stability; it is also possible to upgrade the Bayadere 3 with an electronic speed control. Conditioned by the frequency of the power grid, the only difference between our Bayadere 3 european and U.S.A versions is in the pully’s diameter.

W9 Carbon/Alu Tonearm

The Bayadere 3 comes equipped with the W9, a 9'' gimbal tonearm meticulously crafted from carbon fiber and milled aluminum. This exceptional tonearm features six ball bearings, ensuring smooth and precise movement. The armwand is ingeniously implanted in an aluminum joint, complete with an anti-skating system hovering on two ball bearings. With ultra-low friction and a VTA adjustment of 10mm, the W9 tonearm guarantees optimal performance. Additionally, it is wired with Van den Hull® wires, further enhancing the audio quality.

Sub Platter

Experience unrivaled stability and speed accuracy with the Bayadere 3's advanced sub platter design. Crafted from high-quality aluminum, the sub platter features a chrome and ground shaft that precisely and reliably transmits stable speed to the main platter, eliminating any slippage. The plate resting on the ball bearing is constructed from cemented carbide metal, renowned for its incredible hardness rating of up to 90 on the Rockwell scale. This exceptional hardness ensures optimal performance and longevity, allowing you to enjoy your vinyl collection with flawless precision.

Bearing Housing

In our unwavering pursuit of excellence, the Bayadere 3 incorporates a bronze main hub central bearing in its design. This superior material choice offers numerous benefits, including a longer service life compared to brass alternatives. The bronze bearing reduces stress on the bearing itself, further enhancing its durability and ensuring a consistent and reliable performance for years to come. With the Bayadere 3, you can immerse yourself in the music, knowing that every detail is faithfully reproduced with unwavering accuracy.

Isolation

We understand the significance of a stable and vibration-free environment for optimal audio performance. The Bayadere 3 is equipped with a special rubber compound that guarantees exceptional stability and effectively reduces vibrations. Additionally, the height adjustment feature allows you to bring the plinth into a perfectly horizontal position, further enhancing stability and eliminating unwanted disturbances. With this meticulous attention to isolation, you can indulge in a pure and immersive listening experience, where every note resonates with clarity and precision.

Motor and Speed Control

Taking inspiration from the collective wisdom of turntable manufacturers, we have opted for a synchronous AC motor known for its speed accuracy and stability. The Bayadere 3 can also be upgraded with an electronic speed control, allowing for further customization. The only difference between the European and U.S.A. versions of the Bayadere 3 lies in the pulley's diameter, accommodating the respective power grid frequencies.

Elevate your audio journey with the Auris Bayadere 3, where advanced engineering and refined craftsmanship converge to deliver an unparalleled turntable experience. From the precision of the sub platter and bearing housing to the meticulous isolation design, every aspect of the Bayadere 3 is engineered to ensure optimal performance, durability, and sonic excellence. Rediscover the true essence of your vinyl collection and let the Bayadere 3 transport you to a realm of musical enchantment.

User Manual

EN

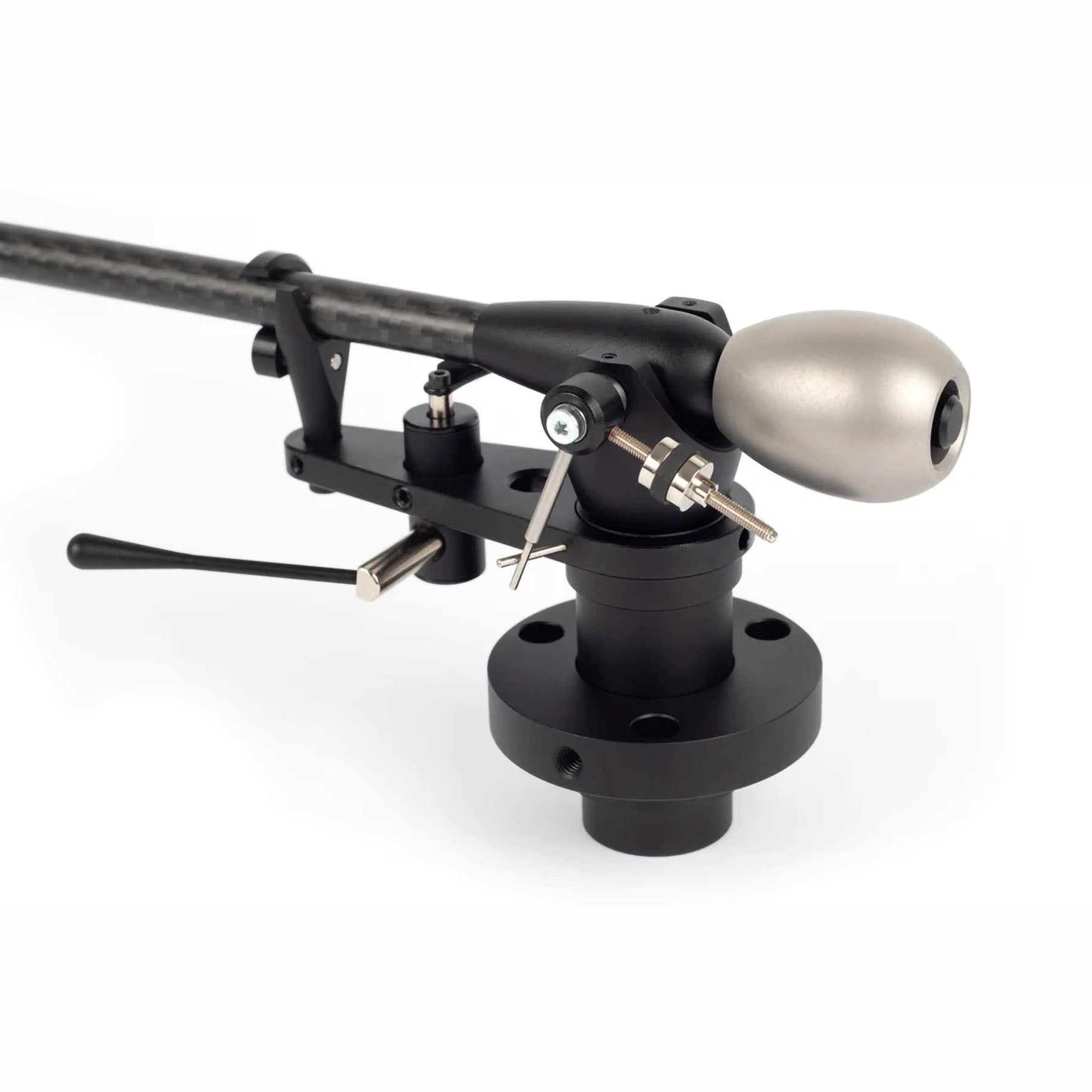

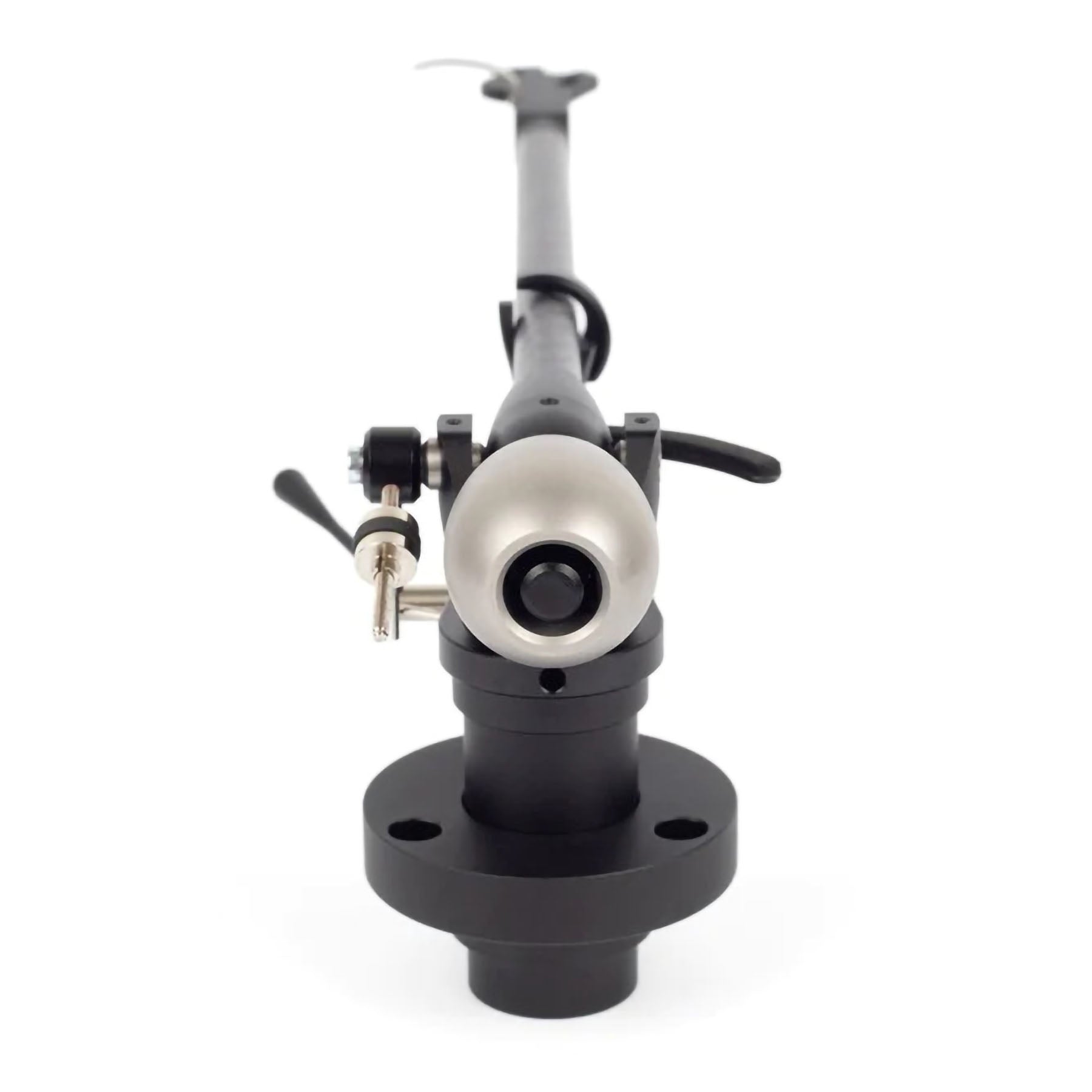

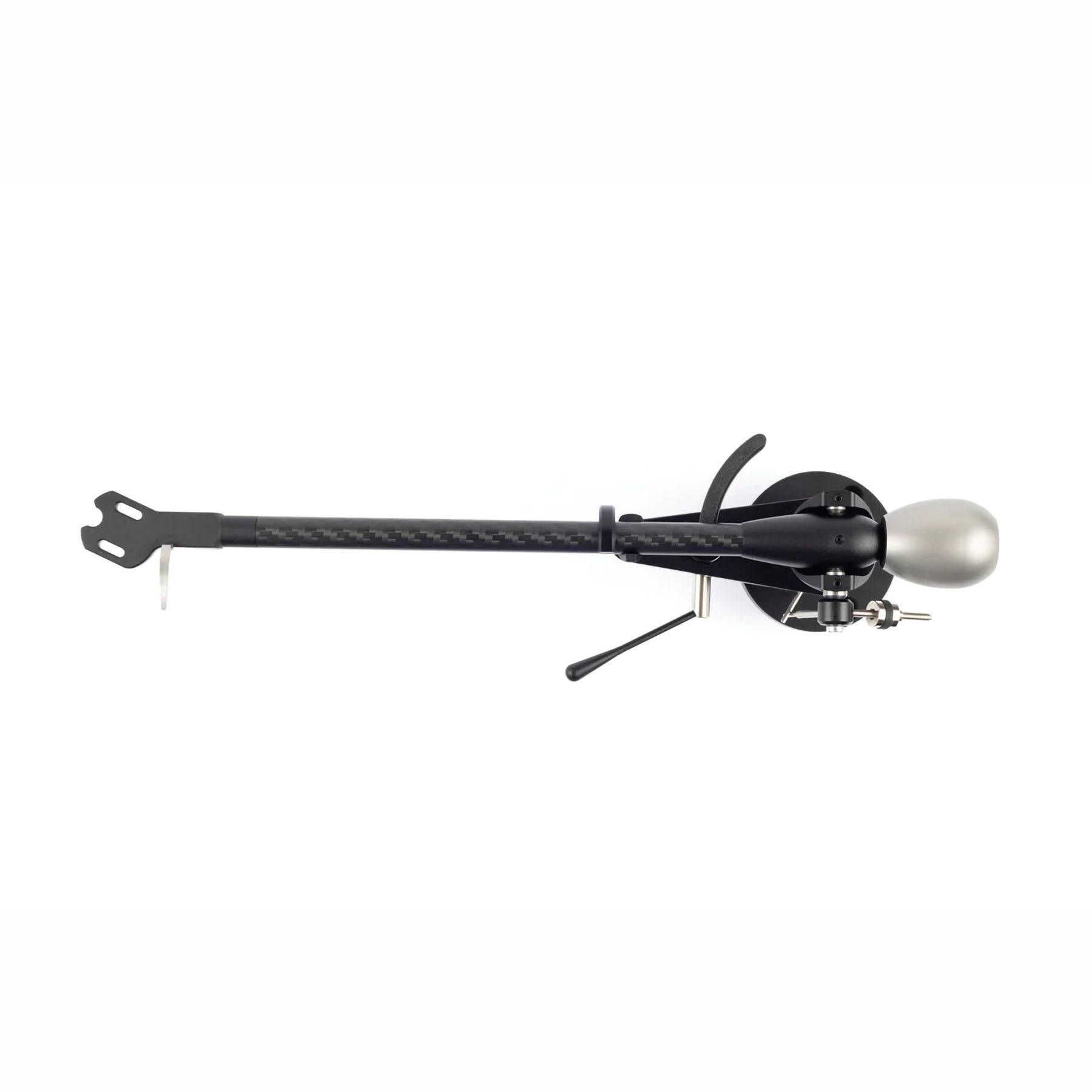

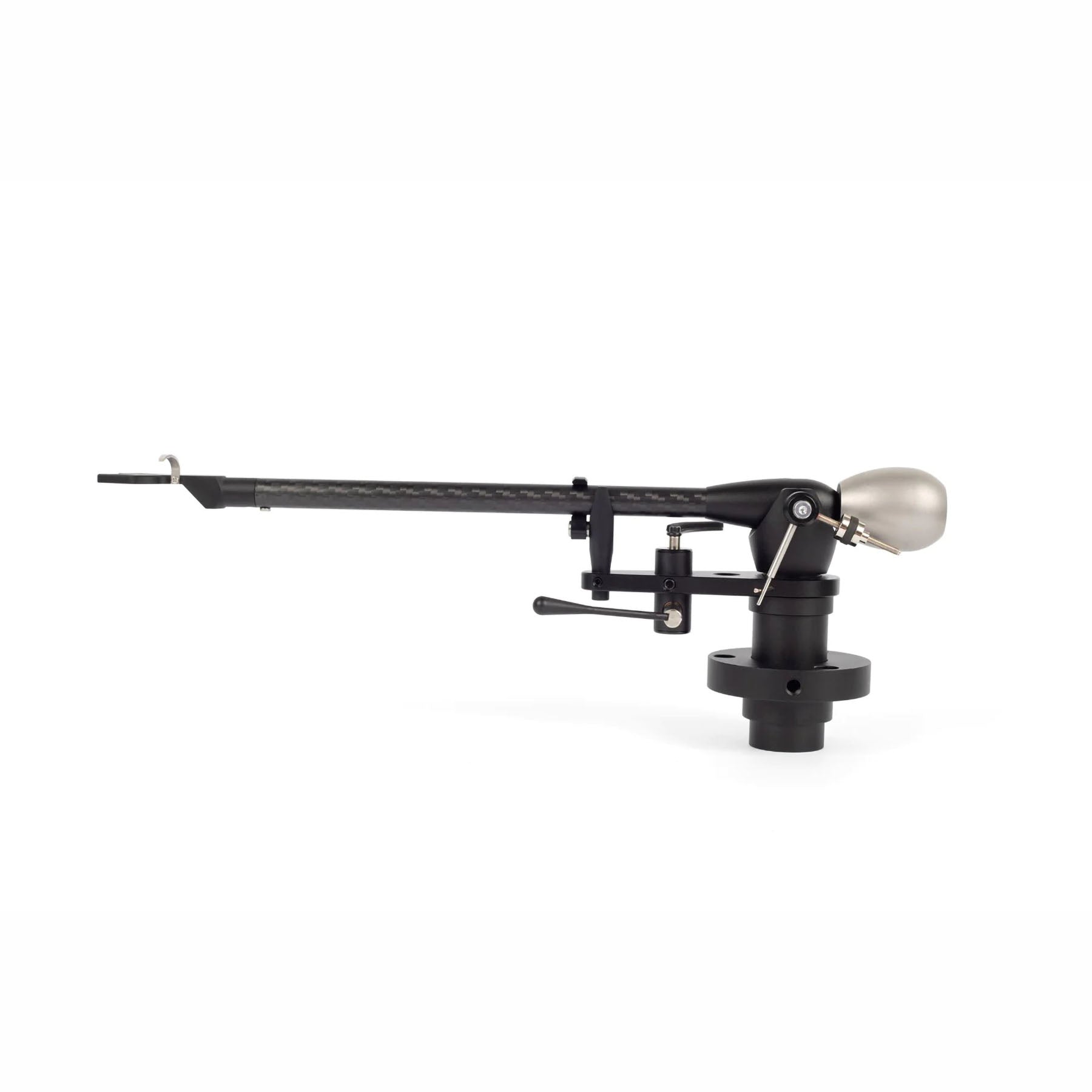

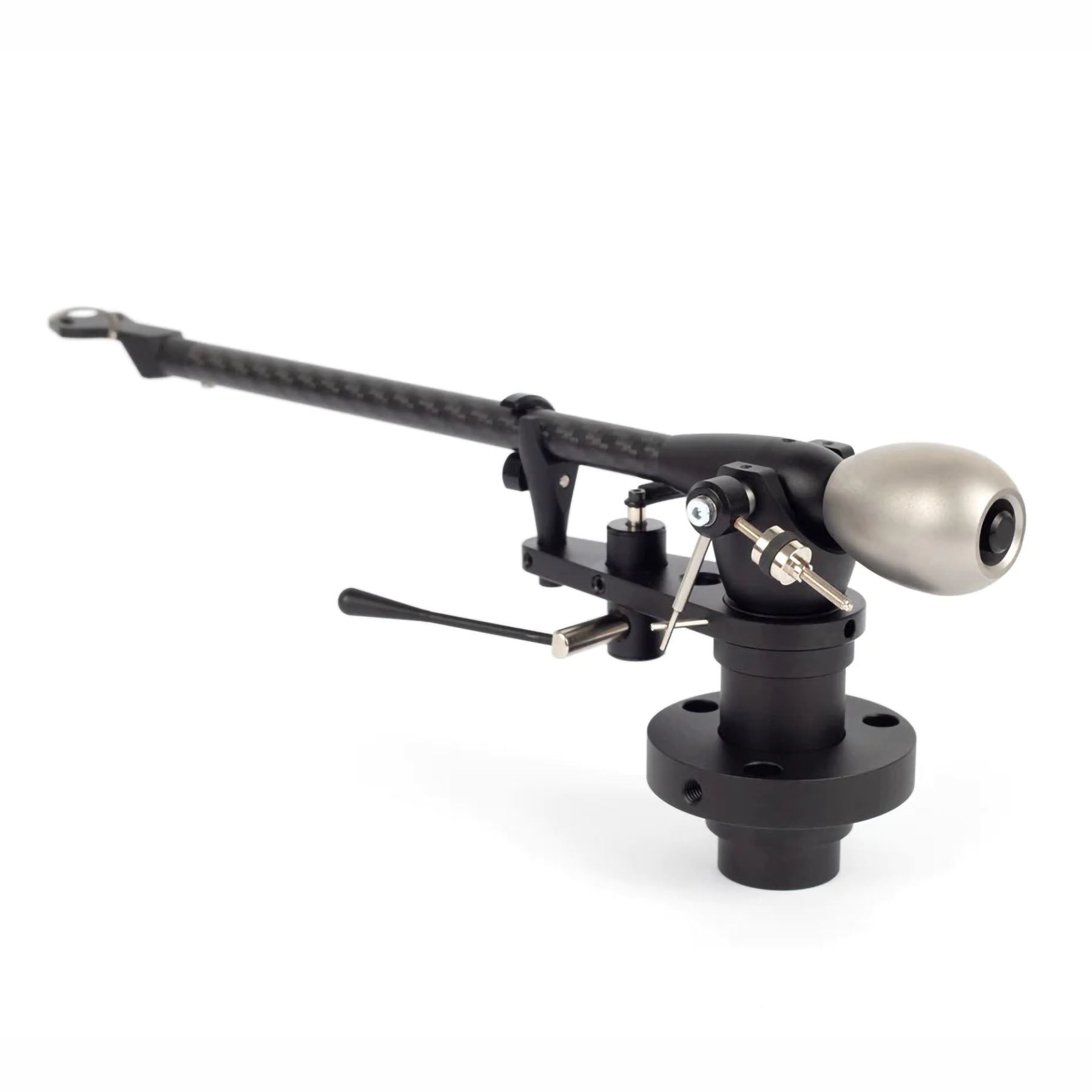

AURIS W9 Tone Arm

Elevate your vinyl listening experience to new heights with the exceptional Auris W9 Tone Arm. Meticulously crafted with precision and uncompromising quality, this gimbal tonearm is expertly constructed using carbon fiber or milled aluminum, ensuring an unparalleled smoothness throughout your music journey.

Designed to perfection, the Auris W9 Tone Arm glides effortlessly on six ball bearings, offering an extraordinary level of fluidity. Its distinctive aluminum joint and antiskating system further enhance the listening experience by floating gracefully on two ball bearings, minimizing friction and delivering exceptional VTA adjustment of 10mm.

Indulge in the captivating, true-to-life sound of your cherished vinyl collection with the included Van den Hull® wires, meticulously chosen to complement the Auris W9 Tone Arm. These premium wires ensure optimal signal transmission, preserving the integrity of the music and revealing its finest nuances.

Unleash the full potential of your audio setup with the Auris W9 Tone Arm. Immerse yourself in an audio realm where every note comes alive and every detail is faithfully reproduced. Experience the pinnacle of vinyl listening with the Auris W9 Tone Arm - a masterpiece that transforms your music into an extraordinary sonic adventure.

Bayadere 3 Turntable

Auris W9 Tone Arm Specification
