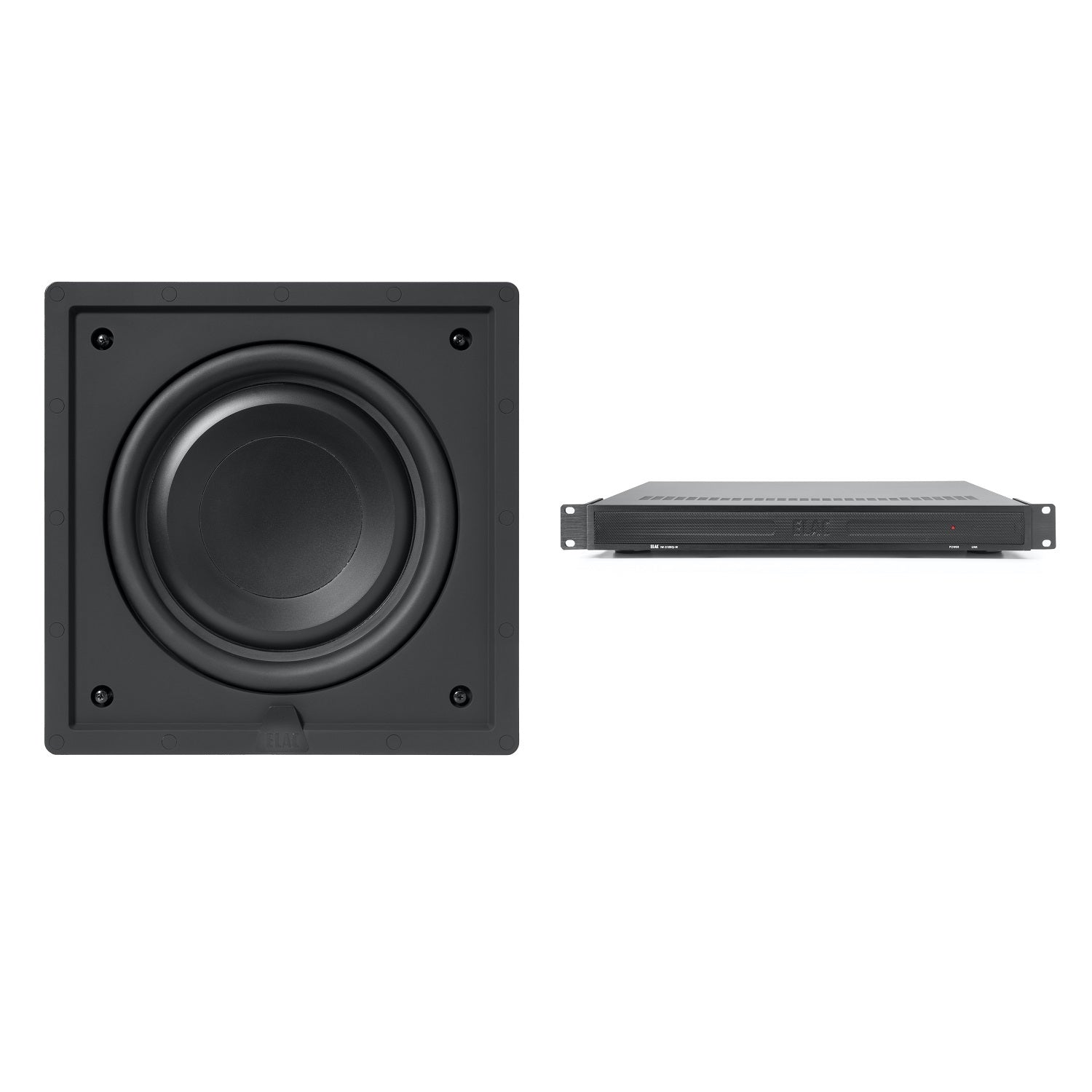

ELAC IW-S10EQ 10" In-wall Subwoofer and 19" Rack Mount Amplifier

filler

Price:
Sale priceA$1,999.00

Tax included. 🚚 FREE SHIPPING on all orders

Description

The ELAC IW-S10EQ is designed to bring deep bass to any home theater or music system. Featuring their exclusive app-controlled Cabinet Volume Correction technology and Auto-EQ assures the best performance no matter the volume of the wall or placement. The amplifier features an app you install on your mobile phone which will analyze the volume of the wall and optimize the subwoofers output to provide consistent performance.

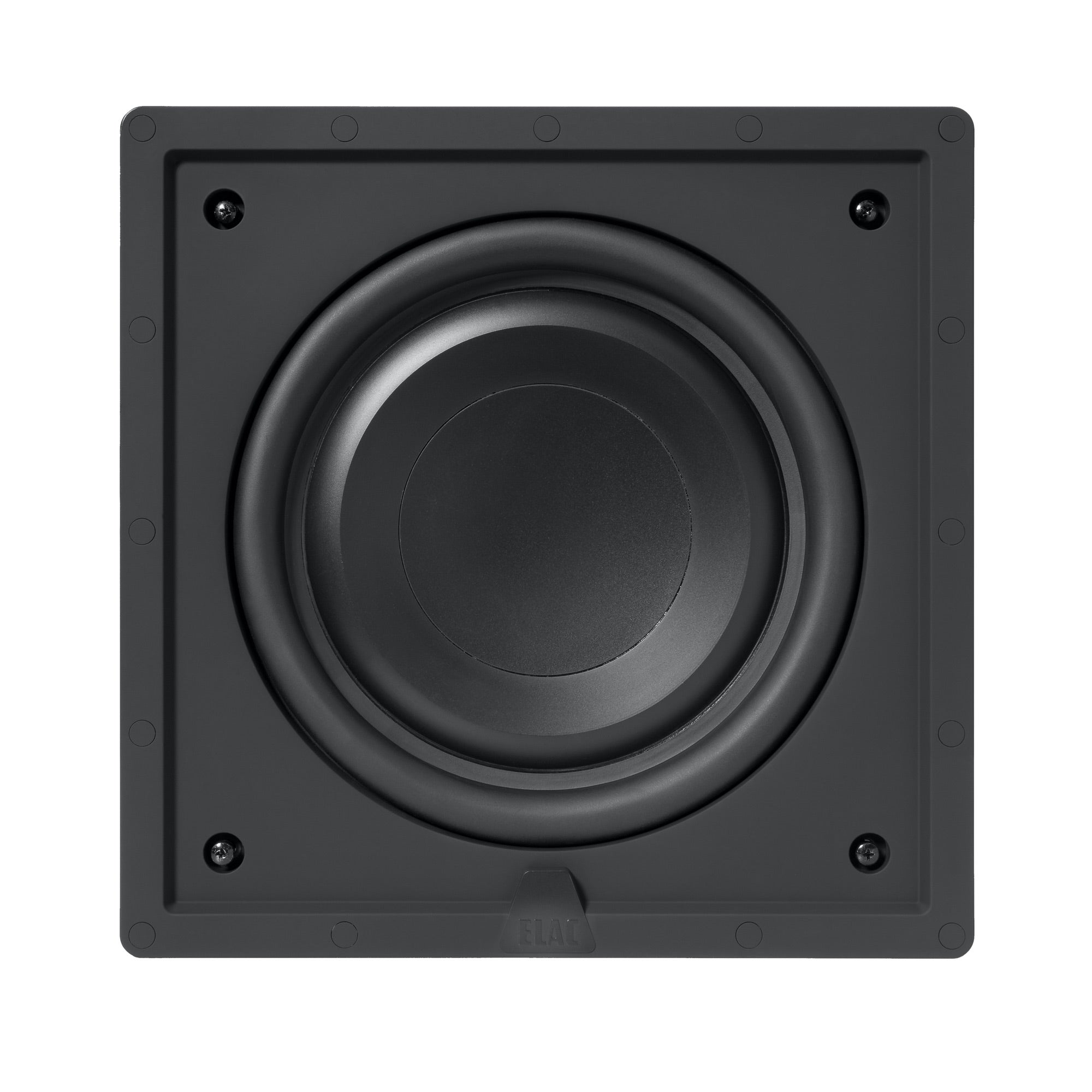

10″ Thin Profile Long Excursion Sub

A custom designed 10” Thin Profile woofer was designed with a motor structure normally found on larger 12” Woofers. In conjunction with the included 400 Watt Rack Mount amplifier delivers real bass from from an in-wall woofer without the need for a back box.

Automatic Room EQ

Utilizing the ELAC In Wall Sub Control app and your smartphone’s microphone, the IW-S10EQ in-wall subwoofer will automatically equalize to your room’s characteristics using a 12-band parametric equalizer. Manual adjustment is available as well.

CVC (Cabinet Volume Correction)

Featuring patented CVC technology delivers the same best in-class low frequency output no matter what wall it is installed in. CVC analyzes and determines the internal volume of the wall it is installed and adjusts the tuning of the DSP for optimum performance.

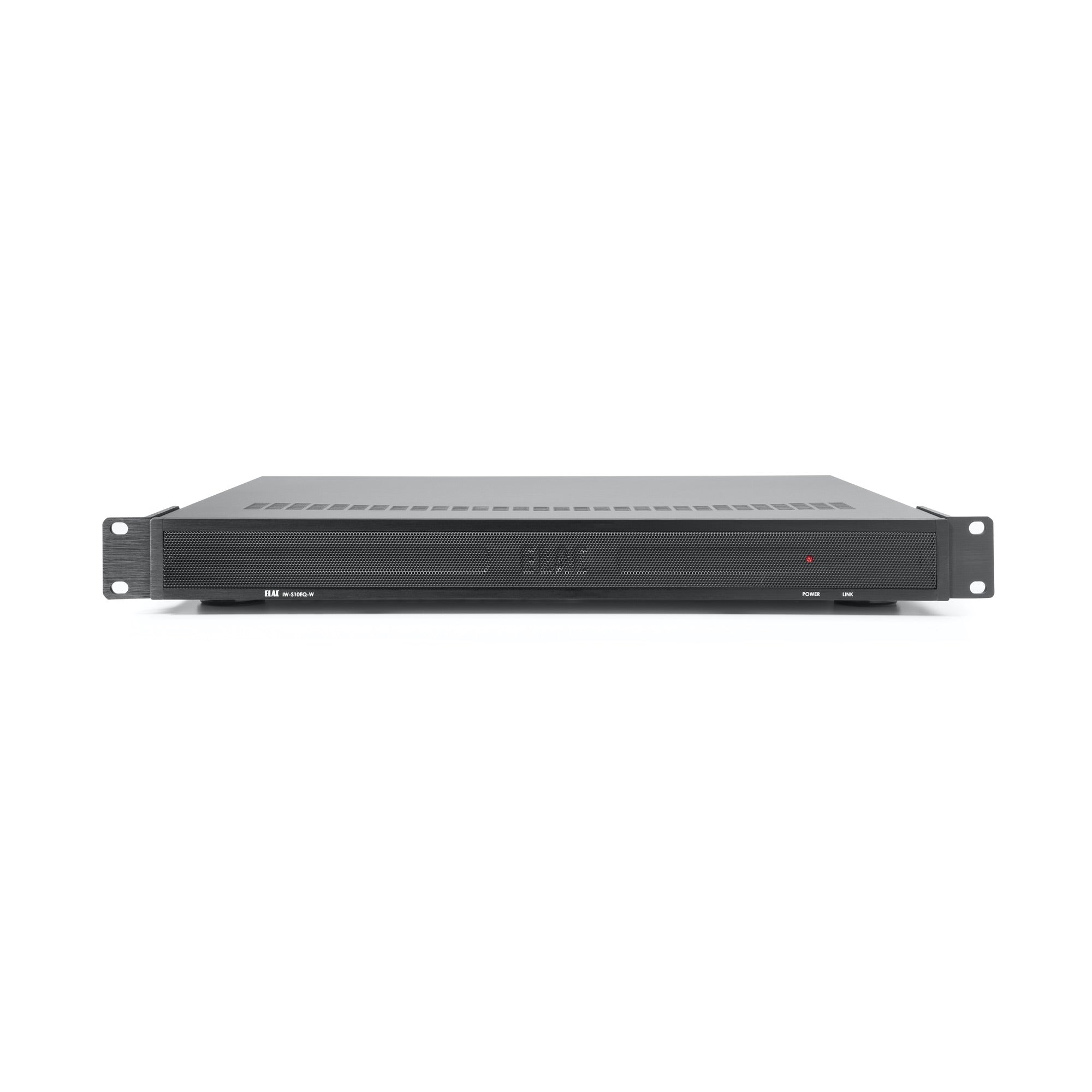

400 Watt BASH Amplifier

Delivering a 400 watts of RMS power our BASH amplifier offers the power needed for todays dynamic music and movie soundtracks

App Control

Exclusive In Wall Sub Control App for iOS and Android devices make setting up and adjusting the subwoofer simple.

IW-S10EQ-W Specifications

Woofer……………………………………………. 10” high excursion doped paper cone
Passive Radiator…………………………….. 10” high excursion doped paper cone
Crossover Frequency…………………….. 50Hz to 150Hz
Frequency Response…………………….. 28Hz to 150Hz
Amplifier Type……………………………….. BASH
Maximum Amplifier Power…………….. 400 Watts (RMS)
App Controlled………………………………. Yes (iOS and Android)
Standby Power Consumption……….. 1 Watt

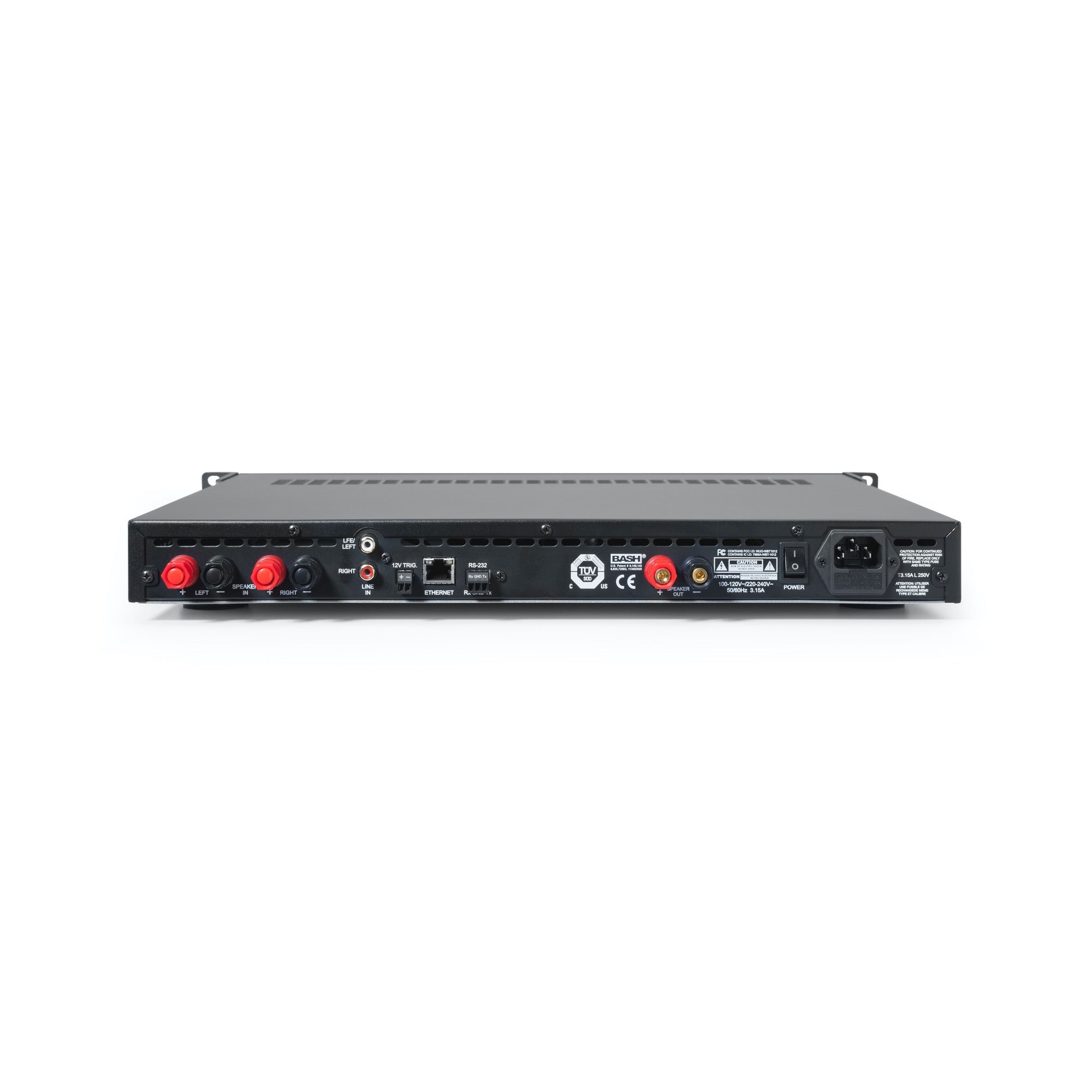

Inputs…………………………………………….. 2 x RCA (L,R/LFE)
Data Connection……………………………. Ethernet, 12v Trigger, RS232
Cabinet Finish………………………………… Black
DSP………………………………………………… Yes
Accessories Included…………………….. AC Power Cord/Template
Woofer Height…………………………………………….. 12.2″
Woofer Width……………………………………………… 12.2″
Woofer Depth……………………………………………… 4.23″
Mounting Depth…………………………………………..3.82″
Net Weight…………………………………….. 32.1 lbs
Net weight Amplifier lbs/mm…………. 12.94 lbs / 5.87 kg
Net weight Subwoofer…………………… 14.24 lbs / 6.46 kg
