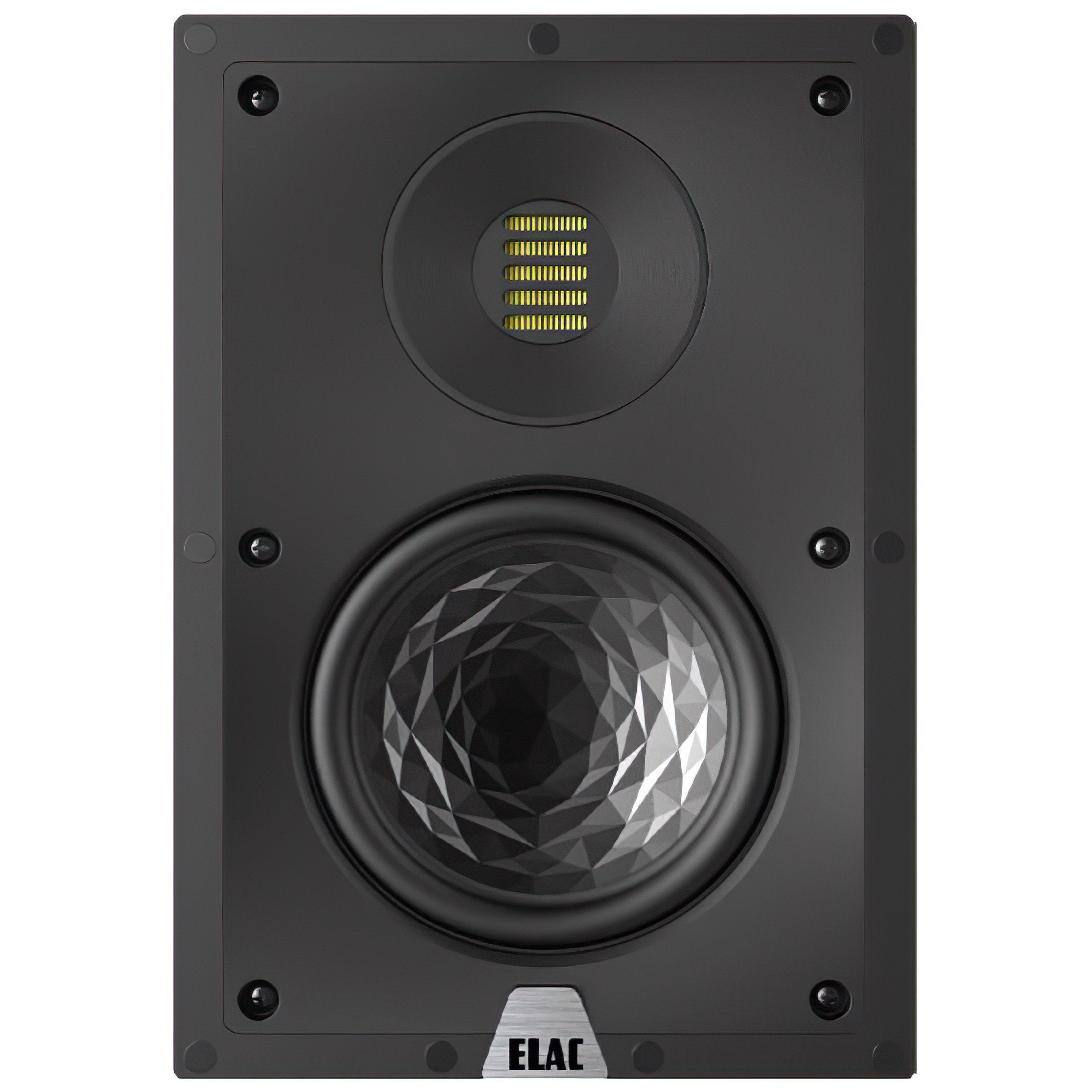

Vertex Series 3 IW-VJ63-W
These speakers are sold as EA.
JET Folded Air-Motion-Transformer and Deep Spheroid Waveguide
Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion and lots of headroom. A Deep Spheroid Waveguide is used to improve directivity control and efficiency.
Custom-designed Crystal Membrane Aluminum Woofer
ELAC’s unique Crystal Membrane woofer is extremely rigid, yet light weight. This woofer is specifically designed to keep up with the speed of the JET Tweeter while delivering detail in low frequency response.
The combined performance of the speakers demands a more complex crossover so that the speakers maintain their audiophile legacy. Audio-grade components are used so that there is no compromise in performance.

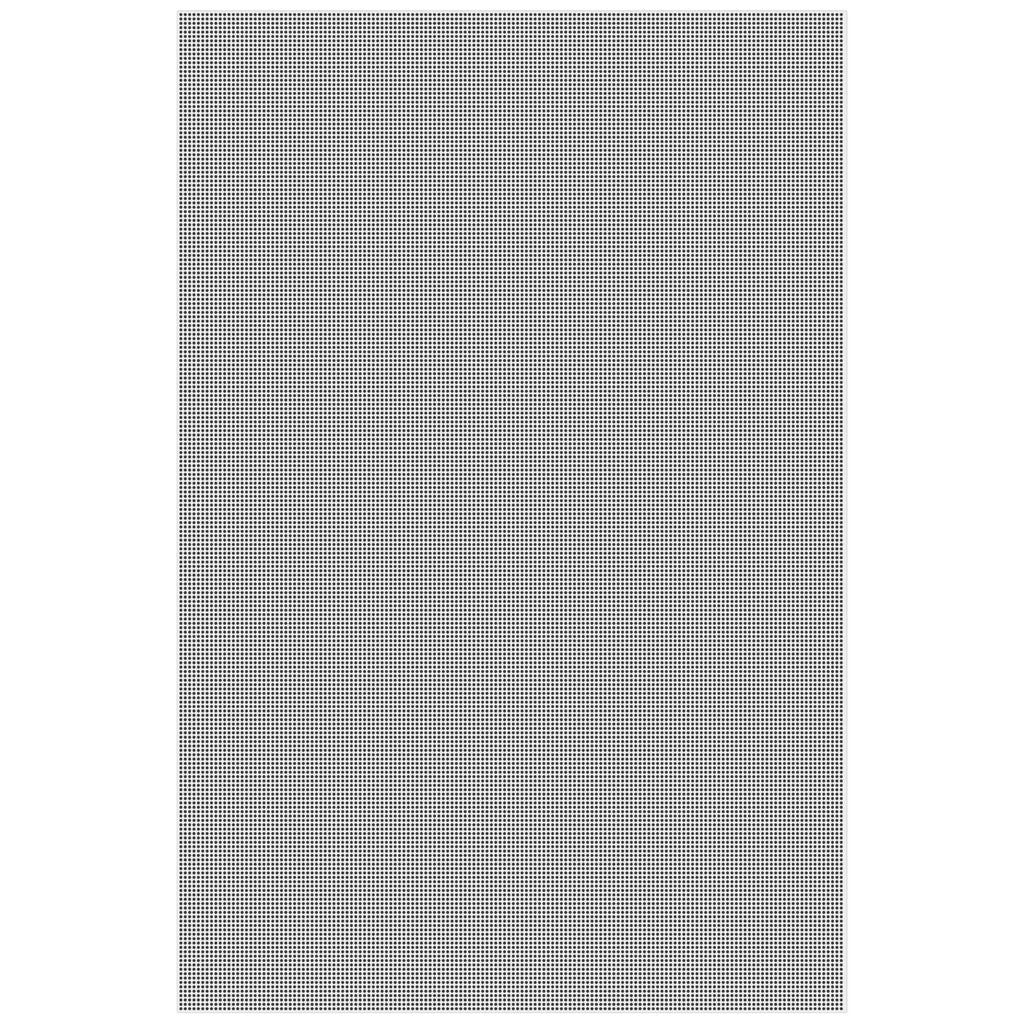

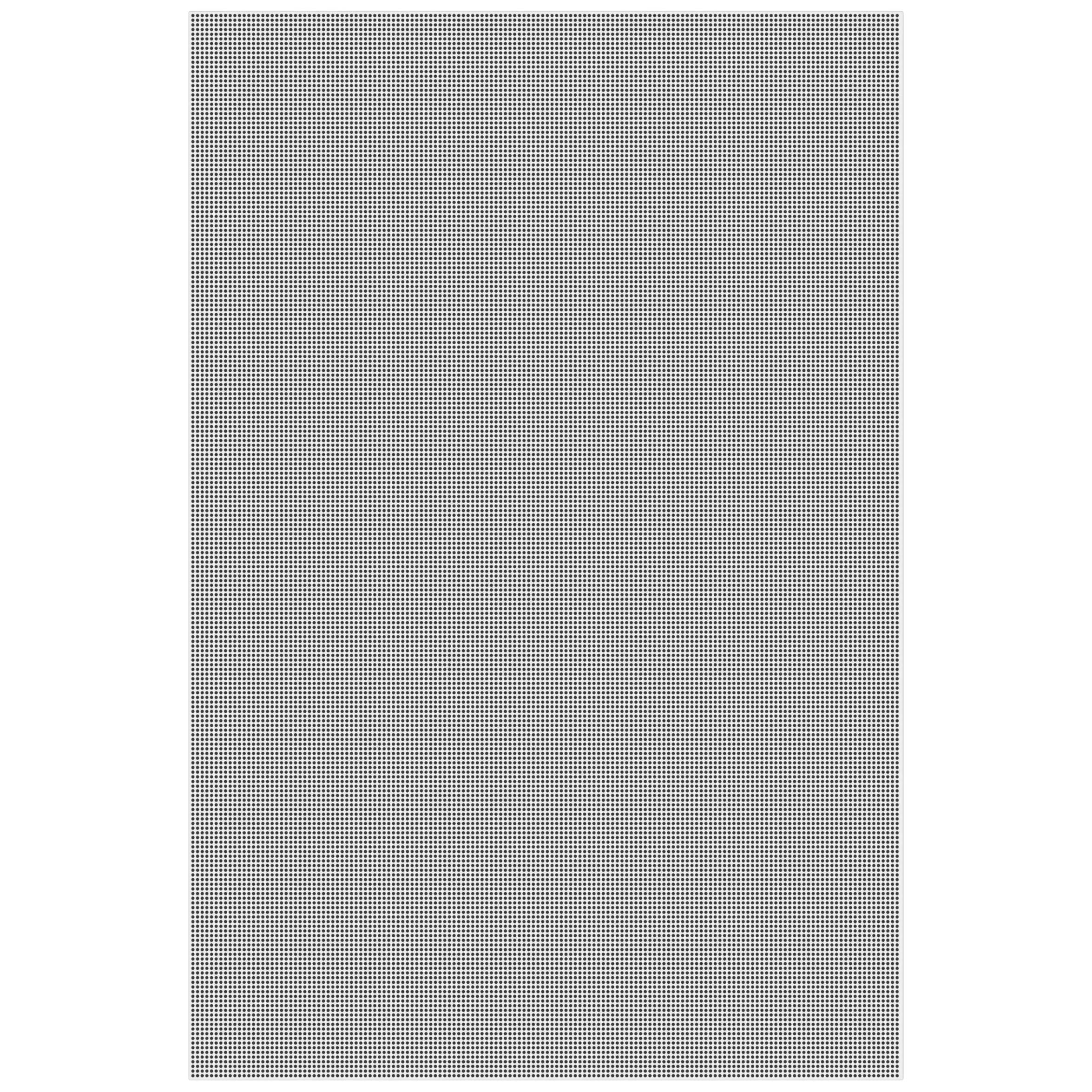

A slim profile paintable magnetic grill allows for the speaker to virtually disappear in the room
What's in the box
- Speaker x1
- White Paintable Grille x1
- Cutout Template x1
- Owners Manual x1
Features & Specifications
Speaker type: 2-way, rear side open
Tweeter: Jet folded ribbon
Woofer: 6-inch crystal aluminum cone
Crossover frequency: 3,000 Hz
Frequency response: 45 to 40,000 Hz
Sensitivity: 88 dB at 2.83 v/1m
Recommended amplifier power: 40 to 120 Watts
Nominal/peak power handling: 120/160 Watts
Nominal impedance: 4 Ohm
Grill: Metal magnetic, paintable
Overall dimension: 322mm x 215mm
Cut-out diameter: TBA
Mounting depth: 100mm
