Hana
Introducing a new line from Japan, Hana (which means “brilliant and gorgeous” in the original Japanese). Hana Phono Cartridges use high rigidity aluminum cantilevers, and cross-shaped armatures, providing you with brilliant and gorgeous sound. Hana cartridges are produced by Excel Sound Corporation of Tokyo Japan, a long time OEM cartridge producer.

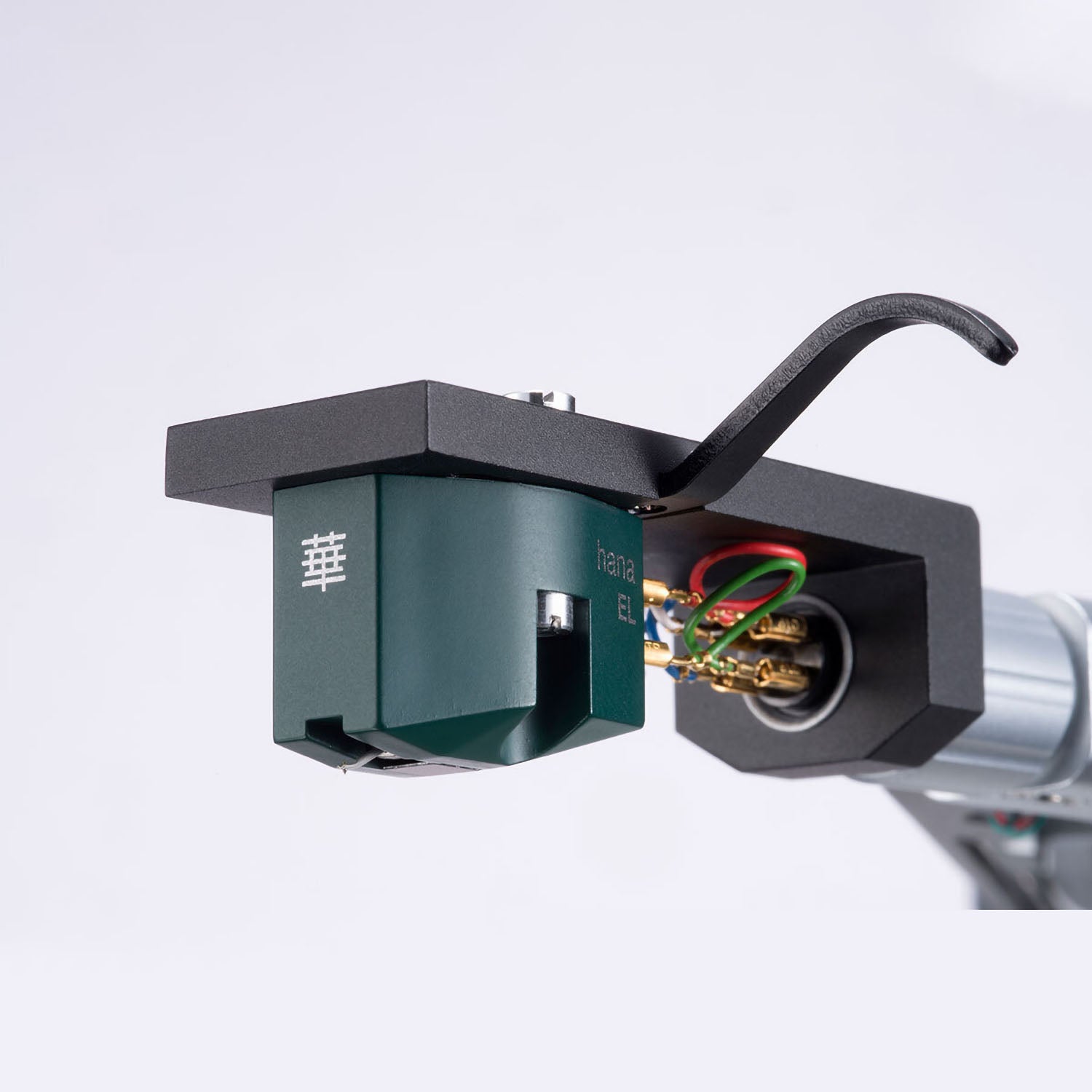

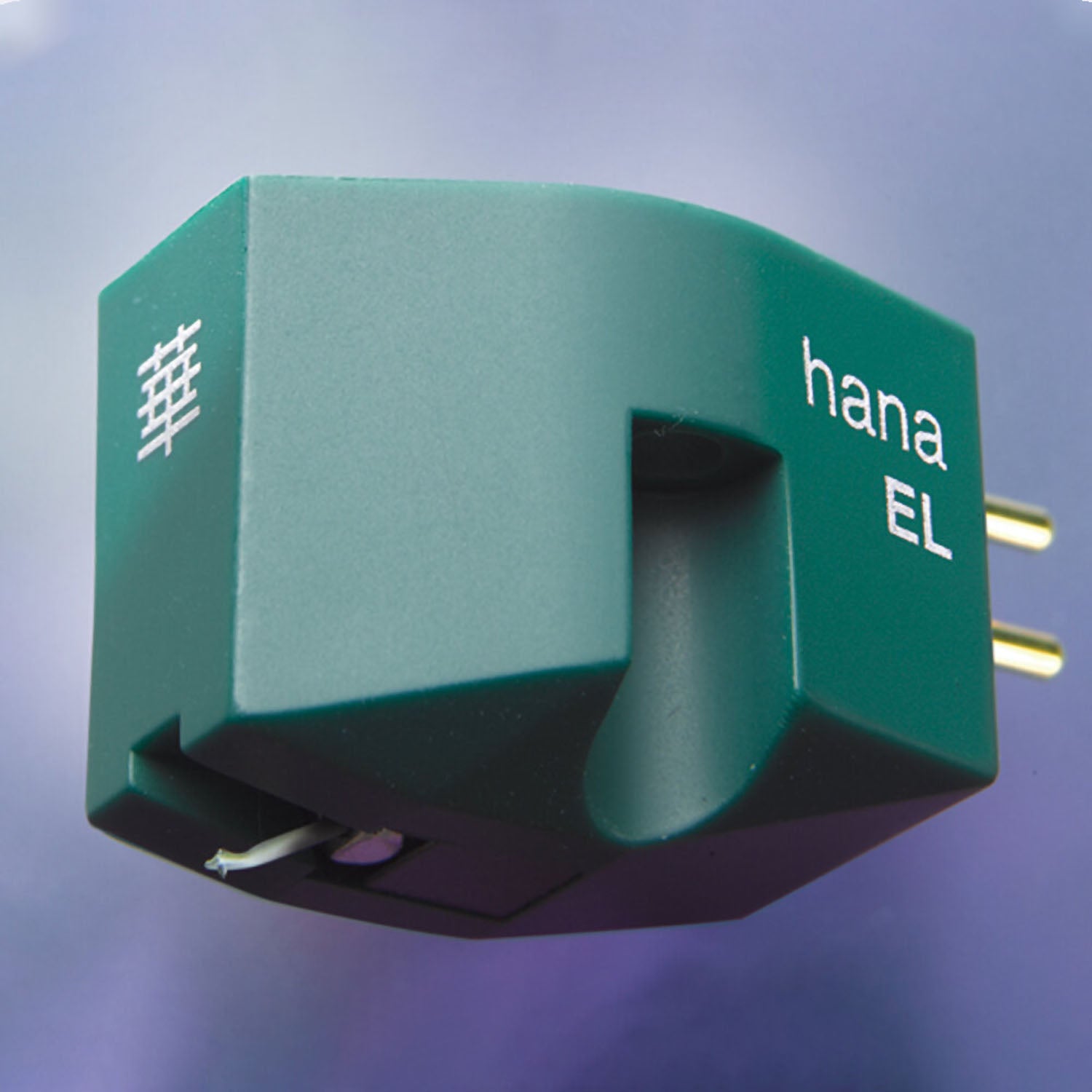

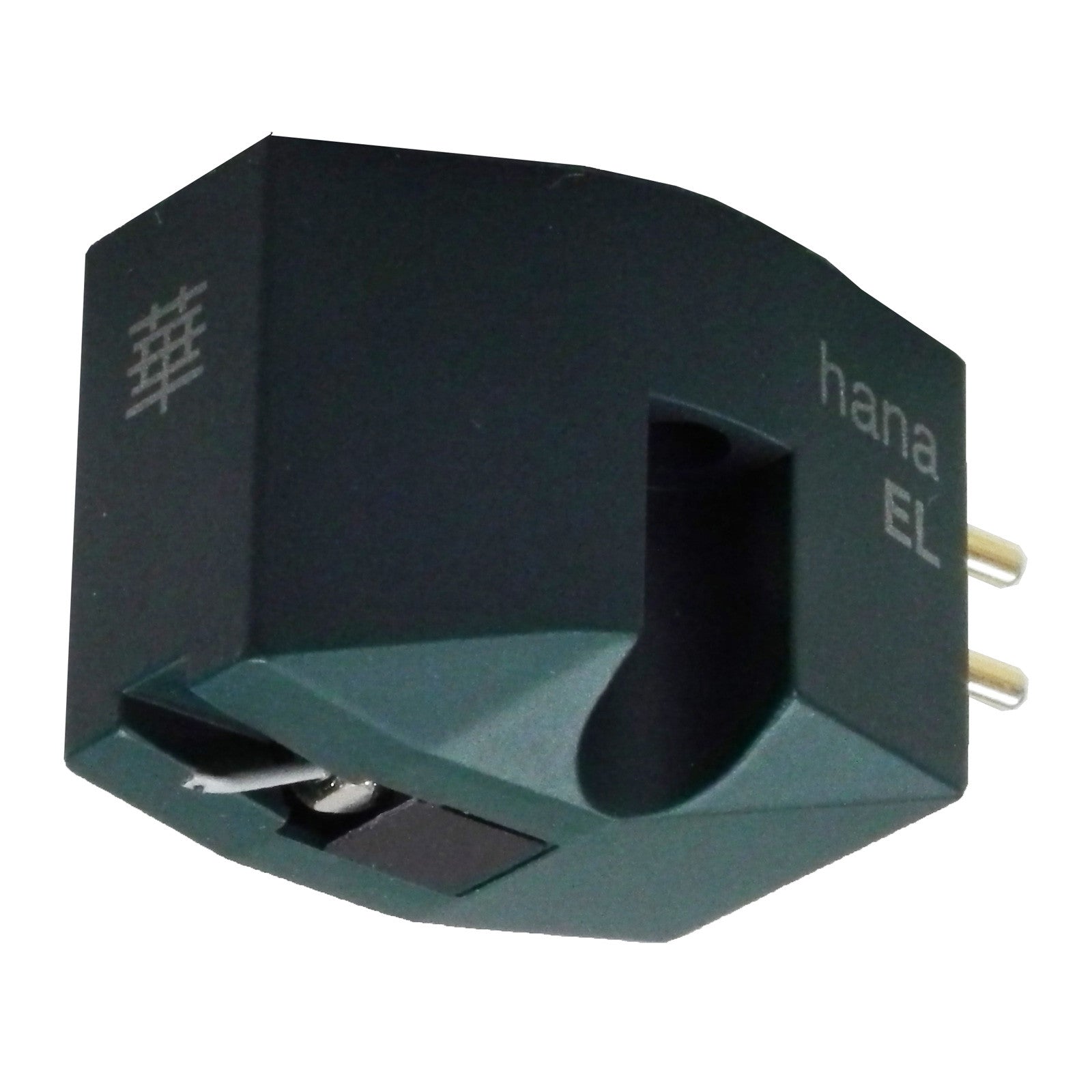

Hana EL
Low Output Elliptical MC Cartridge 0.5mV
The Hana Series has been developed with significance placed on ease of use and set-up, as well as high performance reproduction. Hana Cartridges' highly rigid aluminium cantilever are assembled with crossed armatures to reproduce dynamic sound!
| Stylus | Synthetic Elliptical |
|---|---|
| Cantilever | Aluminum |
| Output Level | 0.5mv/1kHz |
| Output Balance | <2dB/1 KHz |
| Vertical Tracking Force | 2g |
| Trackability | 70 µm/2g |
| Channel Separation | 25dB/1kHz |
| Frequency Response | 15-25,000Hz |
| Impedance | 30Ω/1kHz |
| Suggested Load Impedance | >400Ω |
| Cartridge Weight | 5g |
| Body Color | Moss Green |
| Warranty | 2 years |
