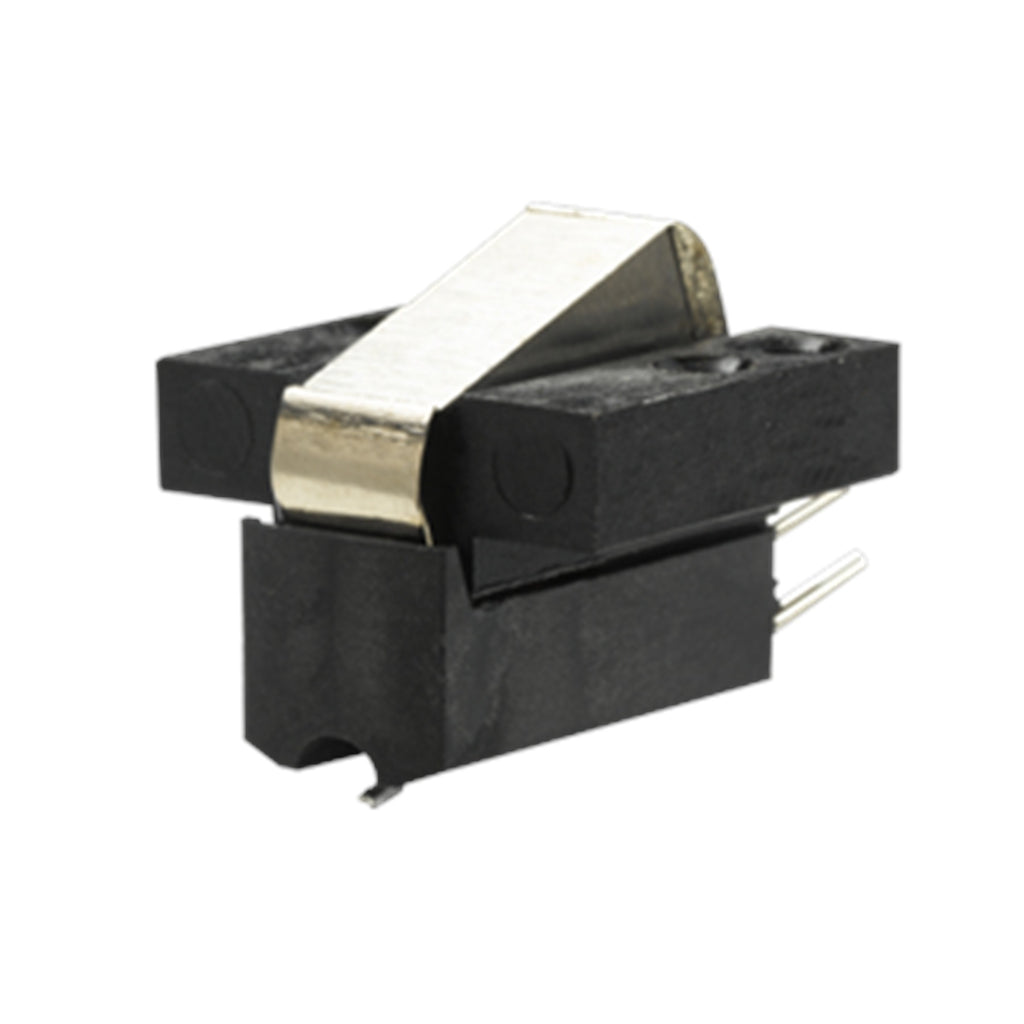

SPU Classic N E

The SPU Classic NE provides the same sound reproduction properties as the SPU Classic GM E series

The SPU Classic NE is sold without the integrated headshell unit.
The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using the SPU N adaptor.
Those with vintage SPU-type headshells can use the Classic NE to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

The ST-7 transformer is a perfect match for the SPU Classic NE cartridge.

Output voltage at 1000 Hz, 5cm/sec.

0.2 mV

Channel balance at 1 kHz

< 1 dB

Channel separation at 1 kHz

> 20 dB

Channel separation at 15 kHz

> 10 dB

Frequency response

20-20.000 Hz + 3/-2 dB

Tracking ability at 315Hz at recommended tracking force *)

60 µm

Compliance, dynamic, lateral

8 µm/mN

Stylus type

Nude Elliptical

Stylus tip radius

r/R 8/18 µm

Tracking force range

3.0-5.0 g (30-50 mN)

Tracking force, recommended

4.0 g (40 mN)

Tracking angle

20°

Internal impedance, DC resistance

2.0 ohm

Recommended load impedance

> 10 ohm

Coilwire material

High Purity Copper (OFC)

Cartridge colour

Black matte

Cartridge weight

13 g
