INV 80
Special speakers for invisible installation in ceilings and walls, hidden under plaster or paint. In various variants for all requirements.
Sounding walls through invisible speakers! The innovative surface loudspeakers of the Invisible series are only a few millimetres thick and are installed completely invisibly under plaster, paint or wallpaper, turning the wall or ceiling into a hidden sound source. The amazing listening experience: Due to the special flat radiation characteristic of the Invisible Soundboards, their impressive, harmonious sound is equally audible everywhere in the room - regardless of the listener's position.
INV 80 is a surface loudspeakers with very high efficiency, installed invisibly under plaster, paint or wallpaper. Flat radiation characteristics. With special polymer membrane for integration in dry construction, solid construction, walls and ceilings.
Features
- Installed invisibly under plaster, paint, or wallpaper
- Planar radiation characteristics
- Impressive sound regardless of the listener's position
- Ideal for individual and discreet solutions
TECHNICAL DATA
INV 80 | |
Order Number | 1.084.672.00 |

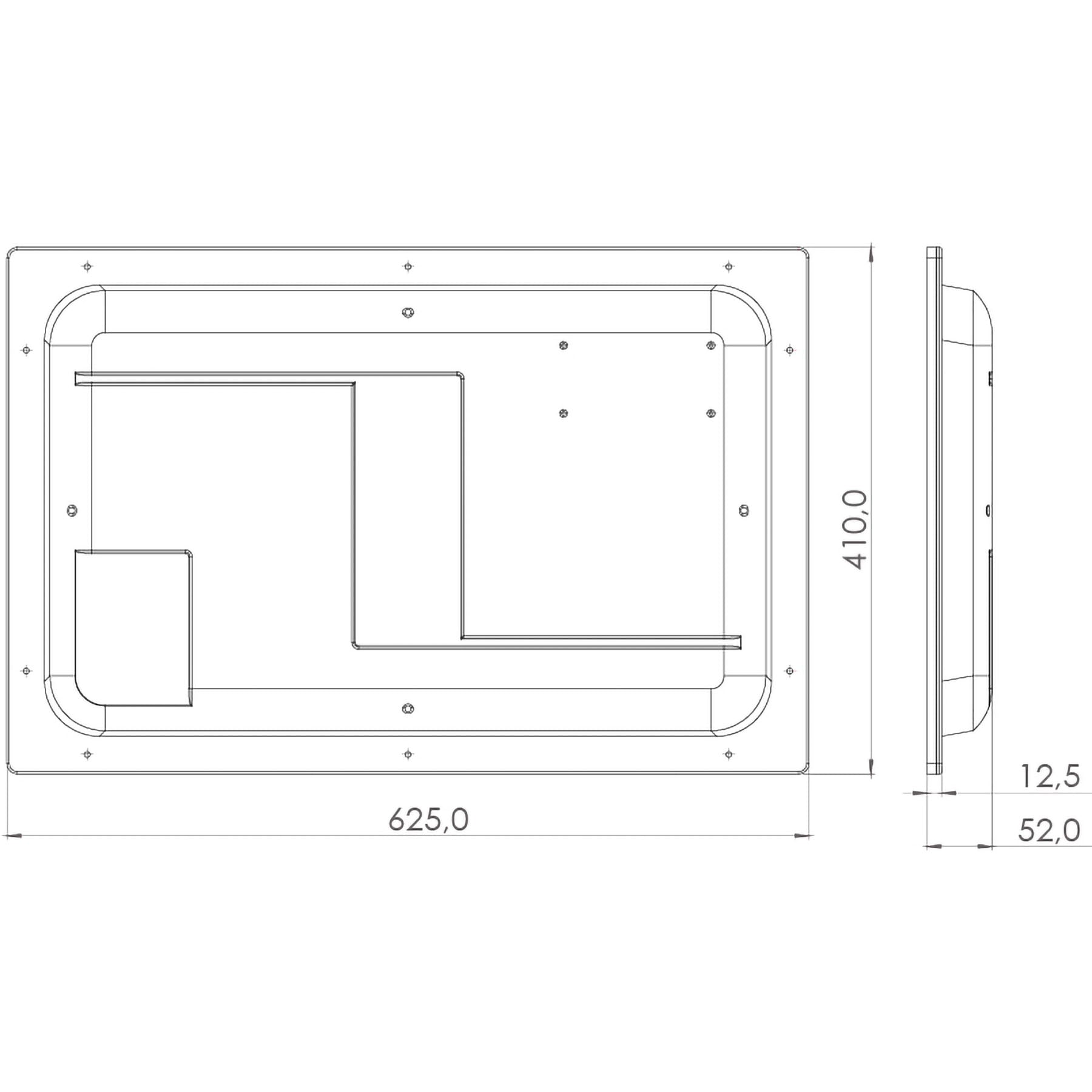

Dimensions L x W x D (mm) | 625 x 410 x 52 |
Min. installation depth (mm) | 40 |
Weight (kg) | 2,2 |
Capacity (Watt) | 80 |
Impedance (Ohm) | 8 |
Sensitivity | 88 dB/1W/1m |
Frequency range | 120 Hz - 20 kHz |
Suitable for outdoors | x |
EQUIPMENT
INV 80 | |
Installation frame available | ✔ |
Sprue housing available | ✔ |
1K PU special adhesive | ✔ |
Passive protection circuit | ✔ |
Features & Specifications
Order Number
1.084.672.00
Dimensions L x W x D (mm)
625 x 410 x 52
Min. installation depth (mm)
40
Weight (kg)
2,2
Capacity (Watt)
80
Impedance (Ohm)
8
Sensitivity
88 dB/1W/1m
Frequency range
120 Hz - 20 kHz
Suitable for outdoors
x
