SPL Phonitor xe Headphone Amplifier and DAC
SPL Phonitor xe Headphone Amplifier and DAC

Sound Performance Lab

SPL Phonitor xe Headphone Amplifier and DAC

Sale price$3,899.00

Includes GST. 🚚 Free shipping on orders over $100 Australia wide at checkout.

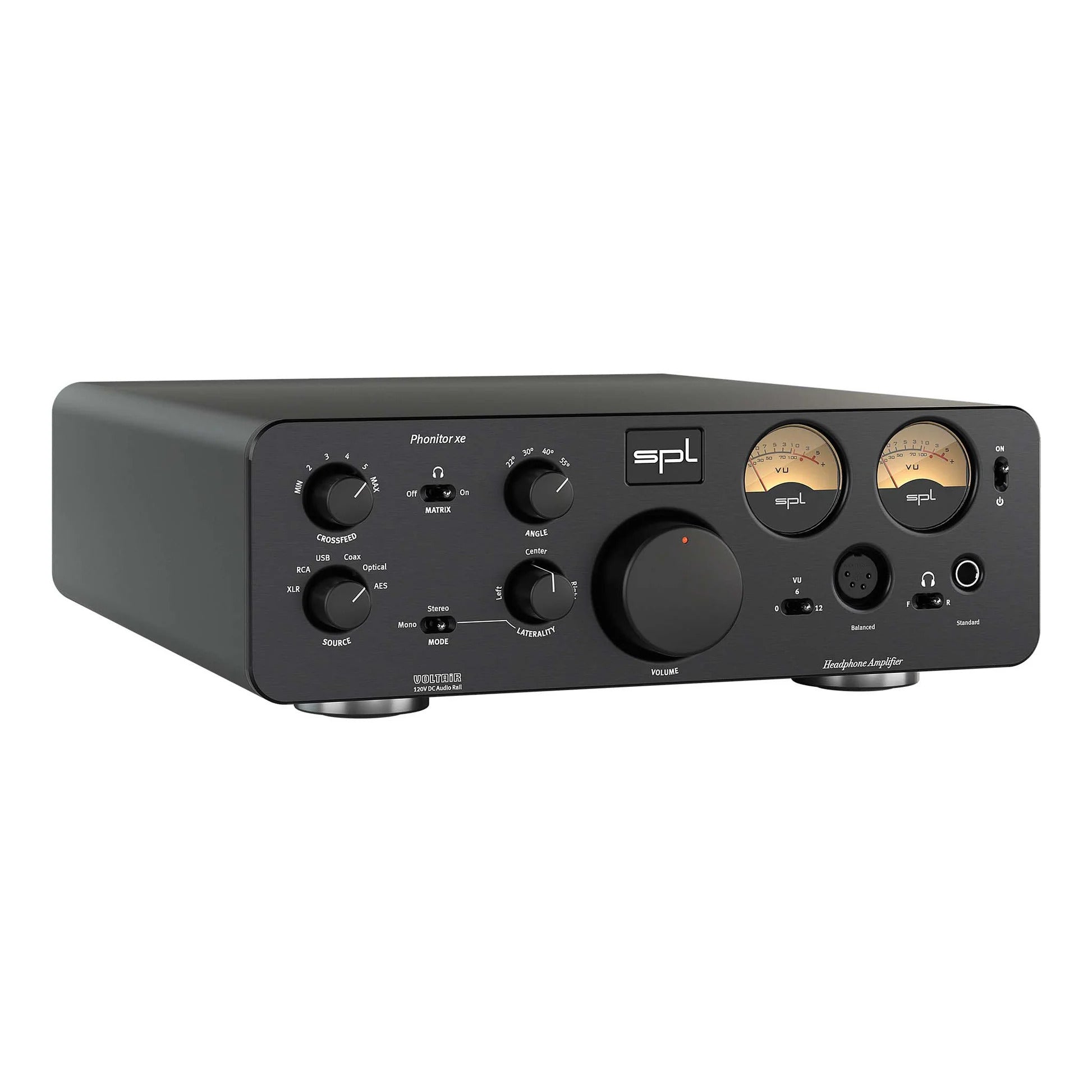

Colour:Black
Model:

Model

Quantity:
Pickup available at 22 Saint Kilda Road Usually ready in 2-4 days

SPL Phonitor xe Headphone Amplifier and DAC

Black / Phonitor xe without DAC786

22 Saint Kilda Road

Pickup available, usually ready in 2-4 days

22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia

0395250022

Country of origin: Germany

Ask Geoff

This product is not able to be added to your cart for one or more of these reasons.

  1. The supplier has a policy that prevents us from doing so.
  2. There are delays in supply, and I would prefer to make you aware of lead times;
  3. This is a bespoke item and I don't want you to pay in full and wait a long time for it to be made and shipped,
  4. I would like to discuss the synergy of the product matching with your system
  5. Due to fluctuating shipping and currency effects, the product may have come down in price. I can offer you a market price.

Please use this resource and contact me using the following form or call me.

Your Javascript is disabled

Phonitor xe

Our nonplusultra headphone amplifier.

The Phonitor xe is the nonplusultra standalone headphone amplifier without any compromises. Phonitor Matrix, remote volume control, retro-look VU meter, the optional premium DA converter and the all-superior VOLTAiR technology make the Phonitor xe one of the best headphone amplifiers of our time.

Reviews

“With the Phonitor xe, SPL delivers the ultimate device for all headphone enthusiasts, who value neutrality, preciseness and control, combined with great musicality.”

Dr. Martin Mertens
EAR IN

“The fineness and transparency with which the music is depicted is just awesome – what a richness of detail!”

Volker Frech
Lite Magazin

“How does the device sound?
Let’s erase all doubts right away:
it sounds fantastic!”

Jürgen Saile
HiFi Statement

“On to the meat of the review though,
how does the Phonitor xe itself actually sound?
To be honest, it’s spectacular.”

Grover Neville
Inner Fidelity

“One way or another, the purchaser of a Phonitor xe receives a reliable high-end solution, which not only drives every kind of headphone on the market without any effort, but also convinces through useful and rare extras like the, in my opinion, still unrivaled crossfeed circuit.”

Benjamin Baum
Fair Audio

Great Sound – for all headphones

The Phonitor xe offers connections for a standard headphone with a stereo jack plug and for balanced-driven headphones using a 4 pin XLR plug.

Thanks to the enormous output power, all headphones are driven effortlessly.
Thus, it plays out the advantages of the SPL VOLTAiR technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.

Twice as nice

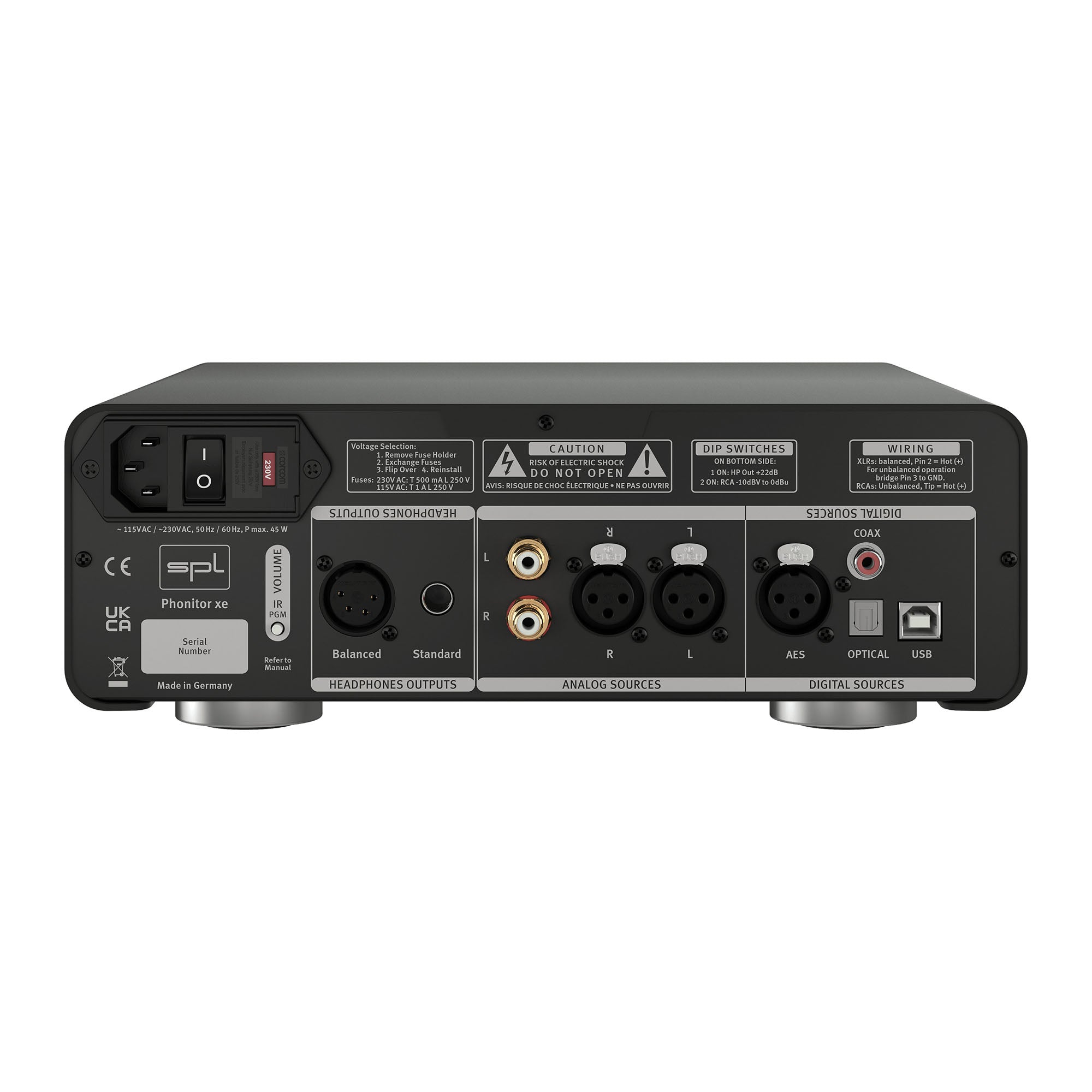

The Phonitor xe provides headphone outputs on the front and on the rear. On the front, you switch between F (front) and R (rear). This way, your favorite headphones remain firmly connected on the rear – without visible cabling on the front.

Milled from solid

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.

The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote control

The volume control can be remotely controlled with any infrared remote control.

The Phonitor xe learns to communicate with it with the simple push of a button.

Learning made easy

Using Phonitor x as an example, this video explains how you can use any infrared remote control to remotely control the volume.

Source of joy

Up to six (6 !) stereo sources can be connected to the Phonitor xe: XLR, RCA and via the optional DAC768 also USB, COAX, OPTICAL and AES.

Phonitor xe accepts almost all audio connections. Balanced via XLR or unbalanced via RCA connectors.

With the optional DAC768, four additional digital sources are added. From USB to professional AES format, no wishes remain unfulfilled.

The DAC automatically picks up the sampling rate and resolution of the digital playback source. No matter if a streamer, computer or CD player is connected. No further settings on the Phonitor xe are necessary.

The DAC768

The highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip is used as the converter chip in the optional digital-to-analogue converter, which thanks to its architecture reproduces the finest sound details.

It converts PCM audio with a resolution of 32 bits and a sampling rate of up to 768 kHz, which is equivalent to 16 times CD resolution. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256. In contrast to the DAC 768xs, the DAC768 not only offers an AES/EBU digital input, but also the SPL DLP120 with VOLTAiR technology.

The DLP120 (Dual Low-Pass)

The analog output of the DAC chip must be filtered by a low pass filter. Phonitor xe has two of them: One for PCM audio and one for DSD audio, since different roll-off frequencies are required.

In contrast to all other DACs in the world, the low pass filters here are built using VOLTAiR technology, which provides a plus in dynamics and headroom and sound.

Good ol' times

Two mechanical VU meters visualize the input levels for the left and right audio channel.

With the VU switch you can optimize the display for different signal levels.

Finding the middle

is not always easy. By our very nature, hearing can be leaning more to the left or more to the right. This is especially obvious when listening with headphones.

That’s why Phonitor xe has the uniquely finely resolved laterality control. With it, the center can be found perfectly.

With the MODE switch you can choose between stereo or mono playback. This switch also activates the laterality control.

The Revolution: Phonitor Matrix

The Phonitor Matrix is the revolution in the headphone amplifier.


Thanks to the Phonitor Matrix, music can be experienced on headphones as if it was played on speakers. The tiring super stereo effect is a thing of the past.

Enjoy your music without listening fatigue and exactly the way it should be heard.

Music is normally produced and mixed for playback on stereo speakers.

Listening on headphones is different from listening on loudspeakers. The biggest difference is the lack of crossing signals of the sound signal from the left speaker to the right ear and from the right speaker to the left ear. These crossing signals are missing in conventional headphone listening, because there are no signals crossing from one side of the headphones to the other. This results in an unnaturally wide stereo image and the various sound sources of the audio signal are not localized as the sound engineer intended them to. This effect is often referred to as “super stereo effect”. During conventional listening on headphones, our brain can balance the false representation of the playback to a certain extent – but this is very exhausting.

The SPL Phonitor Matrix can correct this false stereo image with an analog circuitry. The Phonitor Matrix therefore not only ensures a correct representation of the stereo image, but also a relaxed listening experience.

Sounds good!

With all devices of the Professional Fidelity series we develop not only according to plan, but also by ear. All important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.

The VOLTAiR Technology

The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps. In our Professional Fidelity series, we refer to this unsurpassed technology as VOLTAiR technology.



The highest possible audio quality requires the highest possible audio operating voltage.
The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers.

This high voltage would destroy conventional components and operational amplifiers.

By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.
The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.

Specifications

Analog inputs: XLR (balanced) and RCA

  • Input gain (max): 32.5 dBu
  • Input impedance (RCA): 20 kΩ
  • Input impedance (XLR): 20 kΩ
  • Common mode rejection (XLR): 82 dB

Digital Inputs: DAC768 (optional)

  • AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
  • Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
  • Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
  • USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
  • USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
  • 0 dBFS calibrated to: 15 dBu

Balanced Headphones Output: 4-pol XLR (balanced)

  • Pin wiring: 1 = L (+), 2 = L (-), 3 = R (+), 4 = R (-)
  • Source impedance: 0.36 Ω
  • Damping factor (40 Ω): 180
  • Frequency range (-3 dB): 10 Hz – 300 kHz
  • Crosstalk (1 kHz): -90 dBu
  • THD + N (10 Hz – 22 kHz, 0 dBu): 0.00082 %
  • Noise (A-weighted): -98 dBu
  • Output power (1 kHz, 1% THD, 600 Ω): 2 x 8 W
  • Output power (1 kHz, 1% THD, 300 Ω): 2 x 3.5 W
  • Output power (1 kHz, 1% THD, 32 Ω): 2 x 0.7 W
  • Dynamic range: 130.5 dB

Standard Headphones Output: 6.35 mm (1/4") TRS Jack

  • Pin wiring: Tip = Left, Ring = Right, Sleeve = GND
  • Source impedance: 0.18 Ω
  • Damping factor (40 Ω): 180
  • Frequency range (-3 dB): 10 Hz – 300 kHz
  • Crosstalk (1 kHz): -90 dB
  • THD + N (10 Hz – 22 kHz, 0 dBu): 0.00082 %
  • Noise (A-weighted): -103 dBu
  • Output power (1 kHz, 1% THD, 600 Ω): 2 x 2.7 W
  • Output power (1 kHz, 1% THD, 300 Ω): 2 x 5 W
  • Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
  • Dynamic range: 135.5 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

  • Operating voltage for analog audio: +/- 60 V
  • Operating voltage for relays and LEDs: + 12 V
  • Operating voltage for optional DAC768: +7 V, +3.3 V

Mains Power Supply

  • Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 230 V: T 500 mA
  • Fuse for 115 V: T 1 A
  • Power consumption: max. 40 VA
  • Stand-by power consumption: < 0,3 W

Dimensions & Weight

  • W x H x D (width x height incl. feet x depth):
    • 278 x 100 x 300 mm
    • 11 x 4 x 11,81 inch
  • Unit weight
    • 4.9 kg
    • 10.8 lbs
  • Shipping weight (incl. packaging)
    • 5.6 kg
    • 12.35 lbs
