2M Red Premounted
Step into the music with the 2M Red
With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.
The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.
Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
2M Red delivers an open, dynamic sound with a slight touch of warmth.
With the 2M Premounted, it’s never been easier to experience.

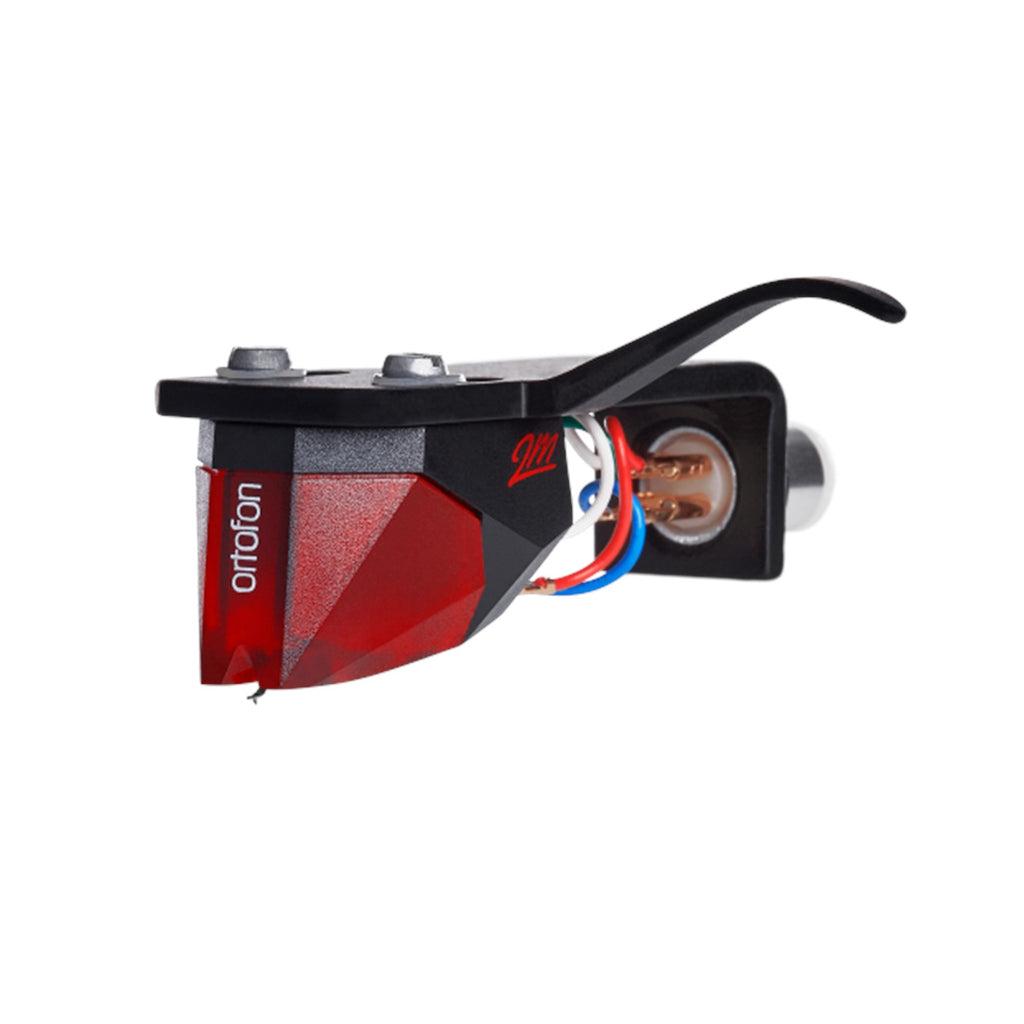

The 2M Premounted is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.
- Premounted on our popular SH-4 Black headshell.
- Easy and direct mount on S-shaped tonearms with universal mount.
- Correct Baerwald alignment with tonearms with universal mount.

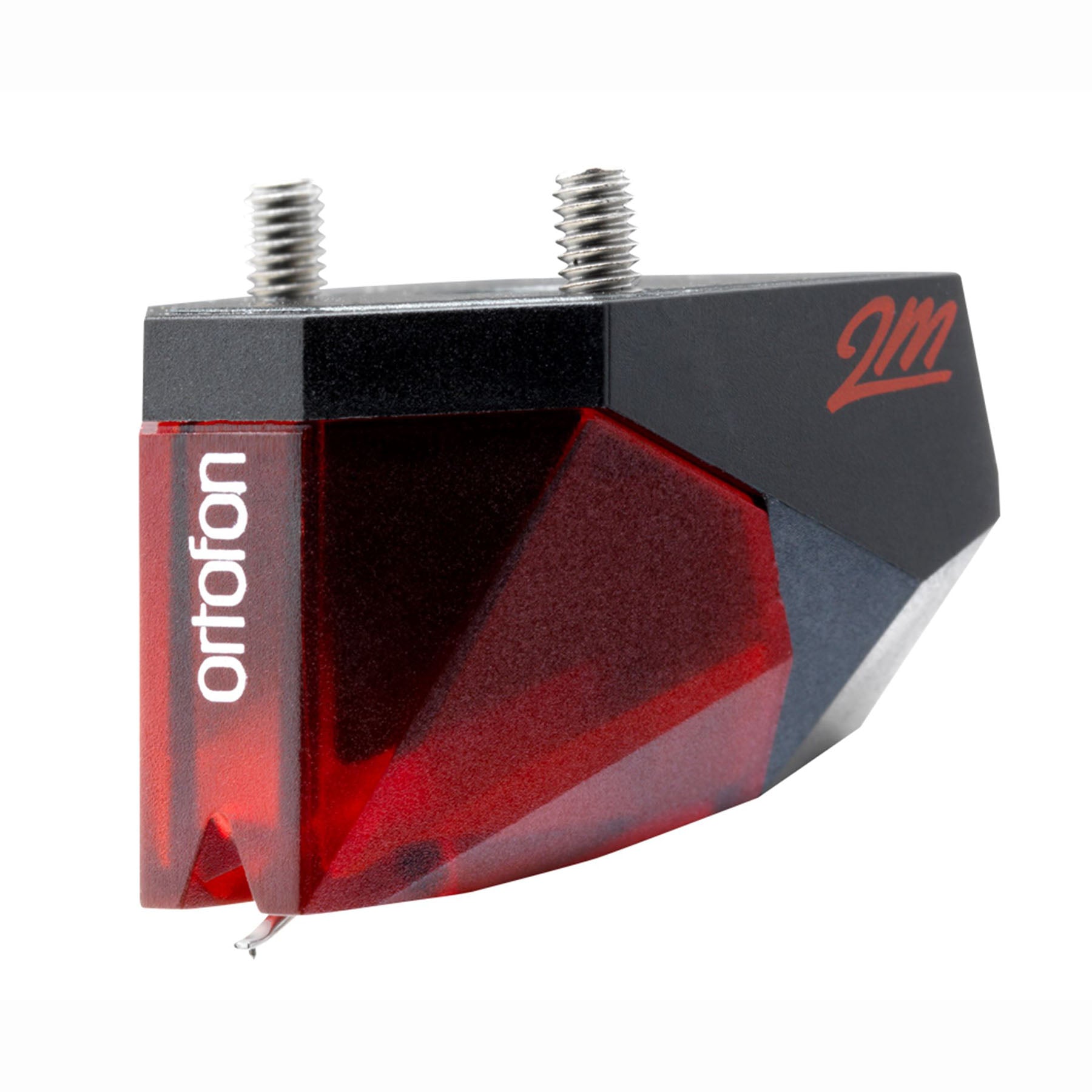

The 2M Red Verso model is an alternative product for bottom mount headshells
How to replace M2,0 mm screws on 2M Red Verso
1. Remove the stylus with the stylus protection guard from the cartridge body to avoid any damage to the diamond.
2. Using Torx 8 key, unscrew the black screw from the Verso top plate.
3. Remove the top plate from the cartridge body by pulling the screws off.
4. Remove the two countersunk screws from the top plate.
5. Insert the two M2,0 mm screws in the top plate.
6. Mount the top plate on the cartridge body. Hold the top plate with screw-threads hanging down and turn the cartridge body 180 degrees. Mount from above.
7. Mount the black screw in the top plate and tighten with appropriate force.
8. Mount the cartridge on the tonearm using the enclosed tool.
9. Mount the stylus with the stylus protection guard on the cartridge body.
2M Red accessories included the package
2M Red Maintenance Set included the package:
1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
2M Red Premounted accessories included the package:
1 x Stylus brush
2M Red Verso Maintenance Set included the package:
1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
The Audio Beat, August 2016
Exploring Ortofon's 2M Lineup
by Marc Mickelson
"...The 2M line has become a de facto reference for moving-magnet cartridges...it is due to both the sound quality of the various 2M models as well as the wide price range across the line... The differences among the four stereo 2M models occur in three primary areas: stylus profile, body material, and engine ...
... The 2M Black is "open, fast, detailed, vivid, full of vitality and sonically spectacular." It is a true high-resolution transducer that consequently puts great demands on the downstream electronics and speakers...
...On the other end, the 2M Red is far more forgiving than the 2M Black, but also less involving, at least in the context of my system (the turntable is a Technics SP-15 with an Audio-Technica ATP-12T tonearm, both in a Technics SH-15B2 base - red.)...
...with the 2M Blue ...you get the audiophile treatment: a full-range, highly resolving presentation that sounds neither stiff nor unforgiving. In fact, the 2M Blue's balance, both tonally and in terms of overall resolution, may be its greatest feat. It's an easy cartridge to listen to, and even novice listeners...
...While the 2M Black sounds more immediately impressive, the 2M Bronze is the more satisfying over the long haul, halving the difference between the Black's speed and resolution and the Blue's balance. In fact... it is a mixture of all of these sonic virtues. It's fast, but not ostentatiously so; it turns information into music, and it does this because it is better balanced, neither leaning in one sonic direction or another. I would say that it represents not just the 2M line's sweet spot but also its musical core. ..."
Hi-Fi News October 2008
The Ortofon 2M Red
Reviewed by Steve Harris and Paul Miller
"...a pleasing ambience...
...intimate, trembling quality...
...bass in proportion...
...realistic without going into hardness...
...sense of space even in the climaxes..."
Features & Specifications
Output voltage at 1000 Hz, 5cm/sec.
Channel balance at 1 kHz
Channel separation at 1 kHz
Channel separation at 15 kHz
20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force
Compliance, dynamic, lateral
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Internal impedance, DC resistance
Recommended load resistance
Recommended load capacitance
Cartridge colour, body/stylus
2M standard and 2M Verso cartridges weight
Premounted cartridge weight
Replacement stylus unit
2M Red (interchangeable with 2M Blue and 2M Silver)
with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78
