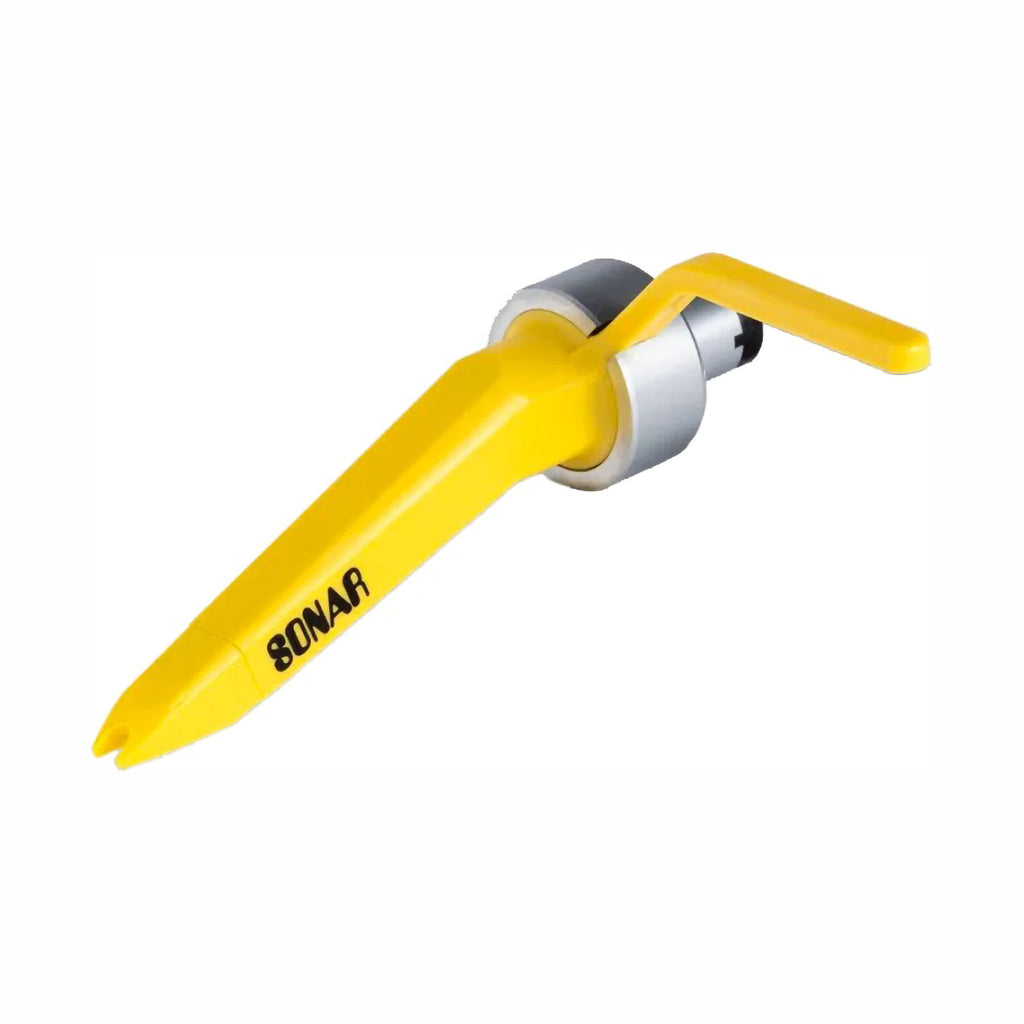

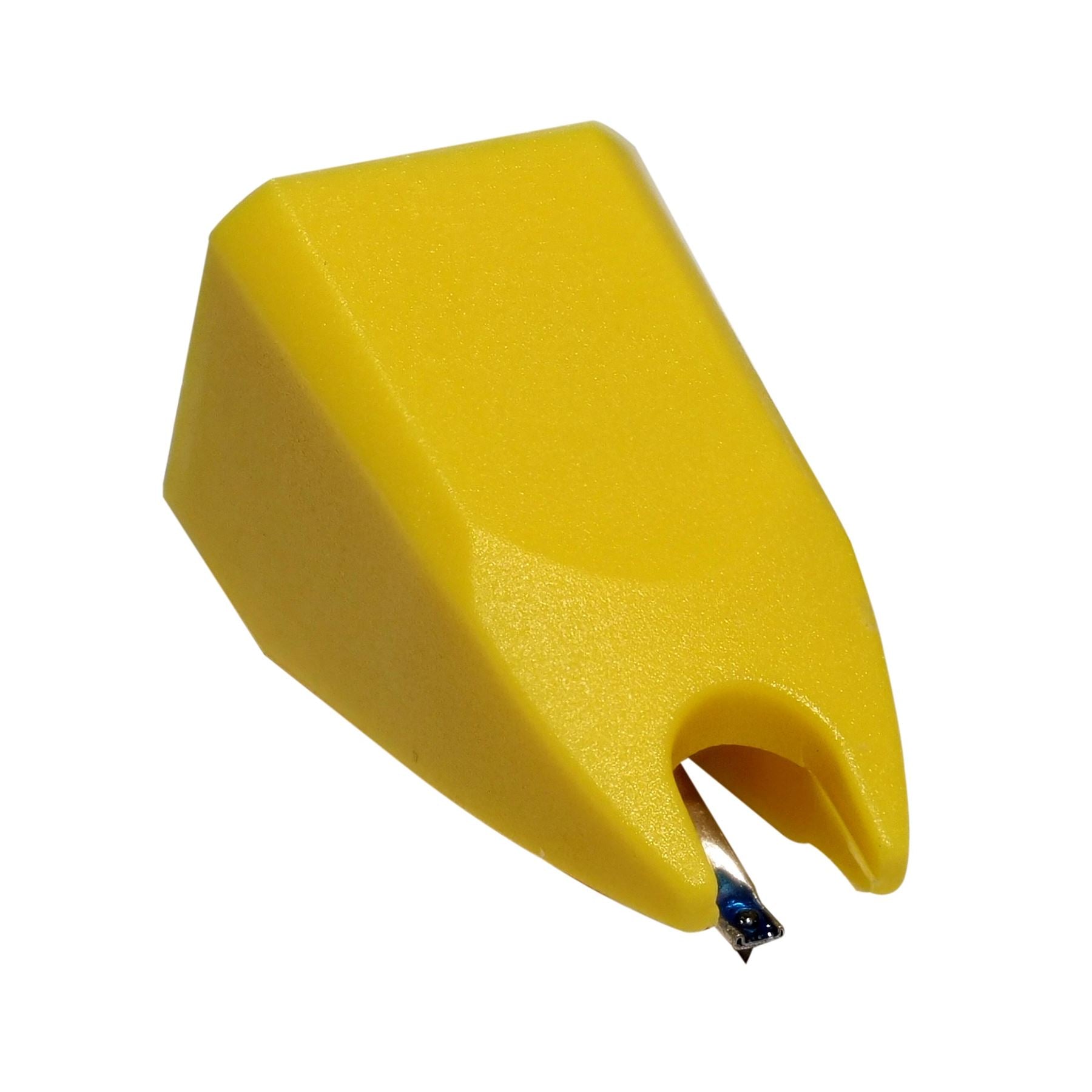

Stylus Pick it Sonar
Ortofon‘s Concorde series was highly acclaimed especially at professional DJ‘s. Suitable for all tonearms with SME union nut, Pick it Sonar is easily mounted and removed. This offers you the freedom to install your favourite cartridges on any suitable tonearm in no time. The body of this system is held in the Yellow Submarine style. Pick it Sonar offers a thrilling and exciting sound, which oozes of details and high fidelity, it unveils unheard precision, dynamics and sound stage in this price range. The Polycarbonate body provides high stiffness, which gives the sound its unrivalled dynamic character.
Features & Specifications
Output voltage
4.5 mV
Frequency response
20-22.000 Hz
Channel separation
20 dB @ 1kHz
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Spherical
Stylus tip radius
R 18 µm
Tracking force range
1.5-2.0 g
Tracking force, recommended
1.75 g
Tracking angle
20°
Internal inductance
750 mH
Recommended load resistance
47 kΩ
Recommended load capacitance
200-500 pF
Stylus colour
Yellow
Stylus weight
5 g
Recommended for Pro
Ject TT the Beatles Yellow Submarine and Ortofon Sonar Pickup.
