WiiM Mini Network Music Streamer

Super easy setup

WiiM Mini will pop up automatically in the WiiM Home app. Follow the in-app guide and start streaming music in less than 2 minutes.

Stream Hi-Res audio up to 192 kHz/24 bit.

WiiM Mini supports up to 192kHz, 24-bit audio output. That's the same as an artist's recording in the studio.
The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance.

All your content in one app

We support many popular music streaming services in our WiiM Home app with more to come. Or connect to your NAS or local files to stream your favorite music.

Spotify Connect

Use your Spotify app as your remote to control music playback to your WiiM Mini. Spotify Connect works for both Spotify Free and Premium users.

AirPlay 2

Stream audio from your iPhone, iPad or Mac computer to one or multiple audio devices at the same time.

Works with Alexa

Play music with other Alexa devices in a group or use voice to control it from another Alexa built-in device.

TIDAL Connect

Use your TIDAL app as your remote to control music playback through WiiM Mini.

Play music everywhere with multi-room audio.

Building a wireless multiroom system has never been easier. Group WiiM Mini with other AirPlay 2 speakers, Alexa-enabled devices, or another WiiM Minis to have a multi-room/synchronized audio experience.

Automate your routines

Make your life easier by automating your routines. For your sleeping and wake-up routines, create a routine to wake up or fall asleep to your favorite music, station, or podcasts. Or, use your Alexa to create routines.

Works with Siri and Alexa

Connect WiiM Mini to your existing Echo or HomePod and use Siri or Alexa to select music,control playback volume, and more.

Technology

High-Res Audio

WiiM audio devices provide the capability to play Hi-Res lossless audio content from Spotify, Amazon Music, TIDAL, Deezer, Qobuz, and more. It supports up to 192kHz, 24-bit audio output which is the same as artist recordings in the studio . The integrated TI stereo DAC provides high-quality analog audio output with 106-dB SNR, dynamic range, and -92dB THD+N performance, outstanding in all audio categories.

Multi-room and stereo pairing

Use the WiiM Home app to play perfect audio-synchronized music throughout your home. With our hardware, algorithm, and software optimization, we can achieve less than 150uS (0.00015s) synchronization accuracy among speakers as long as your speakers are in the same wireless network.

In addition, you can join two speakers connected with WiiM Mini to create a stereo pair for a wider and more immersive sound experience. It also supports multi-room and various audio inputs such as Wi-Fi-based streaming music, Bluetooth, and Aux input.

Gapless Playback

Precise gapless playback is important to your listening experience. With precise gapless playback, the playback timing is guaranteed to be identical to the source. There are no gaps or overlaps (crossfading) between successive tracks. The gap will be very noticeable in "continuous" music such as live concert recordings, some classical music, etc.

Whereas various software, firmware, and hardware components may add substantial delay associated with starting the playback of the track, our player uses two decoders to remove the extra samples at the beginning and end of each file and combines them. This works for all the supported music services and music in your phone or local network.

Gap

Gapless

Adaptive EQ

Breakthrough listening experience requires both high-res audio content and a high-quality playback device . When adaptive EQ is enabled, the music genre information and other tags included in the audio content are used to adjust the frequency in real time by bringing in rich audio to capture every music detail or make human voices clearer in the podcast.

Auto calibration of audio delay

The connected receiver or speaker may have different audio path latency due to different hardware, software and DSP processing. To maintain the synchronization of each system, it's desirable to measure the audio path delay automatically. By leveraging the on-device microphone and proprietary algorithm, the entire audio path latency is measured automatically when it's connected with the receiver or speaker. The latency value will be used to maintain the perfect audio synchronization in wireless multi-room or multi-channel playback.

At a Glance

Bluetooth

Voice control

Size-defying sound

Audio Codec

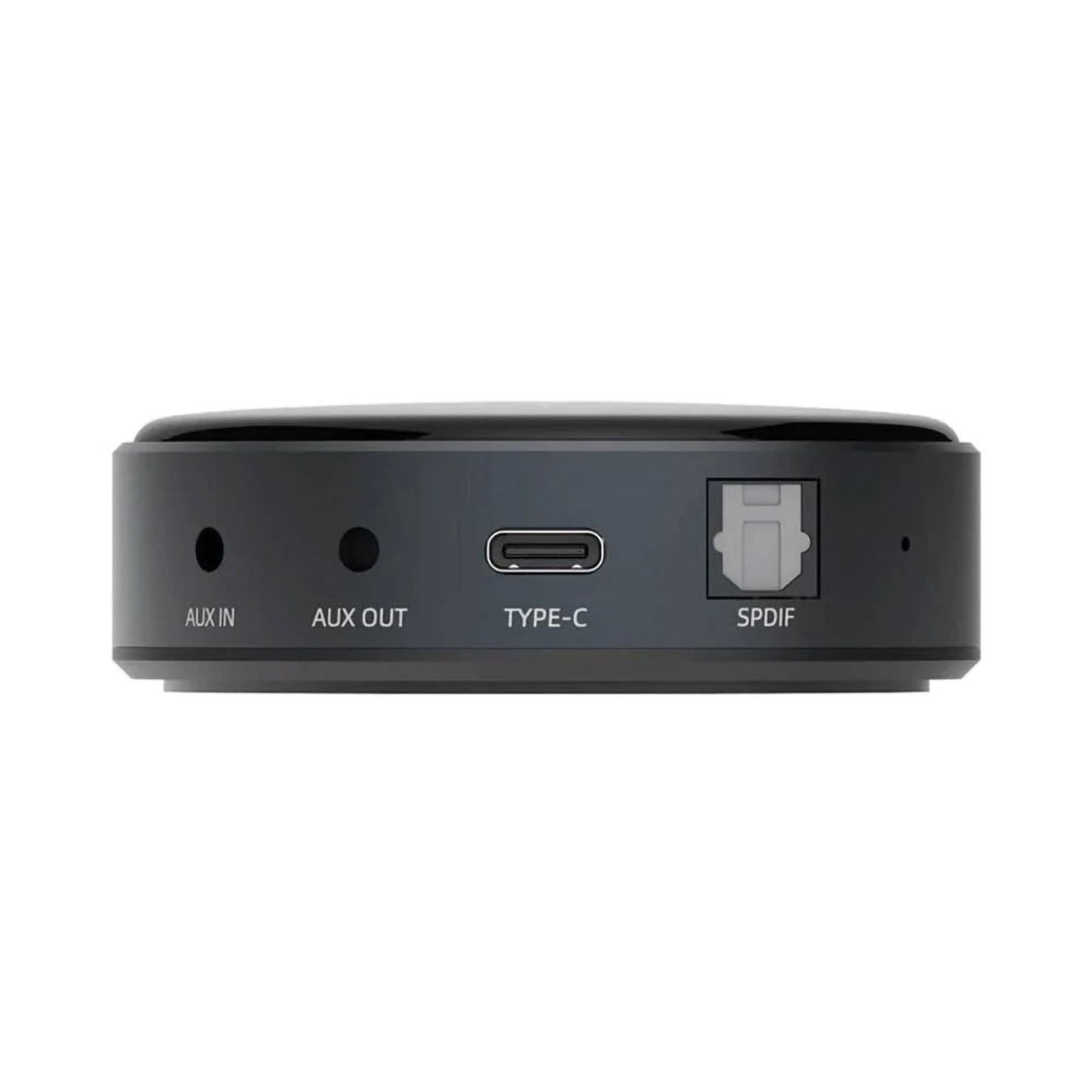

Audio Connections

WiFi

Dimensions and Weight

Dimensions:69 × 69 × 24 mm

Weight:40g

Audio Codec

MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG

Wi - Fi

Dual band Wi-Fi supports 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz network

Bluetooth

Bluetooth 5.2, SBC and AAC codec, BT receiver and transmitter (with SW update)

Line in

1Vrms

Line out

Line in to Line out：

Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB

BT in to Line out：

Power Output=2Vrms
THD+N Ratio=0.009%
SNR=102dB
Crosstalk=-106dB
Dynamic Range=96dB

SPDIF

Line in to SPDIF out：

Power Output=-3dBFS
THD+N Ratio=0.005%
SNR=102dB
Crosstalk=-103dB
Dynamic Range=97dB

BT in to SPDIF out：

Power Output=0dBFS
THD+N Ratio=0.005%
SNR=297dB
Crosstalk=-364dB
Dynamic Range=213dB

Power Supply

5V,1A

LED

Three color status LED - Red, Green and White.

WiiM Mini LED Behaviors >

Button

Capacitive touch - Play/Pause, Volume+, Volume-
