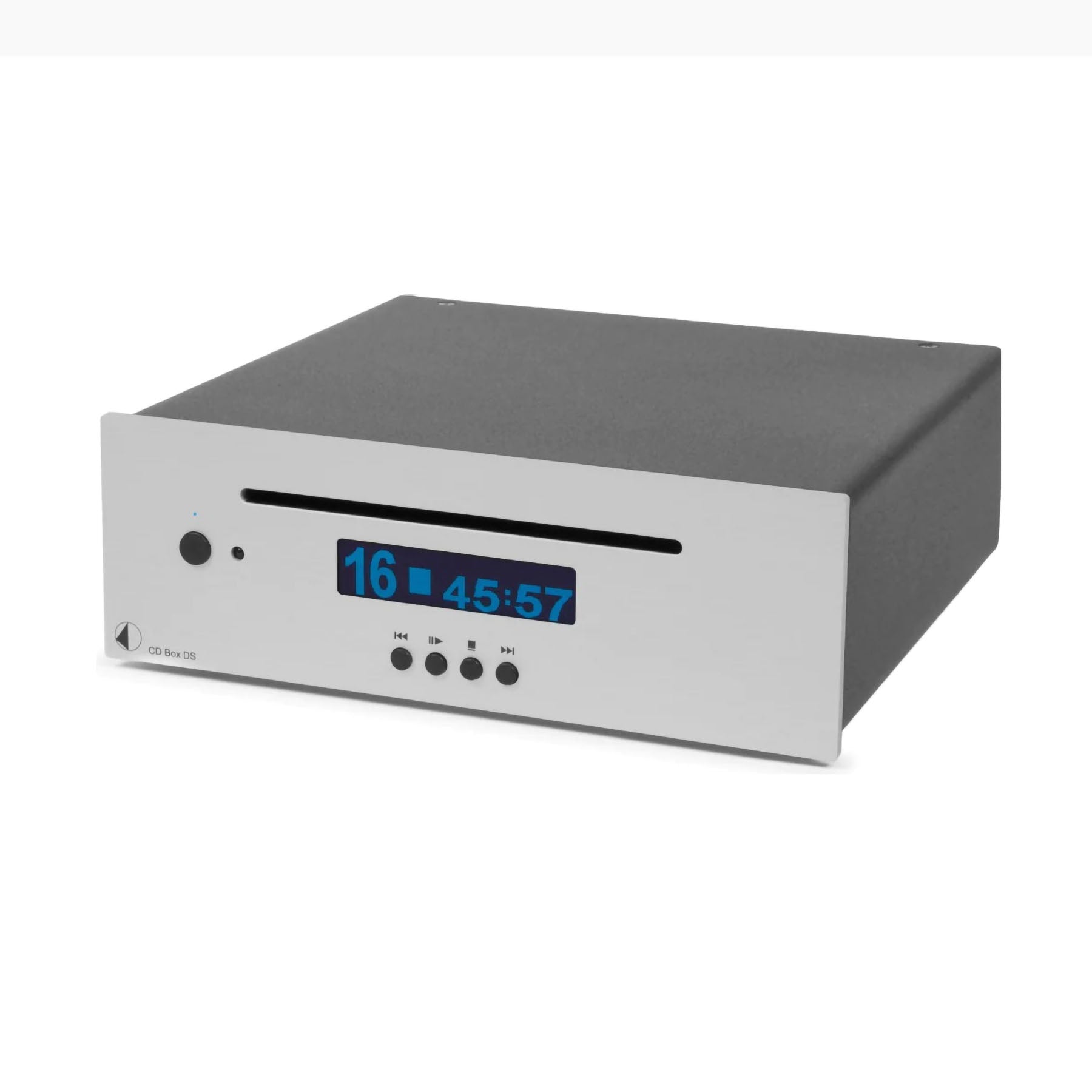

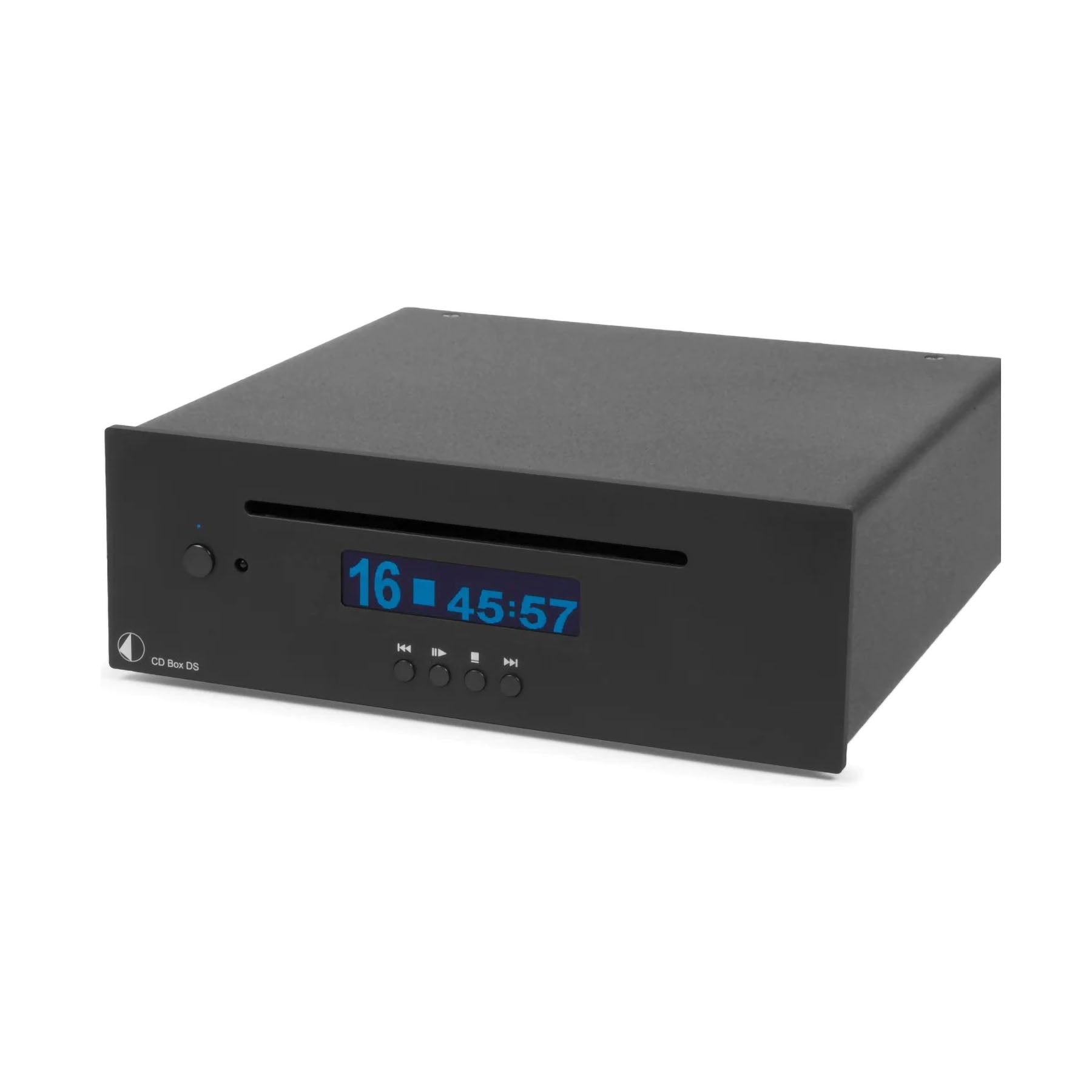

Pro-Ject CD Box DS Compact CD Player

The CD Box DS (as well as CD Box S) is designed exclusively for playing audio CDs on the "Red Book standard“ by Philips and is in this discipline, a true master of his trade. In addition to a high-quality, durable drive is essential for the perfect CD playback as well as a servo control optimised for audio playback. Our servo system allows real-time scanning with minimal jitter. Together with advanced D/A converter blocks a real high-end reproduction is achieved, as it can not be found in this price range.

Features

• 24bit/192kHz Burr Brown DAC (PCM1796)
• 4-layer suspended CD drive
• Excellent only-CD transport
• "Blue tiger“ servo board for 1:1 CD playback
• Luxurious slot-in mechanism
• DC power supply (<1watt standby power consumption)
• Massive 3mm aluminium faceplate
• High contrast dot-matrix display
• IR remote control with volume level adjustment of Pro-Ject amplifiers
• Solid cabinet protects against vibration and interference

Supports:

CD, CDR, CDRW, HybridSACD

Freq Response:

20Hz 20kHz, ±0,15dB

Noise Floor:

100dB / 1V

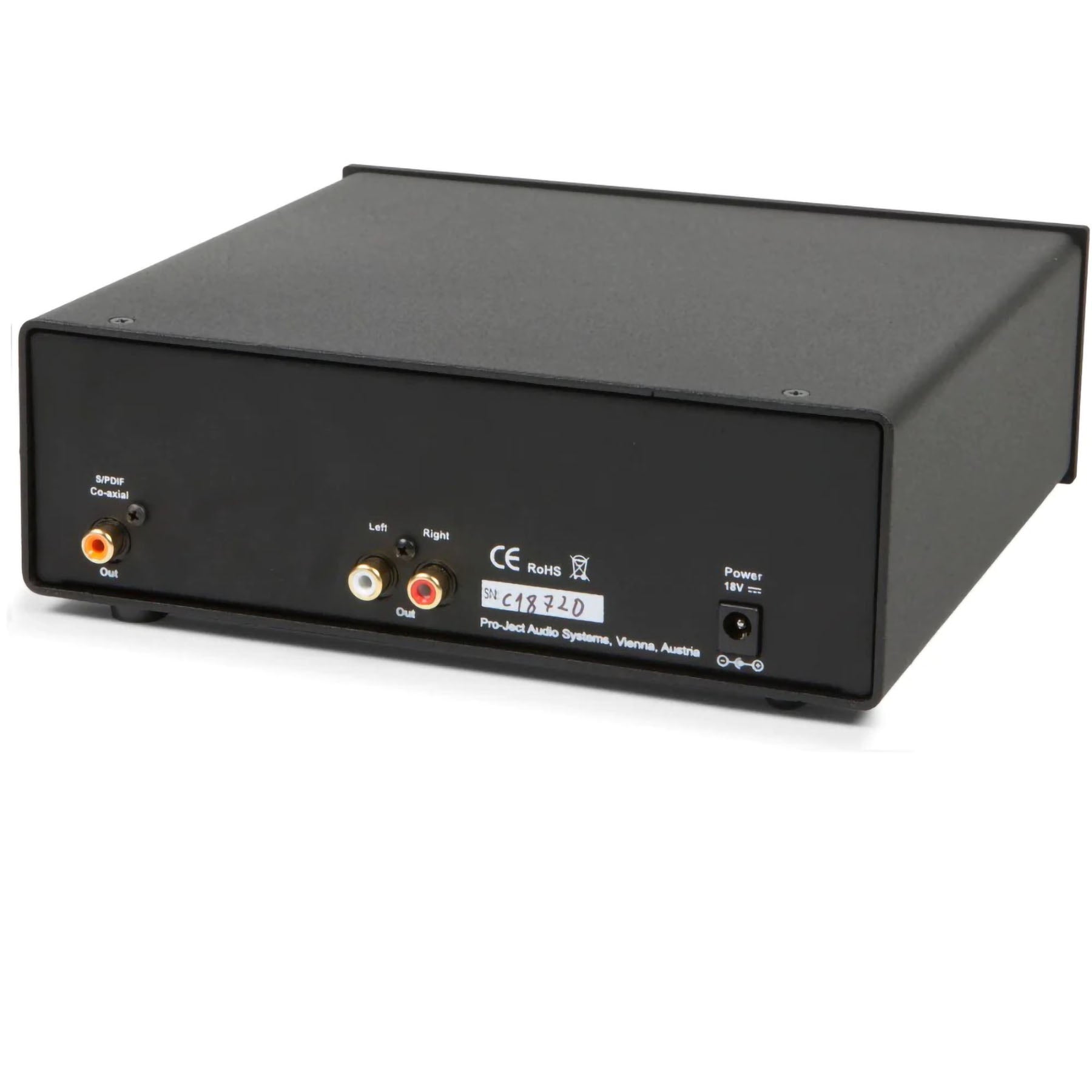

Linelevel Out:

1 Pair RCA/Phono Sockets

Output Voltage:

2Vrms

Digital Output:

1x Coaxial (S/PDIF)

DAC:

Burr Brown PCM 1796 24Bit/192kHz

Oversampling:

8Times

Outboard:

18V/500mA; 220240V, 50Hz

Standby Power Consumption:

< 1 Watt

Power Consumption:

18V/400mA DC

Dimension (WHD):

206 x 72 x 194mm

Weight:

2670g (w/o Power Supply)
