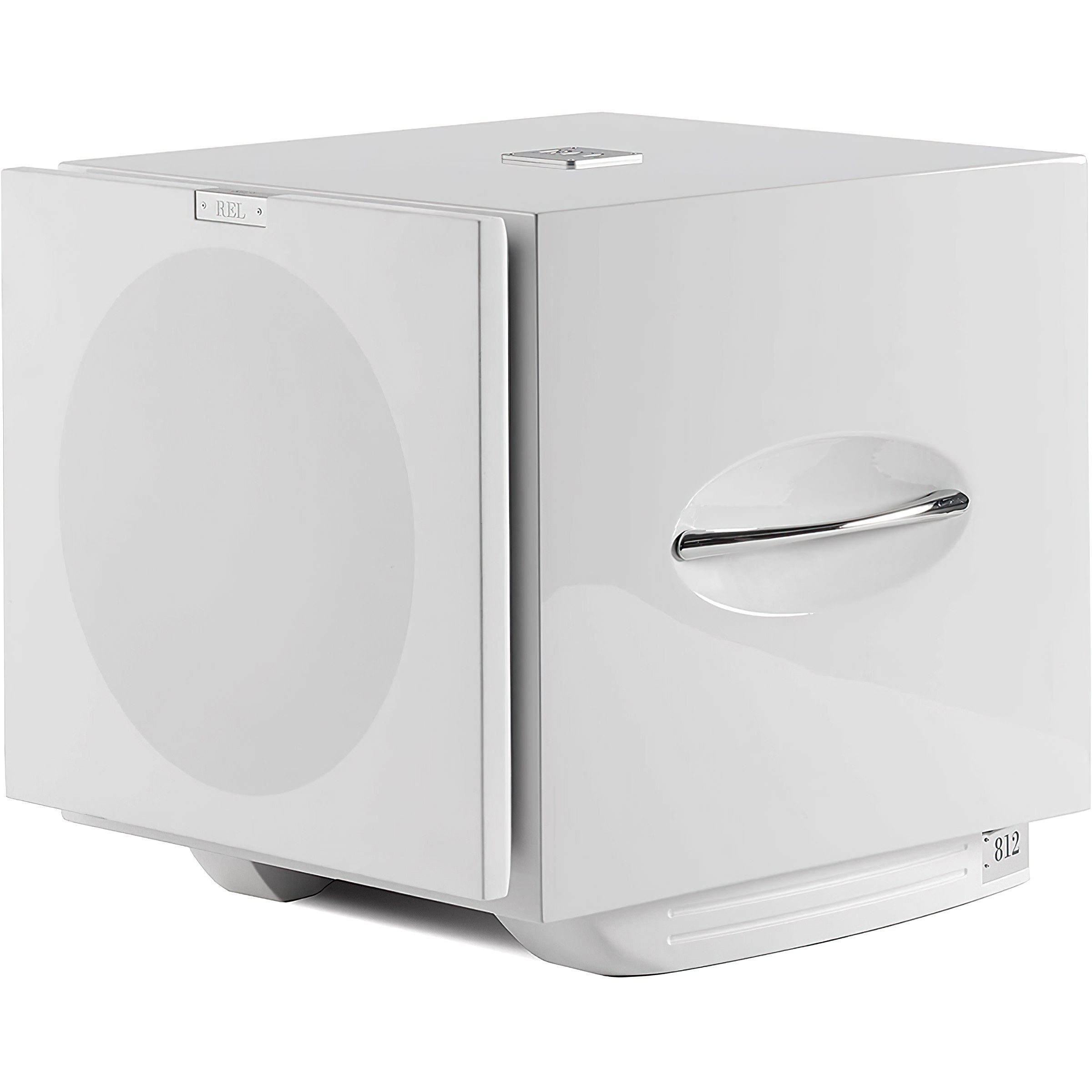

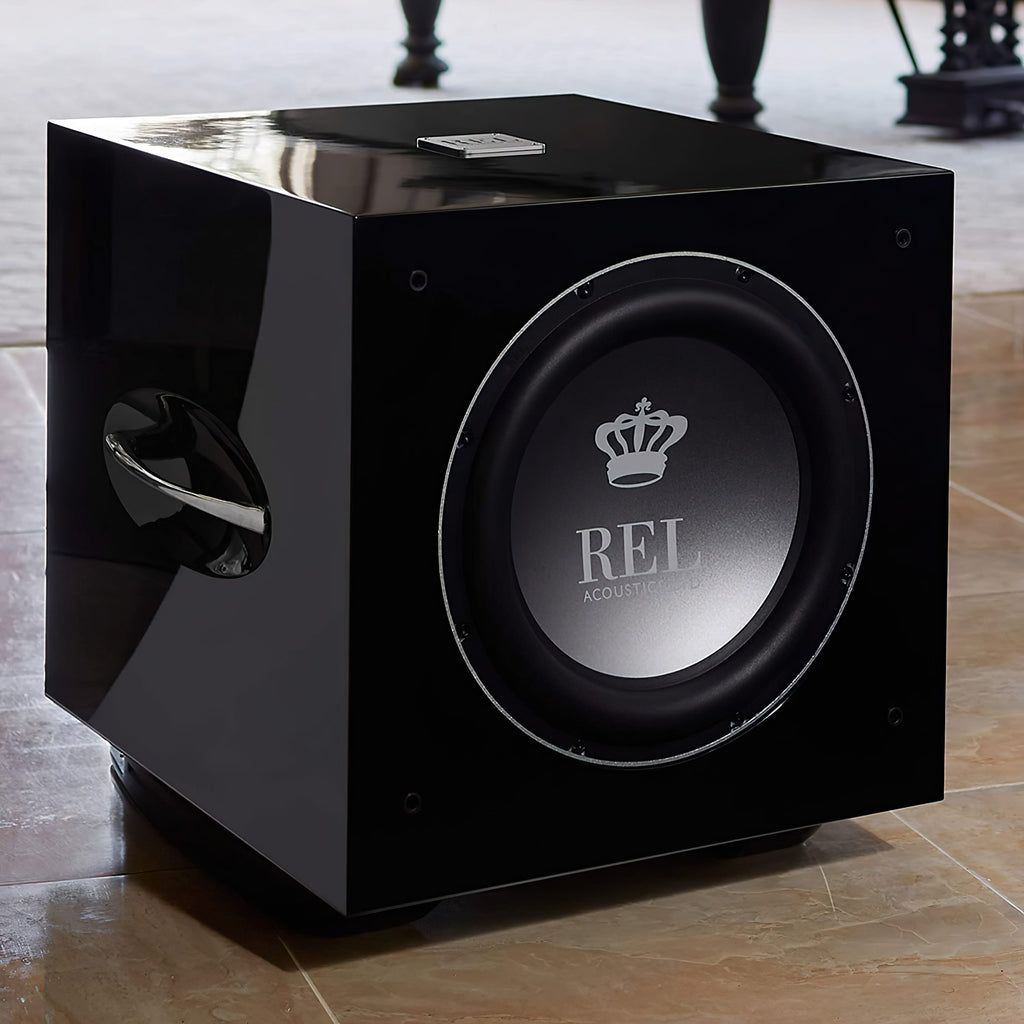

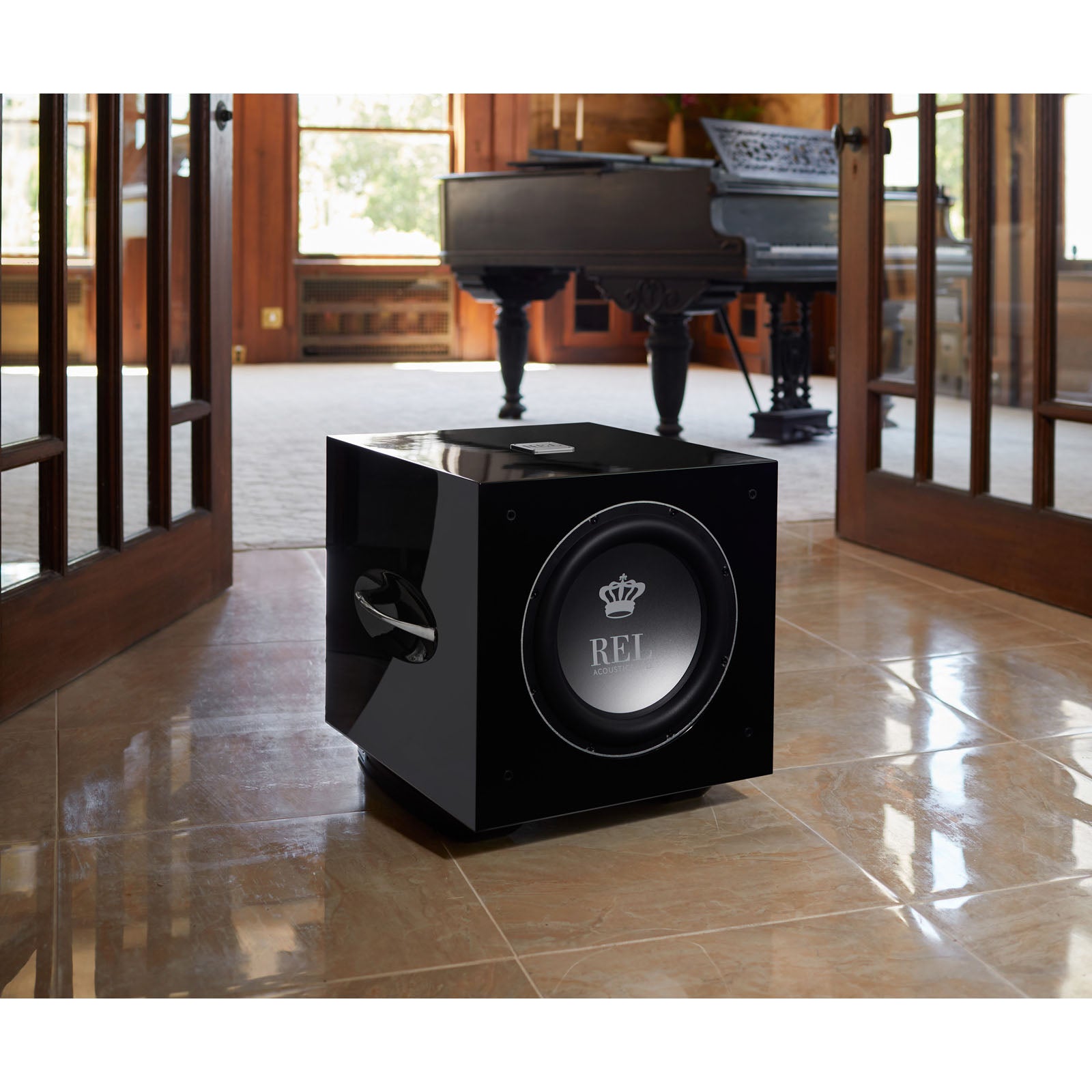

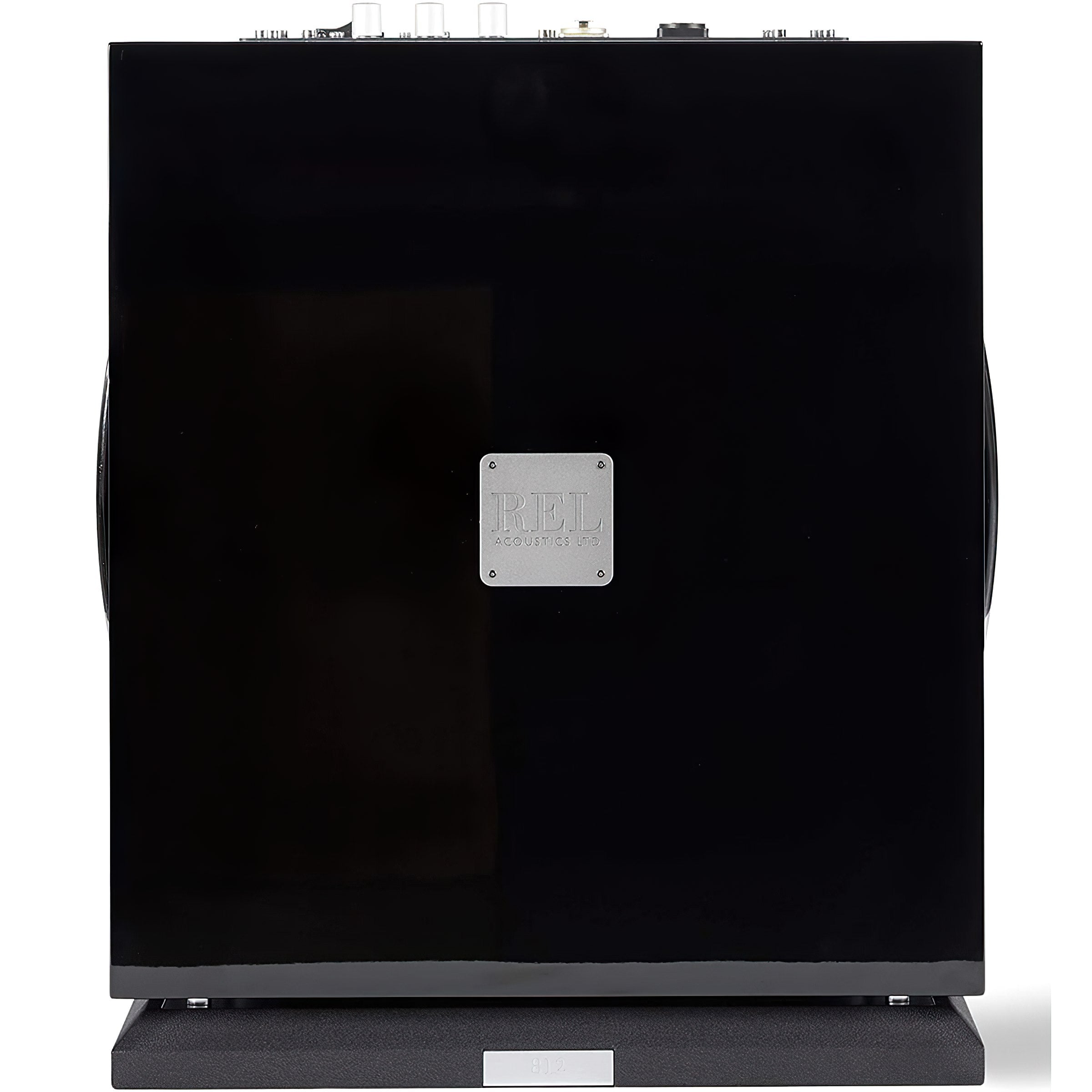

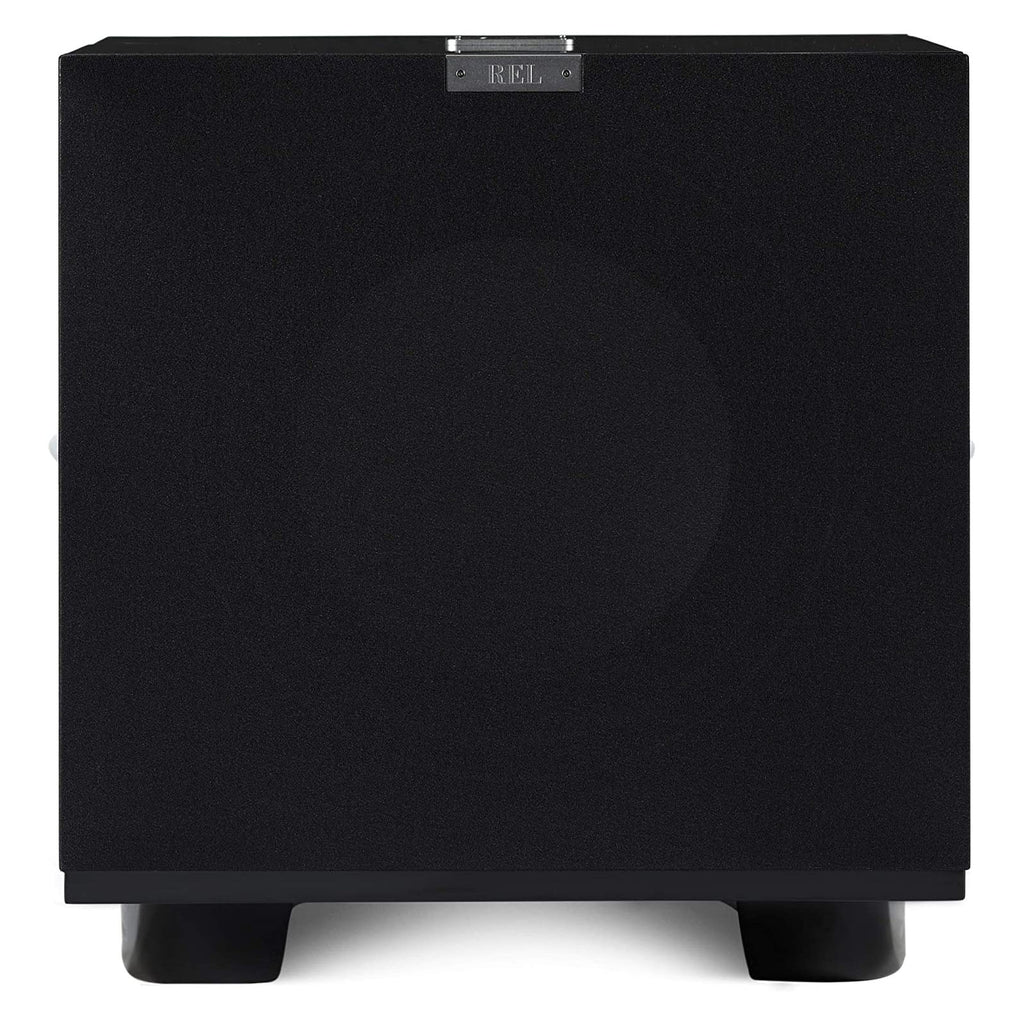

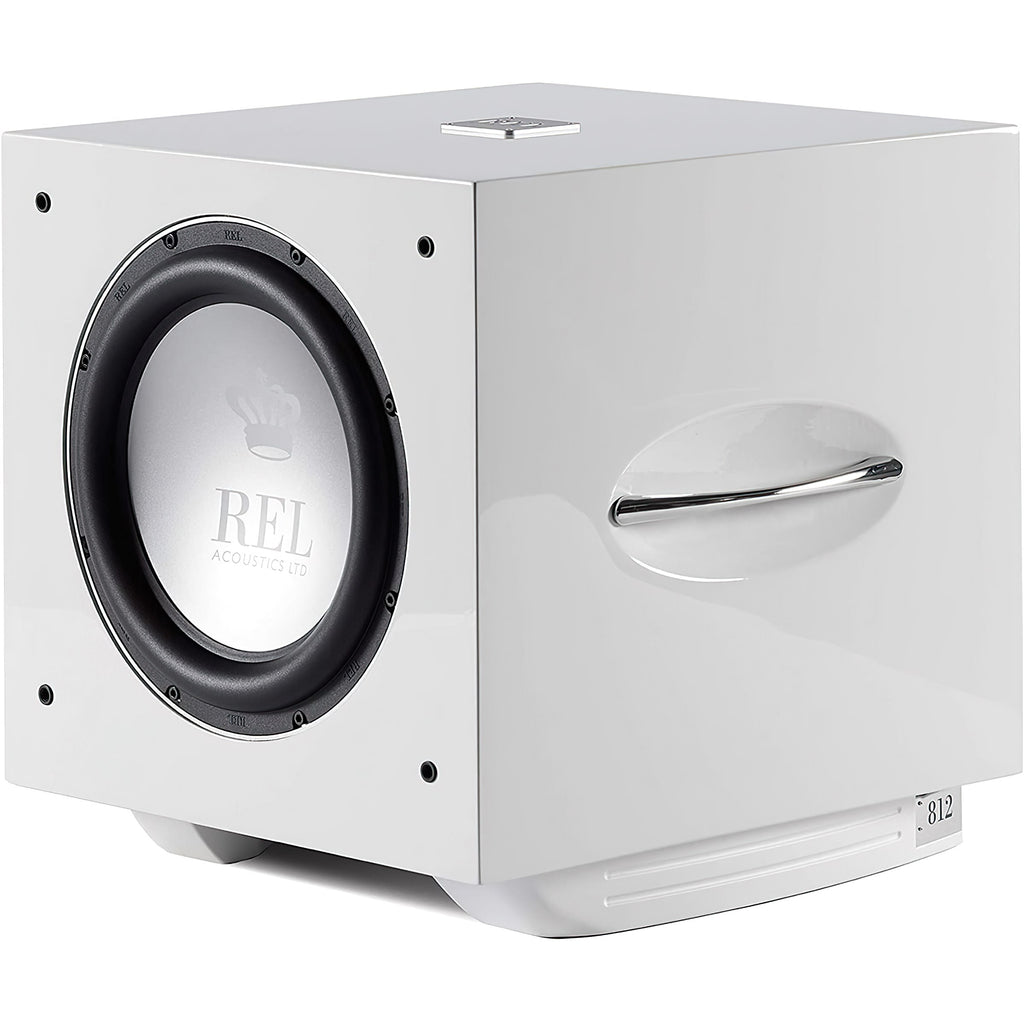

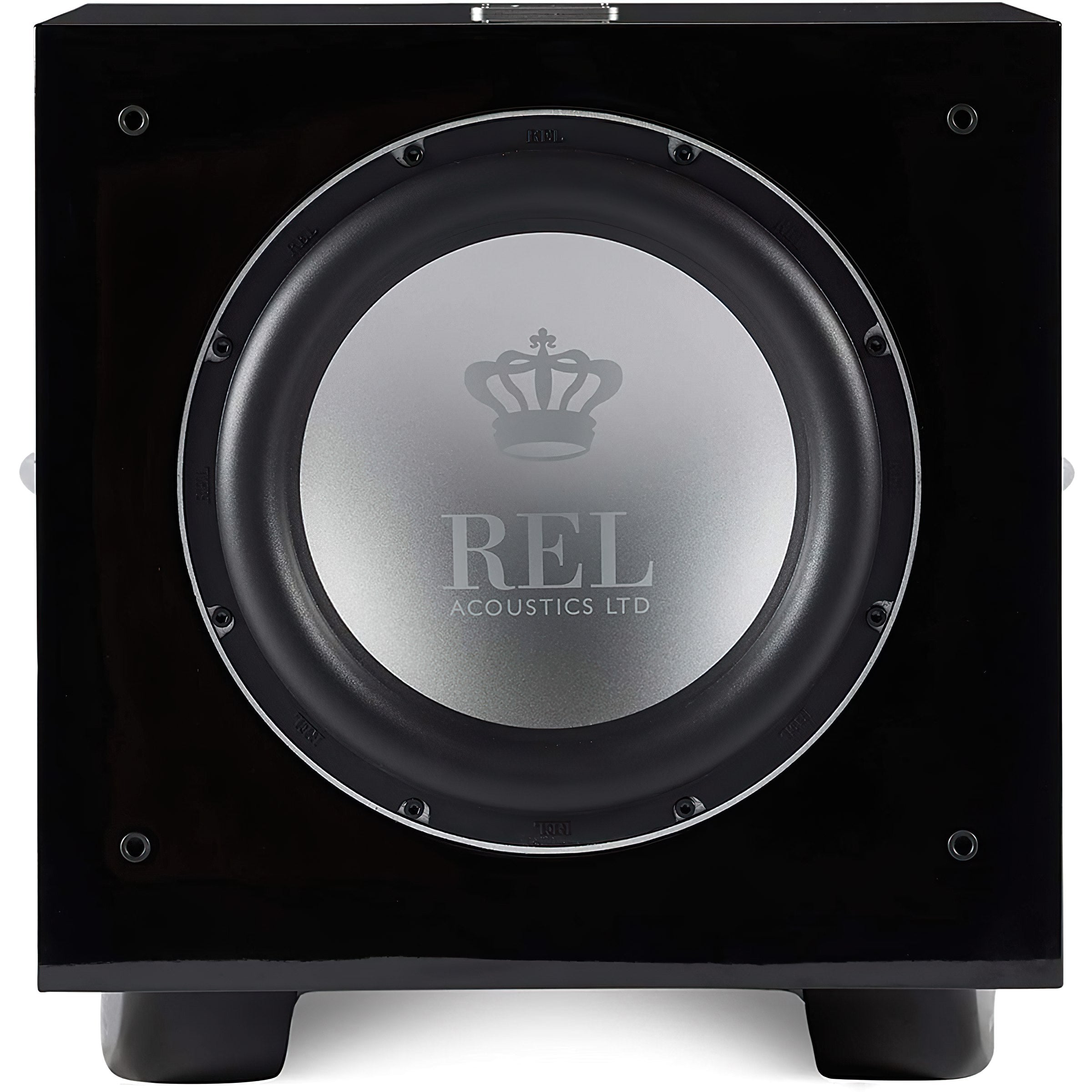

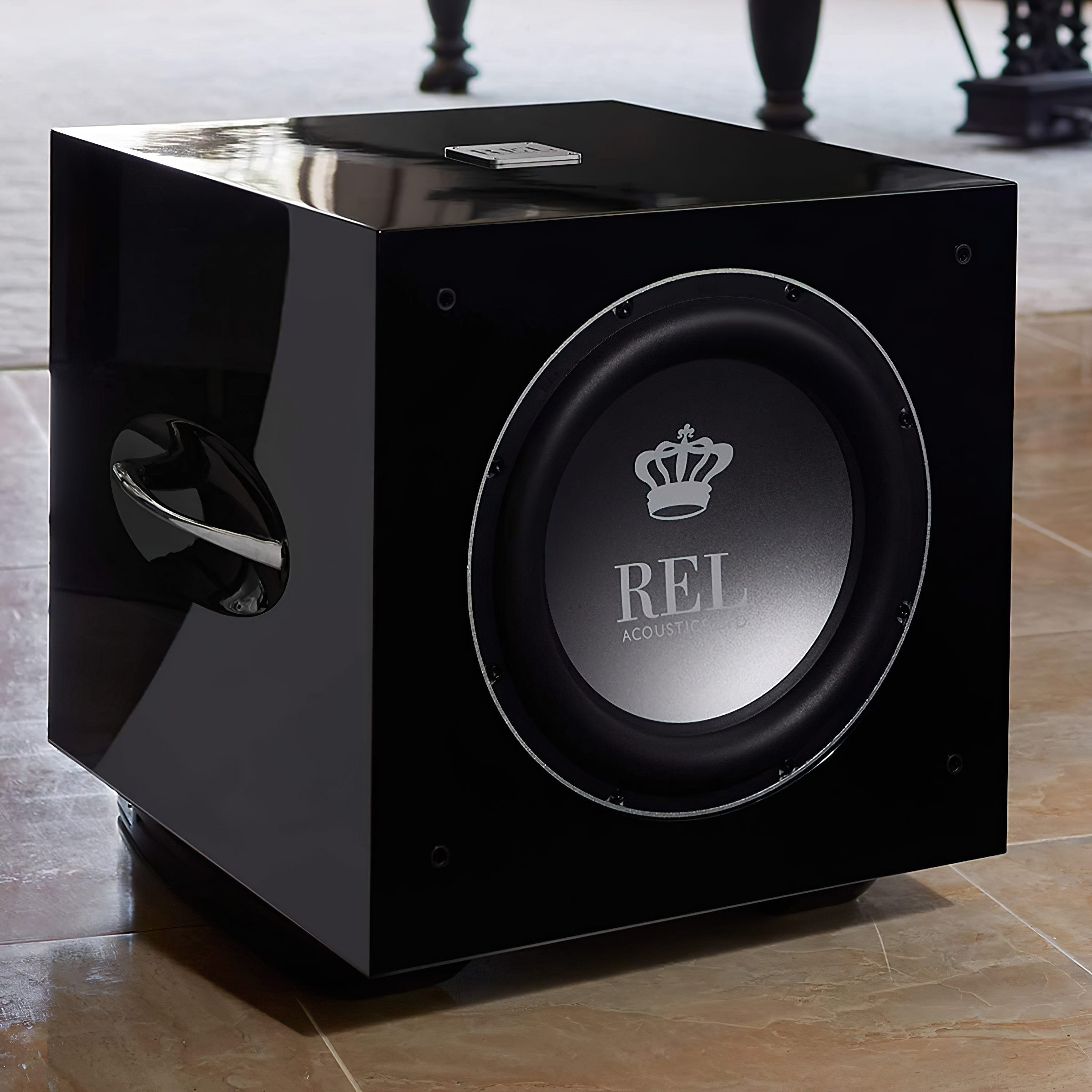

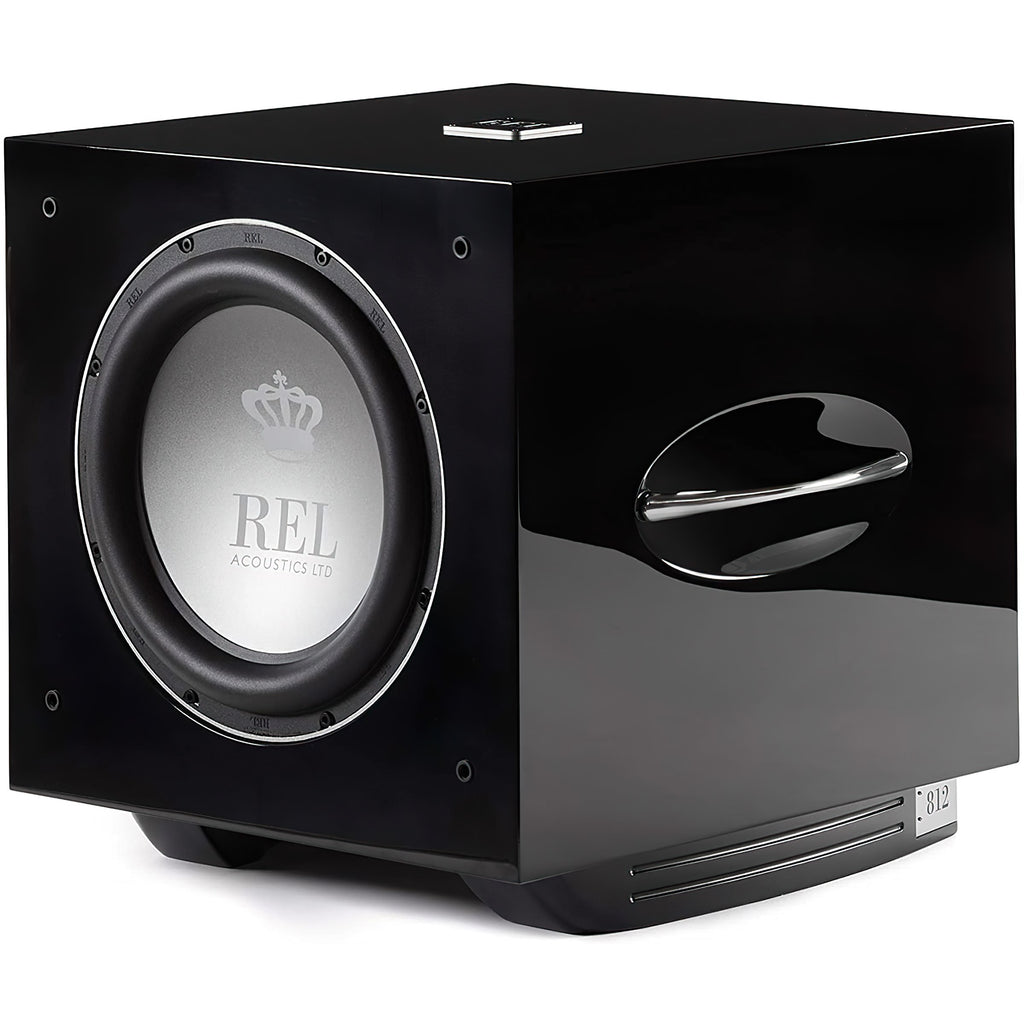

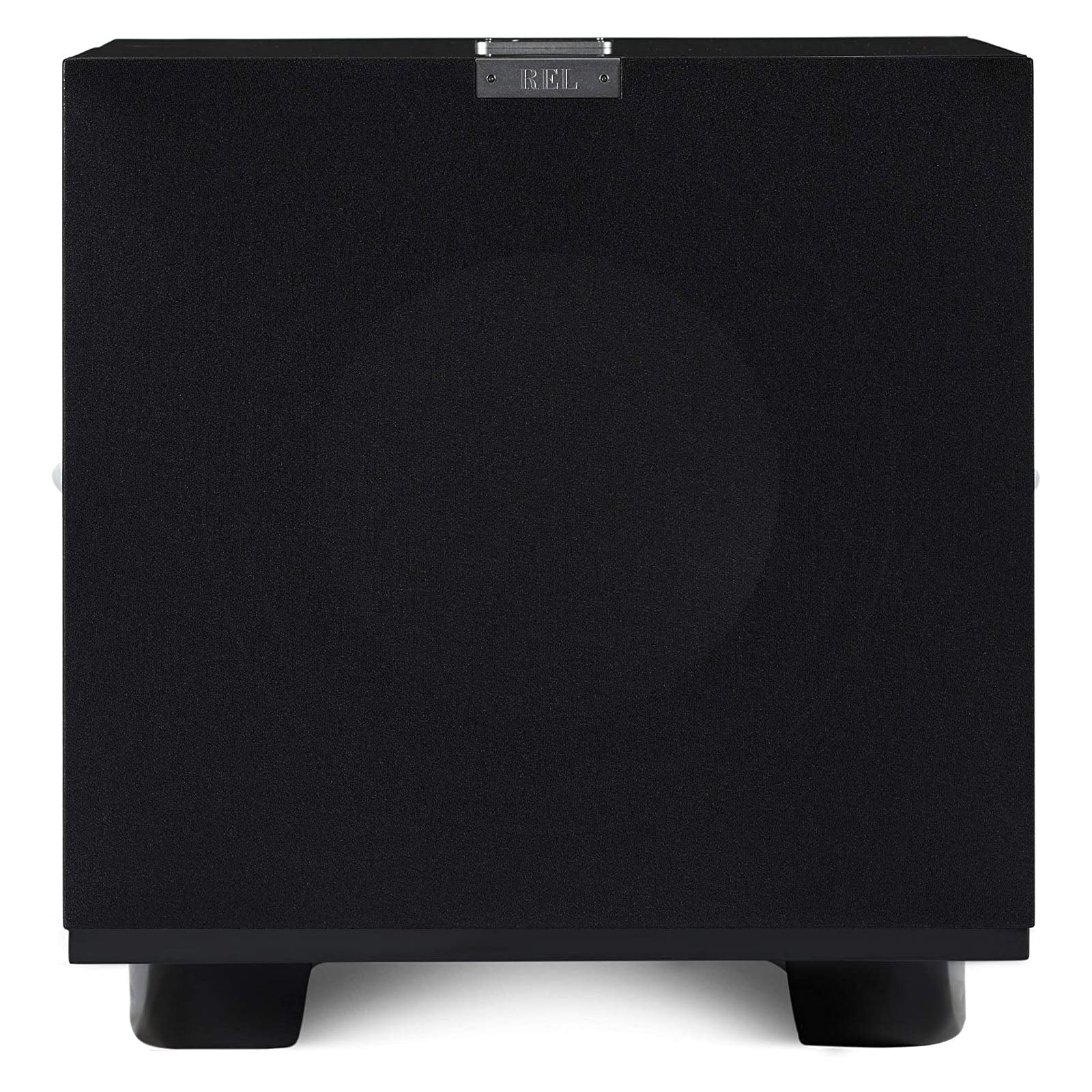

REL Acoustics S/812 12 inch Front-firing Active Driver, Down-firing Passive Home Subwoofer
REL Acoustics S/812 12 inch Front-firing Active Driver, Down-firing Passive Home Subwoofer
Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: United Kingdom
S/812
Serie S
S/812 takes REL’s medium chassis concept to reference-like levels of performance and does so with style, beauty and devastating power. It delivers incredible levels of all ‘round performance for both music and film sound, gives customers a taste of what our reference models offer, and does so at a fraction of the cost.
The All New S/812
Shattering Performance Barriers
For S/812, every aspect of the previous generation’s inner workings were examined without regard to its critical and customer-driven success. We turned a fresh eye to power requirements, driver improvements, and specialty filters, upgrading each to extract all the extra performance possible. All this alongside the cabinet refinements necessary for those upgrades to emerge cleanly. This latest S range is a triumphant development that has exceeded every expectation of our design team.
Our requirements were for far stronger deep bass output between 19-35 Hz, vastly improved theatre dynamics, and an even more open and spacious soundfield which benefits both music and film. We turned to our NextGen5 amplifier, tuned to 800 watts, with huge reserves of power beyond this, added a light film of carbon fibre to the rear of the driver to handle the extra power, and developed two new sets of custom filters to extract the utmost in brute force and spaciousness. Finally, we imbued 812 with the ability to be stacked in 4- or 6-unit line arrays, just like our reference models.
Invisible Upgrades to S/812’s Bass Engine
Pure Carbon Fiber Backing
S/812 required upgrades to its ContinuousCast™ Alloy Cone to allow it to survive the massive power upgrades. To permit its thin, aluminum cone to survive 800 watts and incredibly long stroke, we added an ultra-lightweight backing of pure carbon fibre, strategically placed over portions of the rear surface of the cone. This produces two benefits; it strengthens and stiffens the cone and also eliminates reversion, wherein the backwave inside the cabinet is now prevented from interfering with the main launch of bass into the room. The result is more accurate and far louder deep bass.
There is Nothing Passive About These

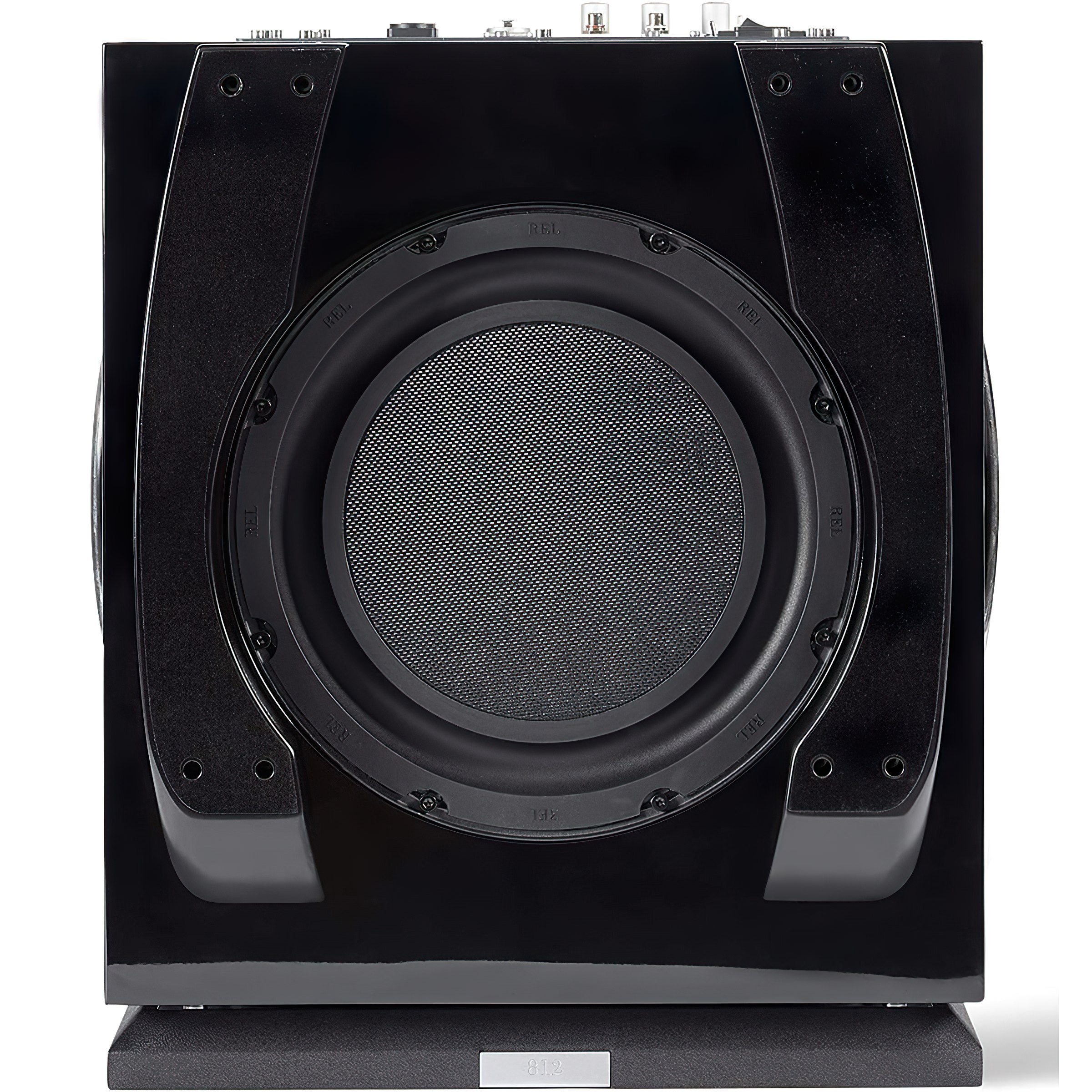

Carbon Passive Radiator
Our uniquely tuned passive radiators use special suspensions, now with an additional 30mm of linear travel, to produce performance far beyond conventional subwoofers. Our new SuperProgressive™ passive radiator produces extremely long travel allowing for very loud output while retaining the variable stiffness of its suspension. This allows it to act like a sealed box compact 12” design at low volume and a high output 14” design at its limit.
Warning: Power Amplifier on Steroids
800 watts and Counting
At 800 watts the NextGen5 amplifier is borrowed from our reference models and rocks huge reservoirs of power and current. The 45% increase in power (previous version was 500 watts) is needed to deliver both the profound output levels needed for modern theatre, as well as to produce the deepest bass in a high end 2-channel system. This increase in power is necessitated by our development on the musical front of an all-new circuit termed PerfectFilter™ that balance both frequency extremes.
PerfectFilter performs two seemingly disparate qualities; extending the strong, even response of the extreme low end of bass frequencies while simultaneously opening up air and delicacy in the middle and high frequencies of one’s system. Additionally, we applied customized PureTheatre™ filters to allow S/812 to deliver the most awe-inspiring theatre effects ever offered in a classic REL.

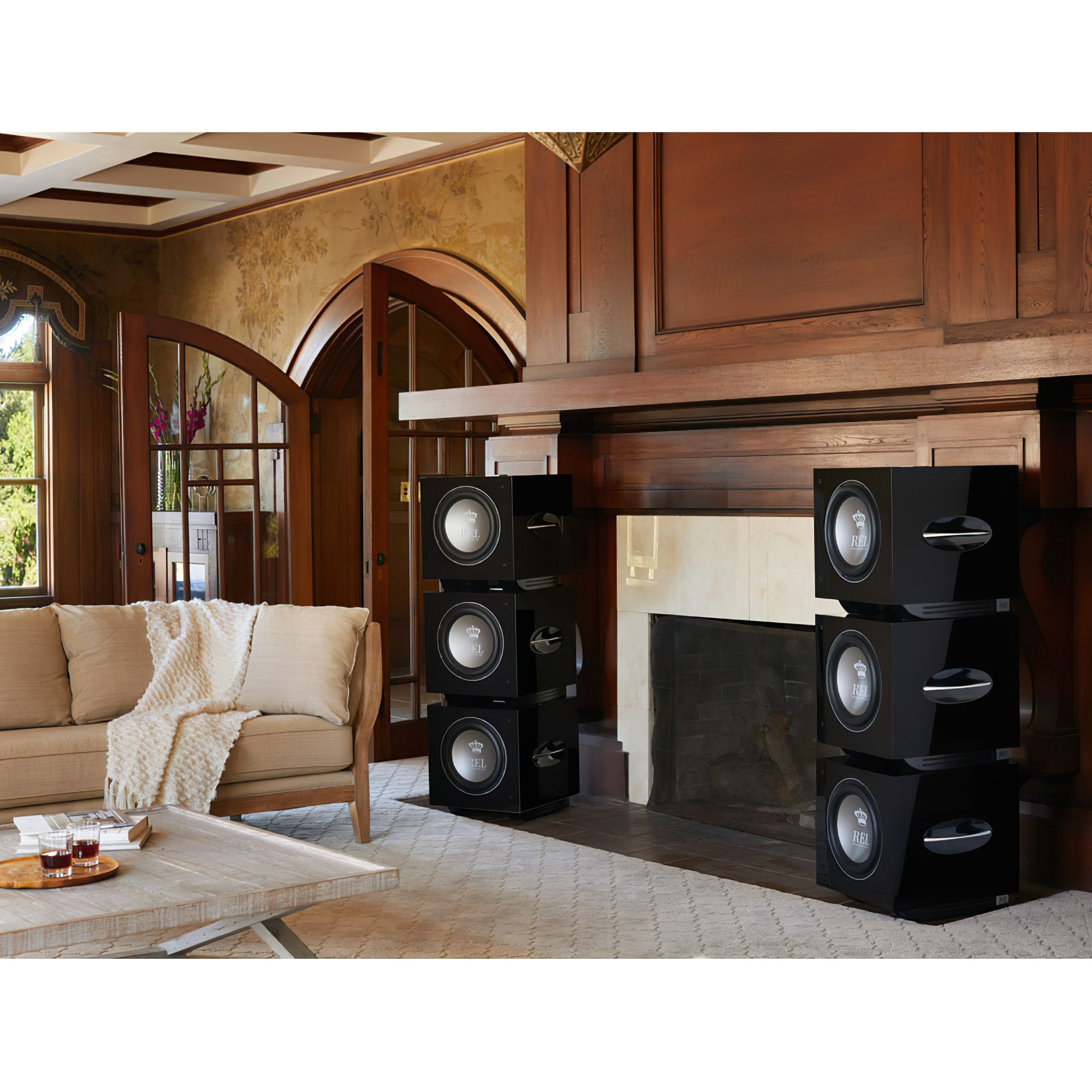

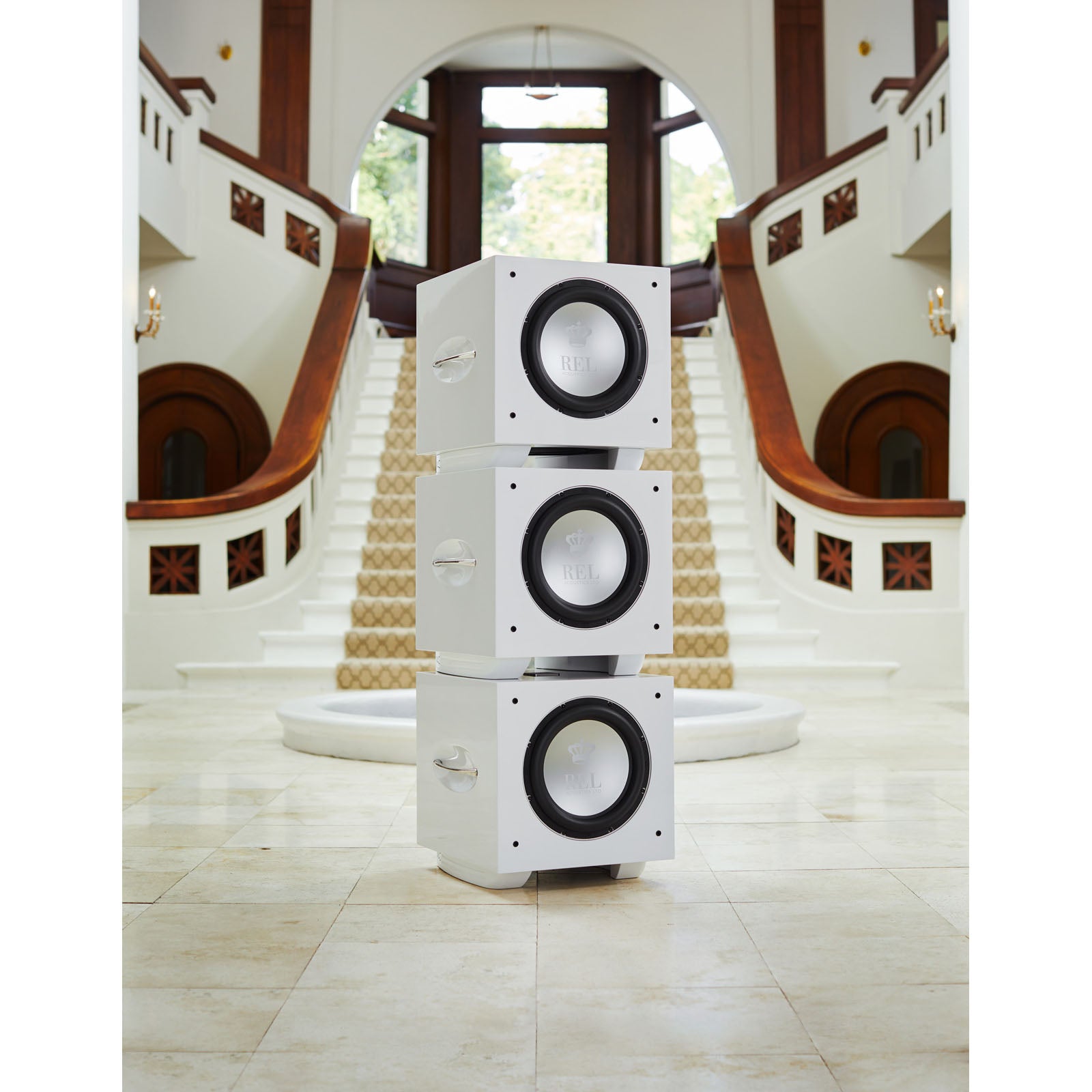

Serie S Line Array
Stacked for Ultimate Performance
In the real world, bass occurs with width, depth and height. By stacking up to three units per side (stereo or theatre main L-R speakers) the proper perspective and height of sonic events are illuminated. This elevates reproduction from conventional stereo or theatre to a floor-to-ceiling panoramic, full scale perspective of each sonic event. Reviewers are lining up to marvel at the transformation of music and film into the full-scale representation that REL Line Arrays uniquely deliver.
Reviews + Awards
"A friendly warning: A pair of S/812 changes the personality, the emotional output, of a system. Further, to a substantial degree it changes your relationship with familiar recordings. And prepare to feel a little deflated when you remove it from the system. It’s like air being released from a balloon"
The Absolute Sound
"What really impressed me isn’t just the power and depth of the bass, but also its nimbleness. The S/812 can deliver the kind of fast and precise low-end that not only suits music replay, but also picks out key low frequency effects in the best movie soundtracks. " Read More +
Home Cinema Choice
"The REL S/812 is a genuinely impressive subwoofer that manages to combine low-end extension with powerful amplification to produce a performance that’s responsive, controlled and highly effective. This sub goes deep and, even on its own, had absolutely no trouble filling my home cinema with low frequency energy. However, this is no blunt instrument, and the S/812 is capable of astonishing deep bass that’s delivered with a surprising amount of subtlety and grace."
AV Forums
Type

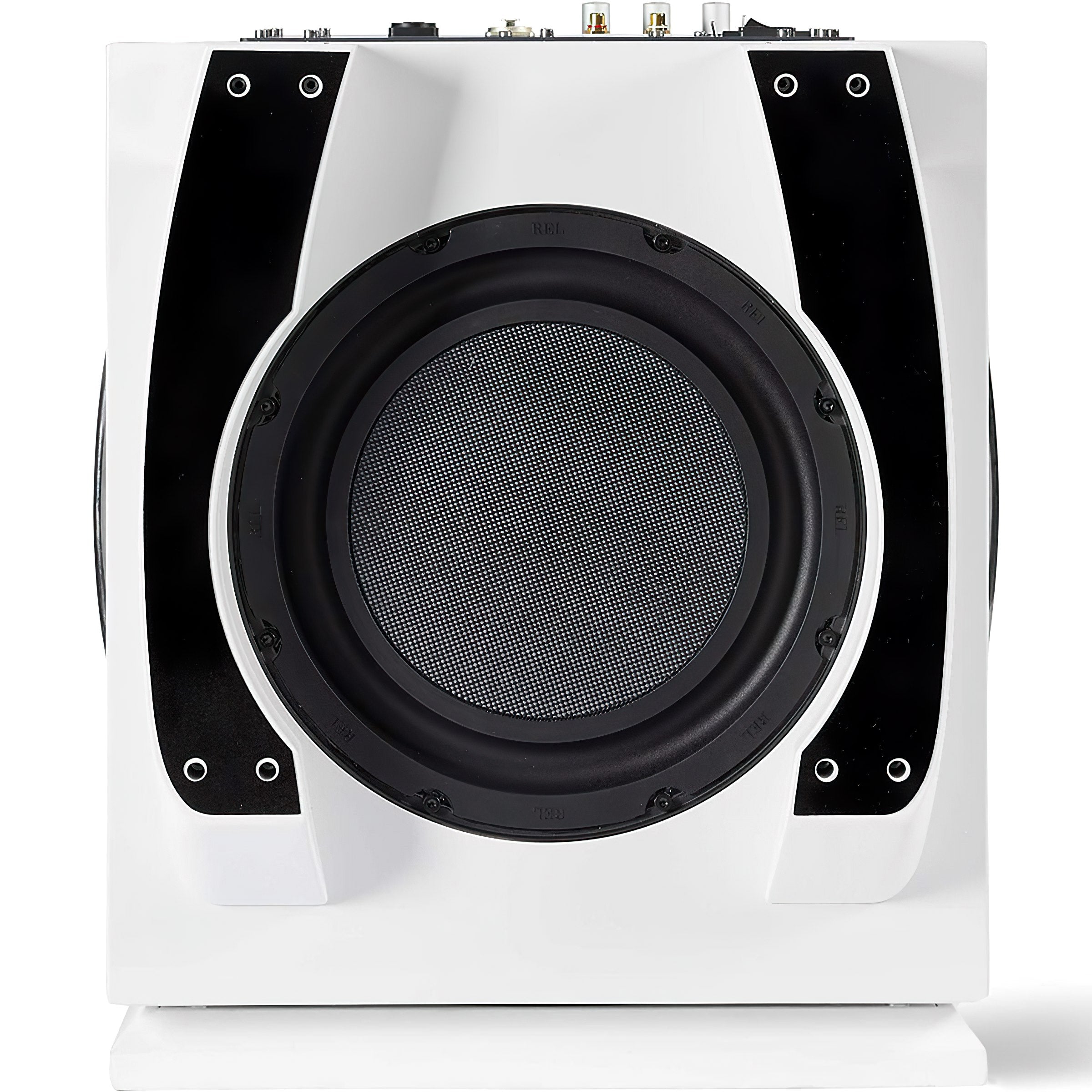

Front-firing active driver, down-firing passive
Active Driver Size & Material

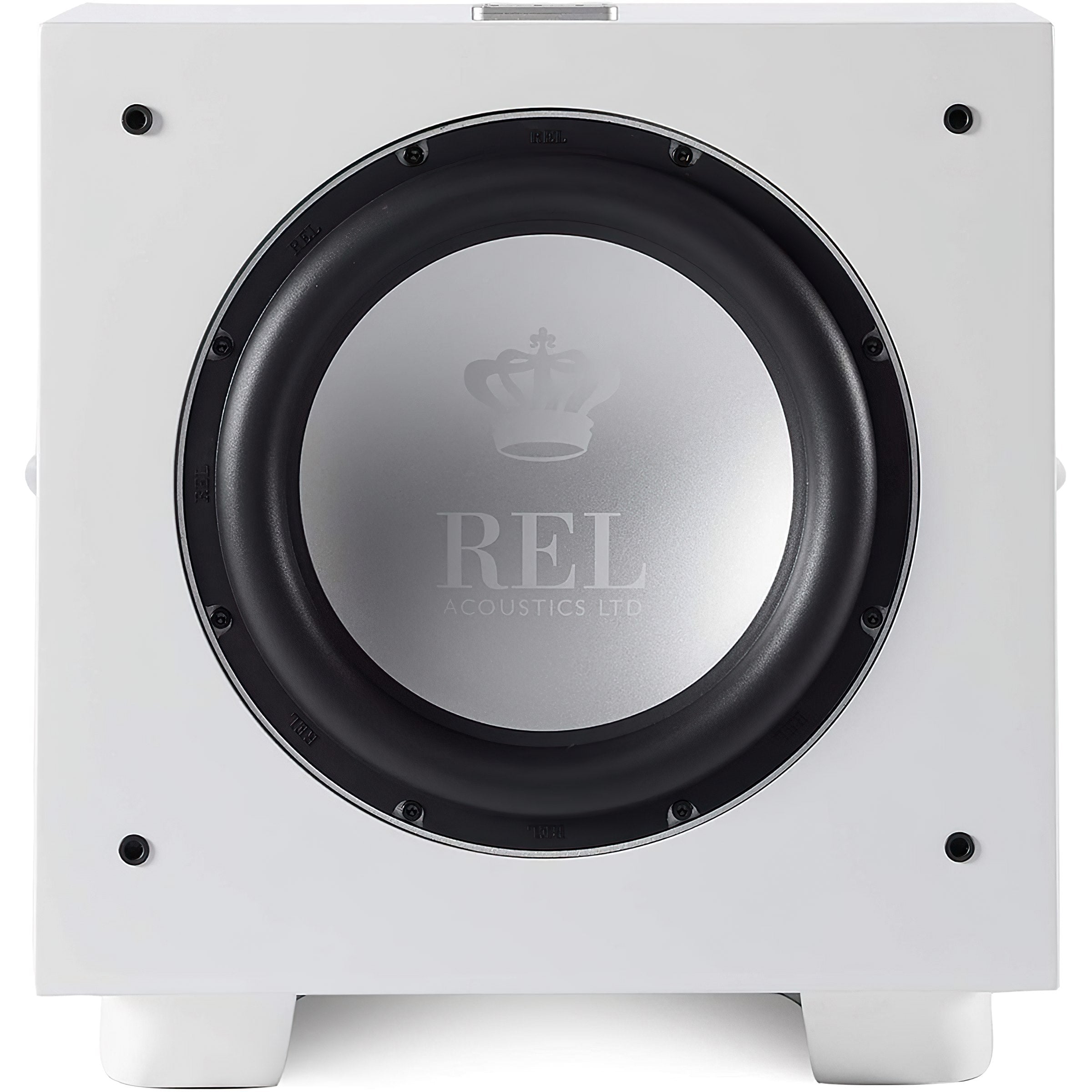

12 in., 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis
Passive Radiator Size & Material
12 in., 300mm Carbon/Carbon flat cone structure, steel chassis
Low Frequency Extention
-6dB at 19 Hz

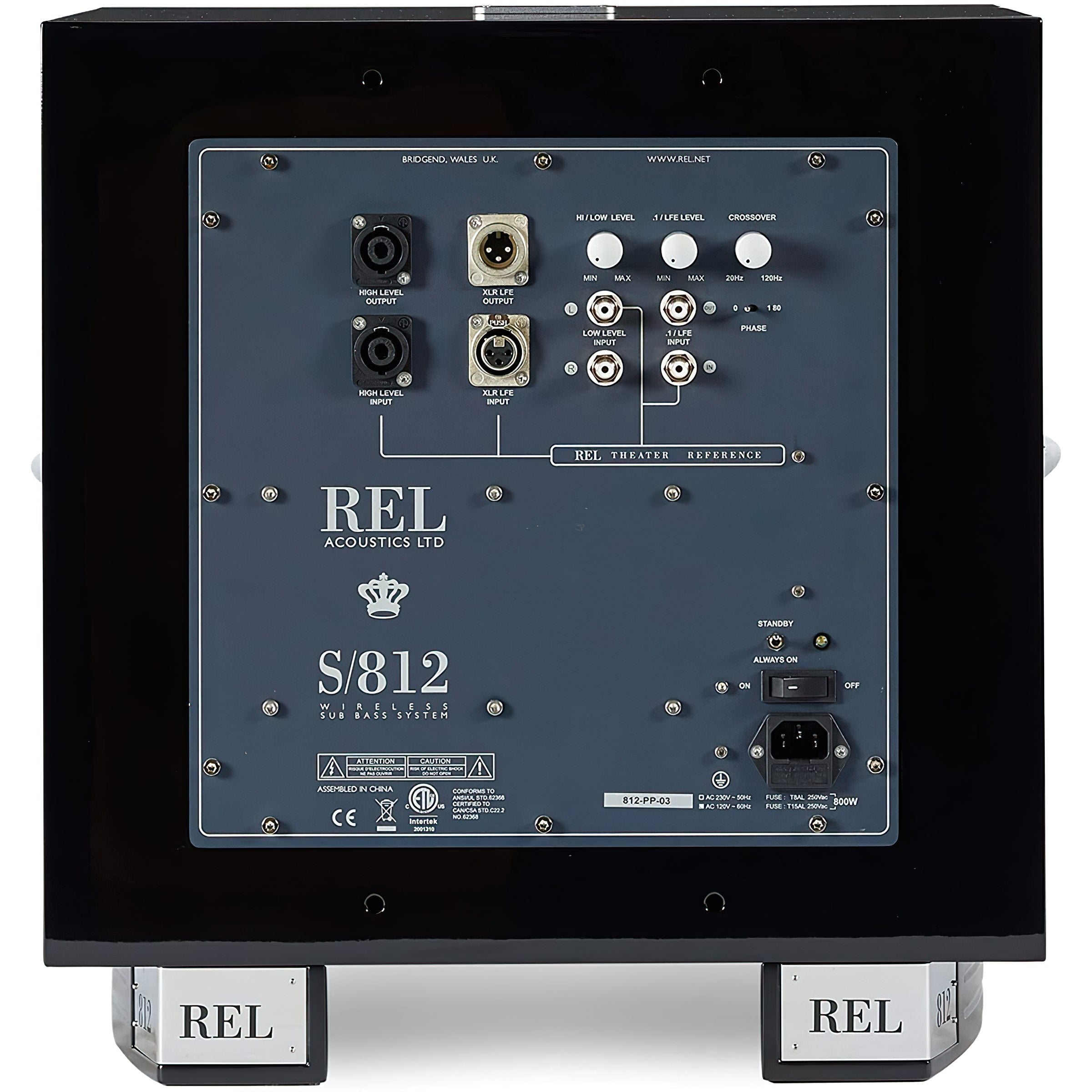

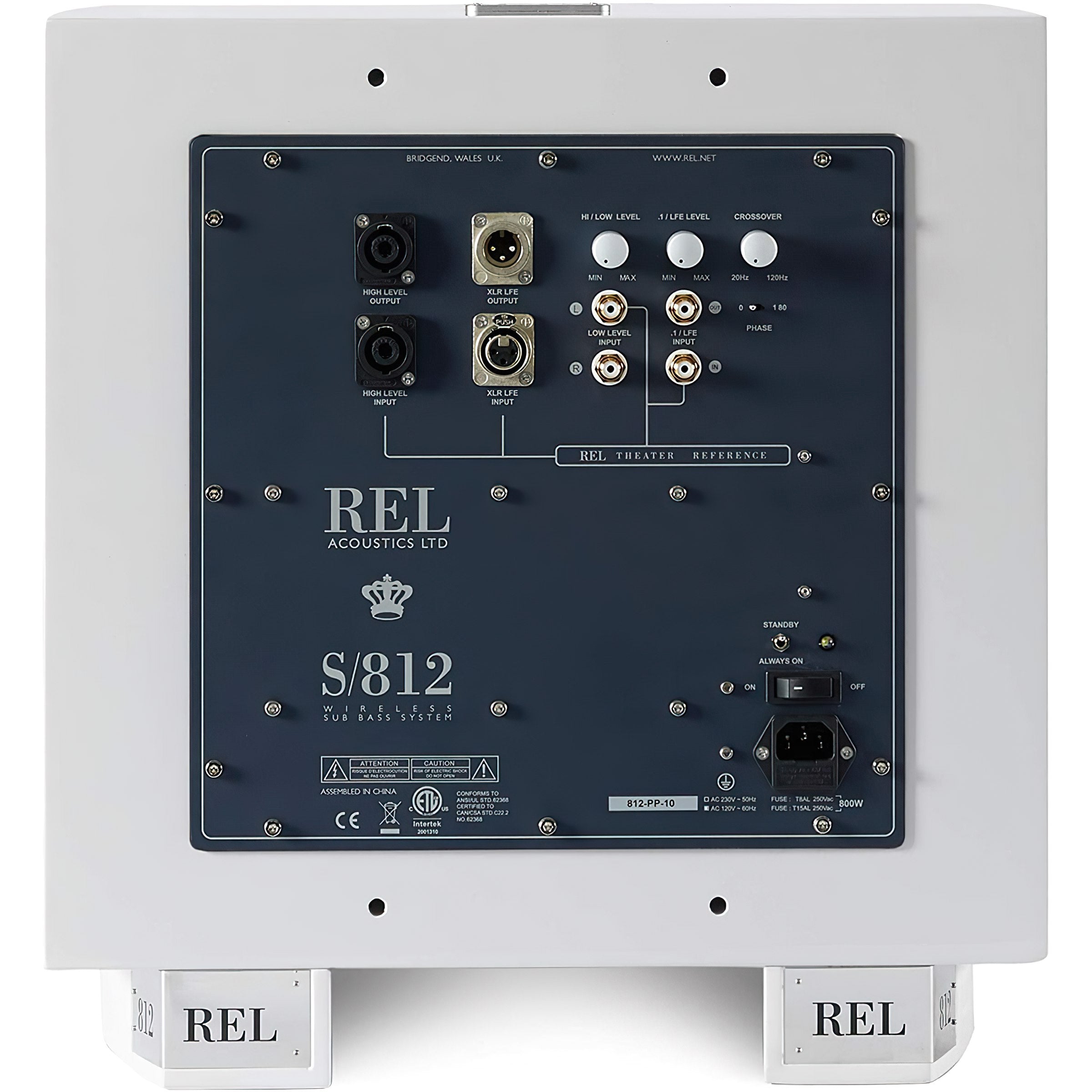

Input Connectors
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR
Output Connectors
High Level Neutrik Speakon, LFE RCA, LFE XLR
Power Output
800 watts (RMS)
Amplifier Type
NextGen5 Class D
Wireless Capability
Yes- REL AirShip system [required]. Sold separately.
Protection System
Fully Electronic Set Safe
Yes
D.C. Fault
Yes
Output Short
Yes
Mains Input Voltage
220-240 volts, 110-120 volts for certain markets
Fuses
5 Amp 220 volts operation, 9 Amp 120 volts operation
Dimensions
W x H x D
17.5 x 18 x 20 in. (430 x 455 x 514 mm)
Net Weight
75 lbs. (34 kg)
Finish

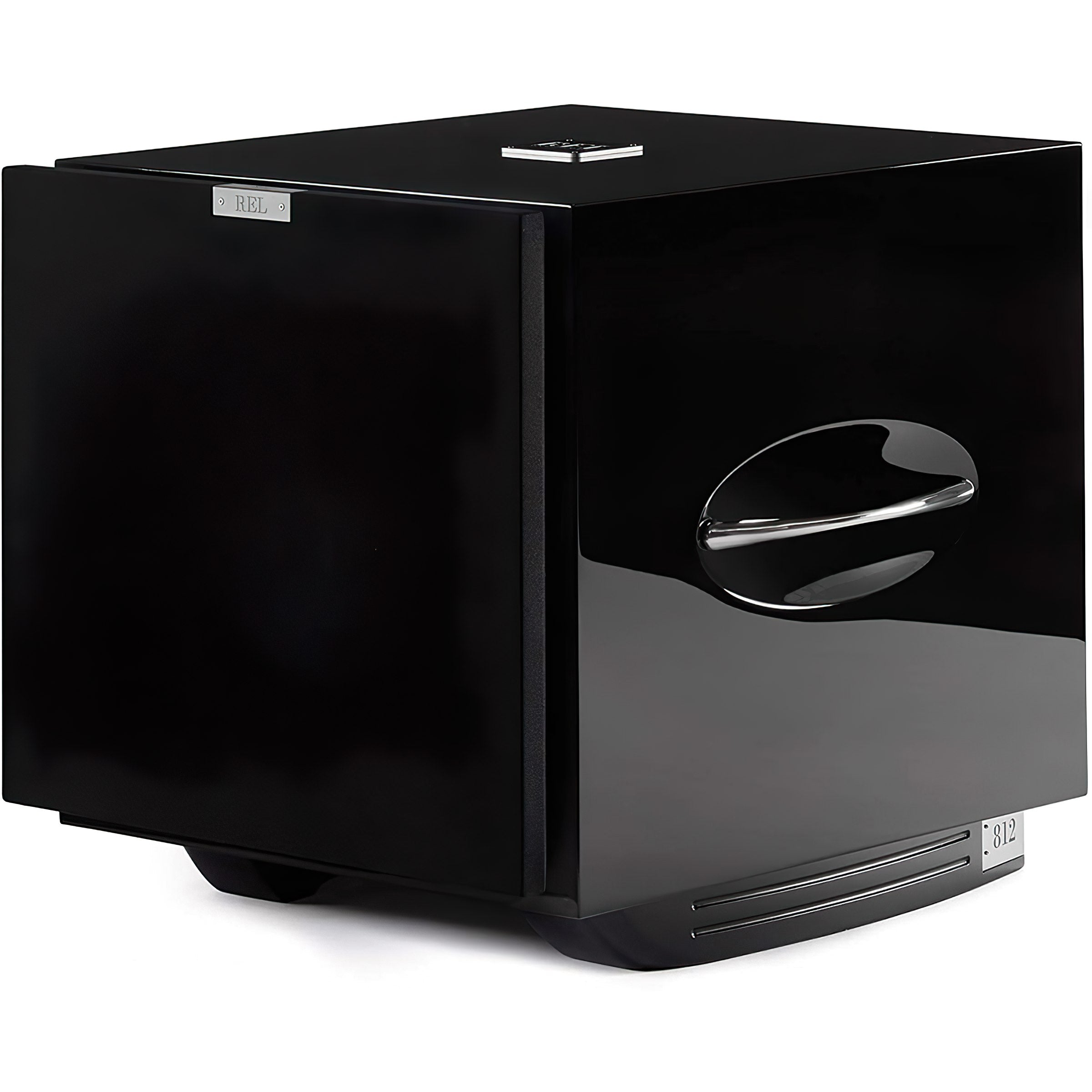

Piano Black Lacquer, White Lacquer, 8 coats
Supplied Accessories
Mains Lead
Yes
Neutrik Speakon
Yes (10 Meters Nominal)
Interconnect
Users Manual
Yes
In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.
