Revel
Revel C763 6 ½" In-Ceiling Loudspeaker
Grill Colour
Speaker Colour
Revel C763 6 ½" In-Ceiling Loudspeaker
White / Black
22 Saint Kilda Road
22 Saint Kilda Road
Suite 2.02
St Kilda VIC 3182
Australia
Country of origin: USA
C763
6 ½" In-Ceiling Loudspeaker
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C763 Highlights
-

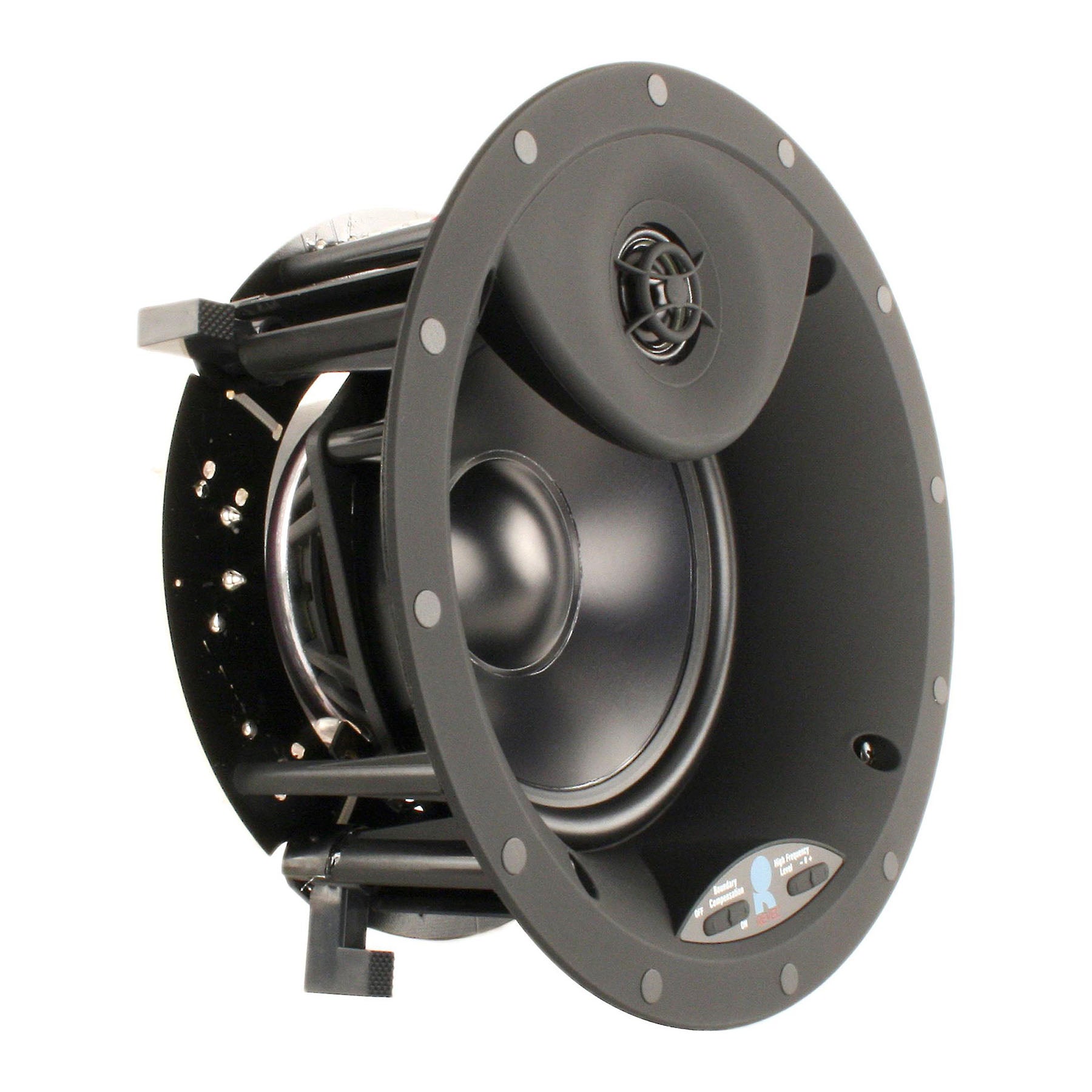

Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-

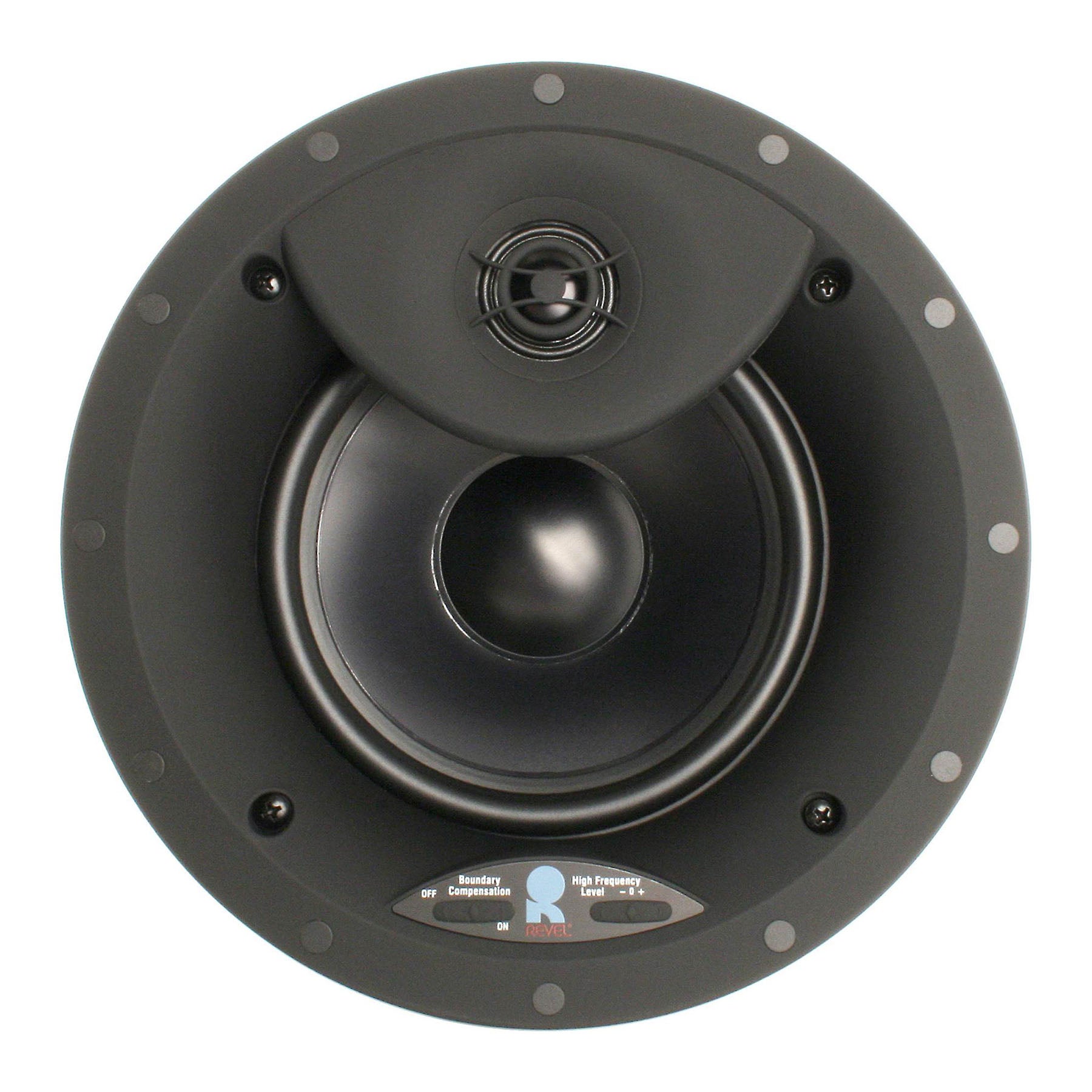

1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-

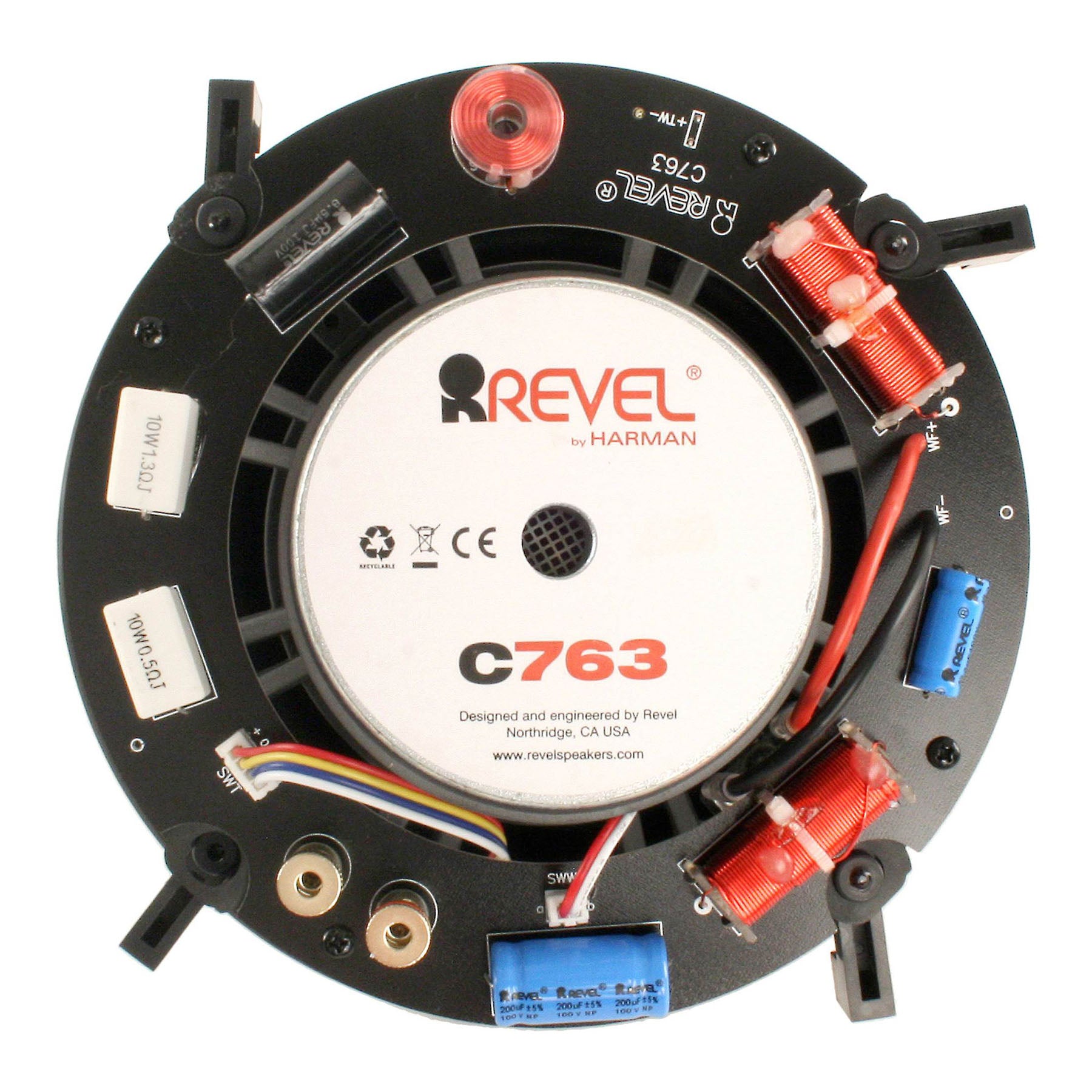

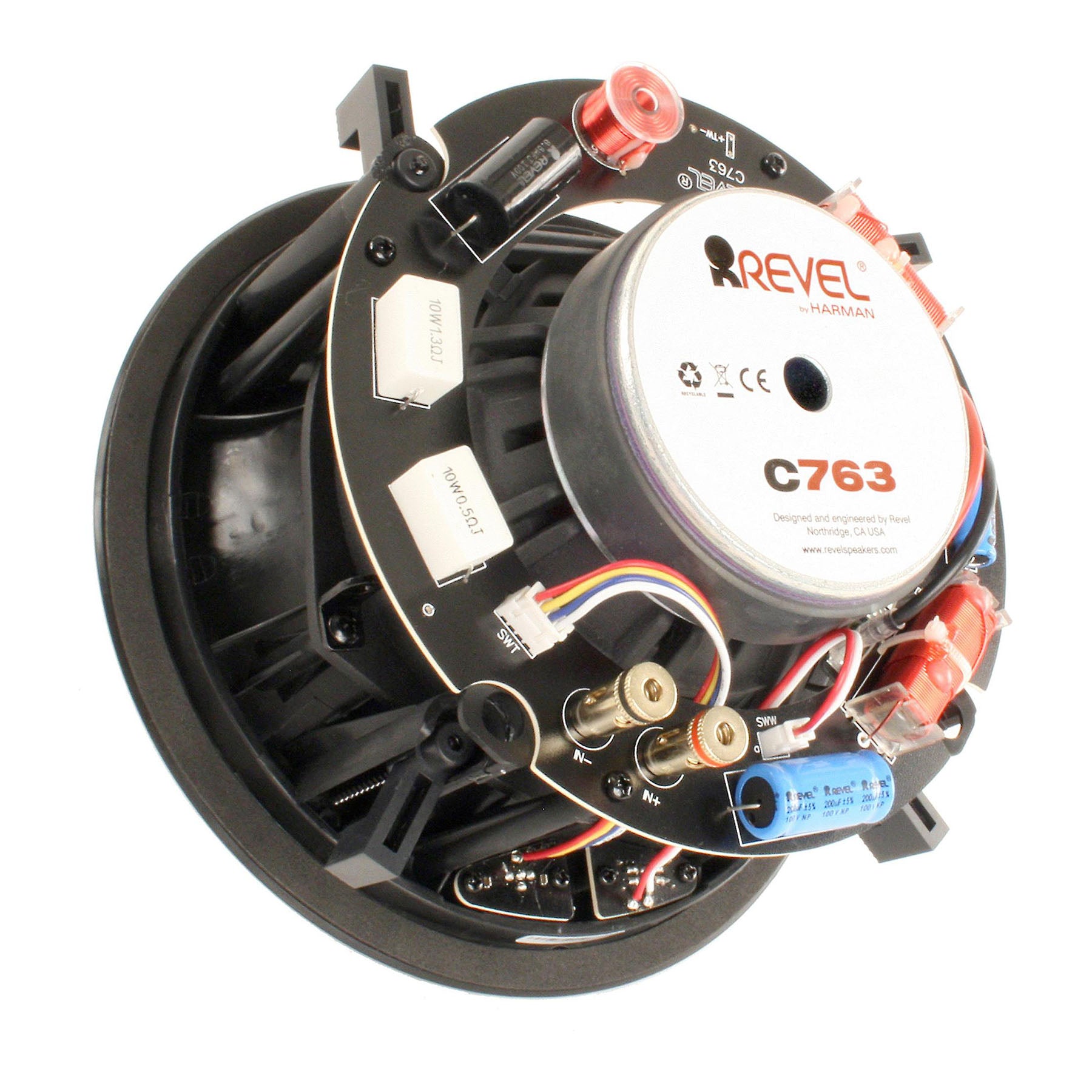

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
-
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Height | Cutout dimensions (dia.) 8" (20.3 cm) Square grille finished Height 9.1" (23.1 cm) |
---|---|
Width | Square grille finished Width 9.1" (23.1 cm) |
Depth | Mounting depth 4.9" (12.5 cm) |
Weight | 2.4 lb (1.1 kg) / Shipping weight 3.2 lb (1.5 kg) |

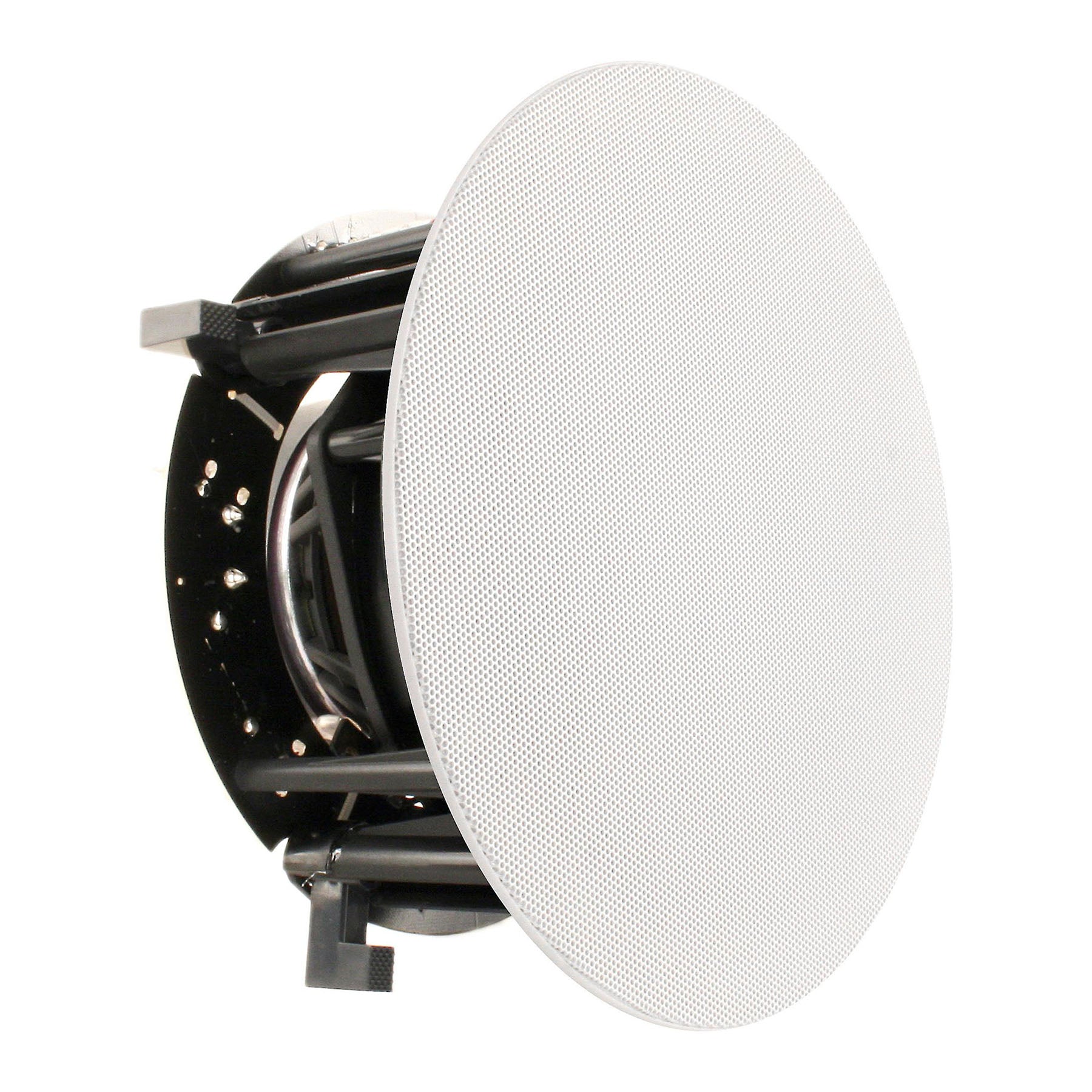

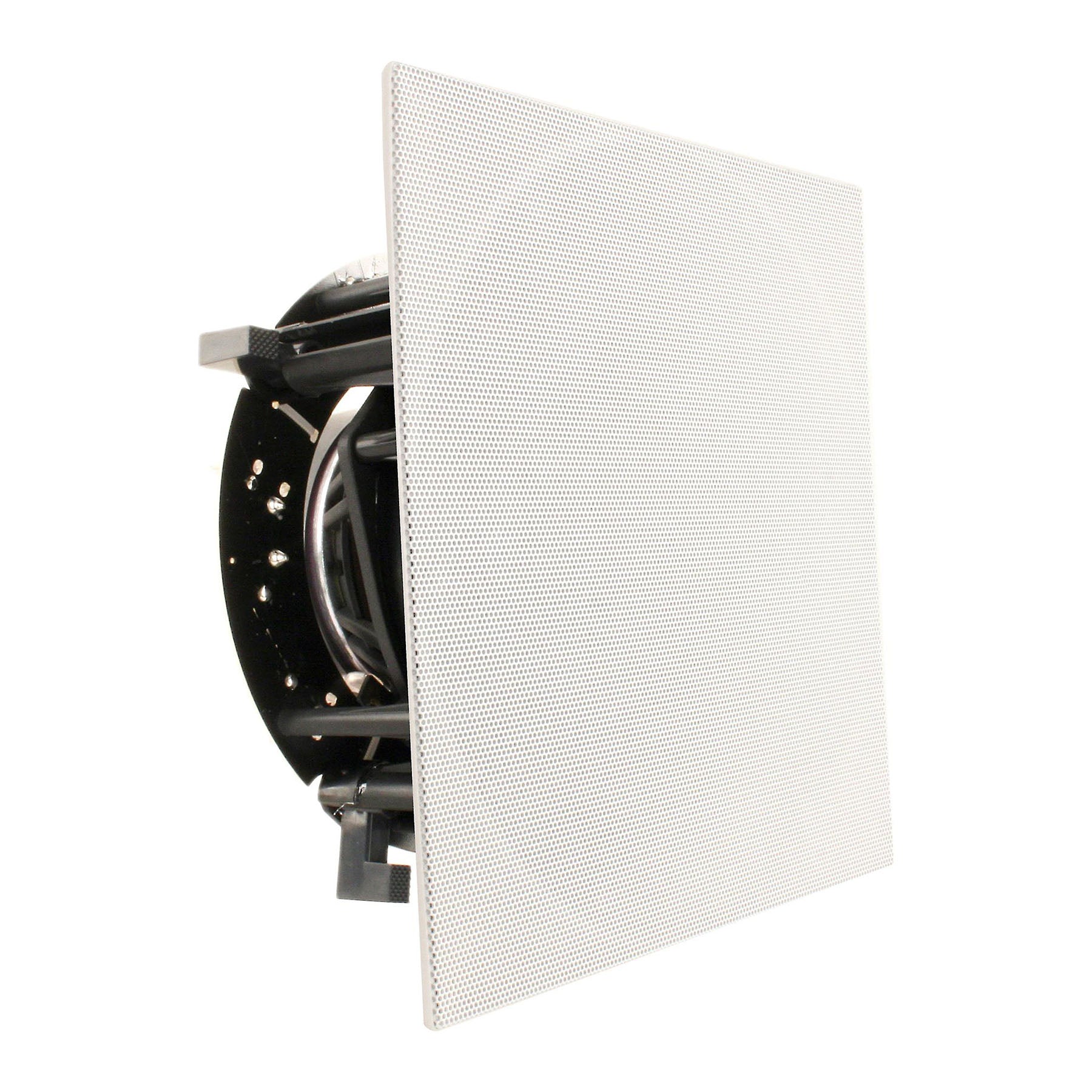

Features | Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm) |
High Frequency Driver Components | 1" aluminum dome swiveling high-output tweeter with waveguide |
Low Frequency Extension | High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation |
Mounting | C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm) |
Recommended Amplifier Power | 10 - 140 Watts RMS |
