THOR

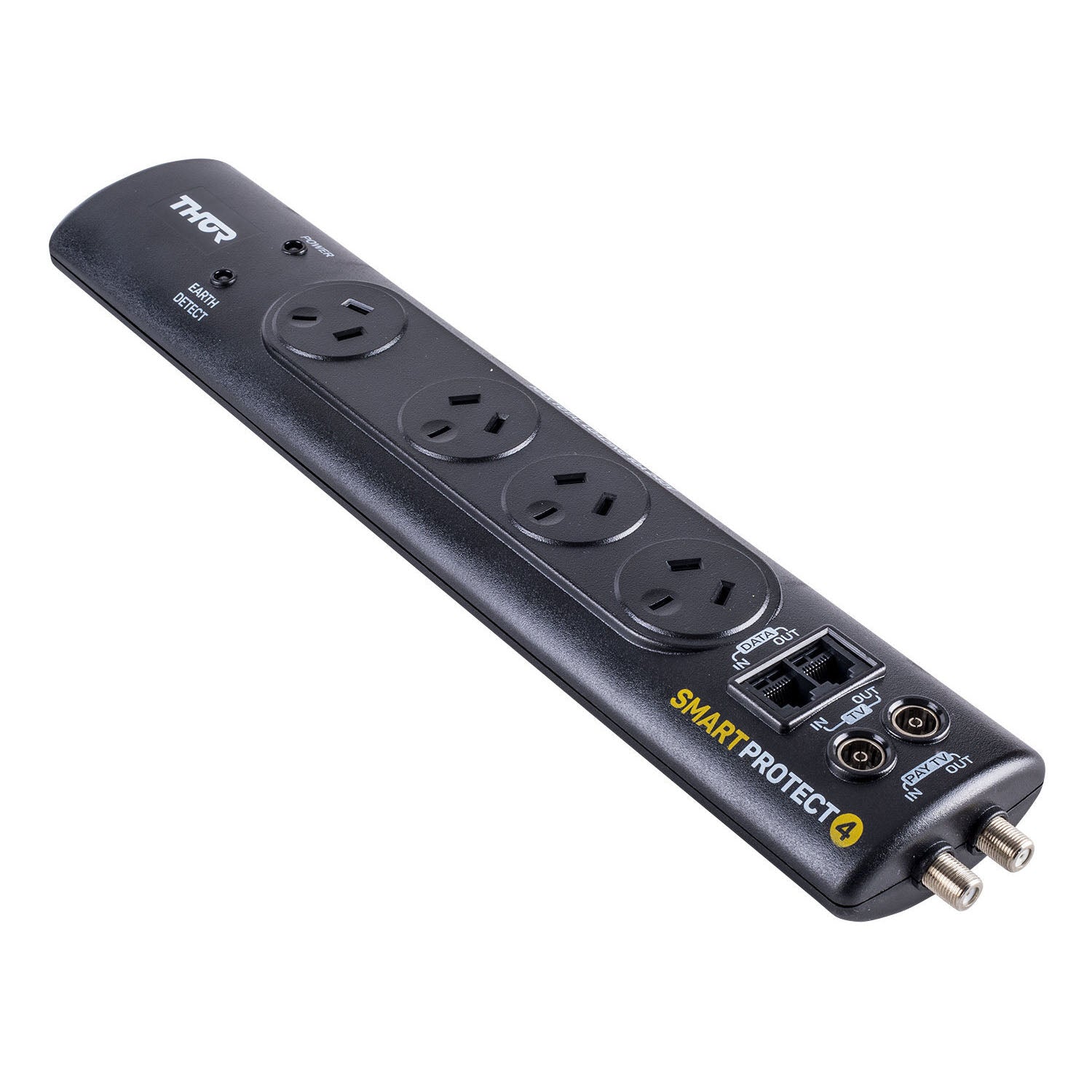

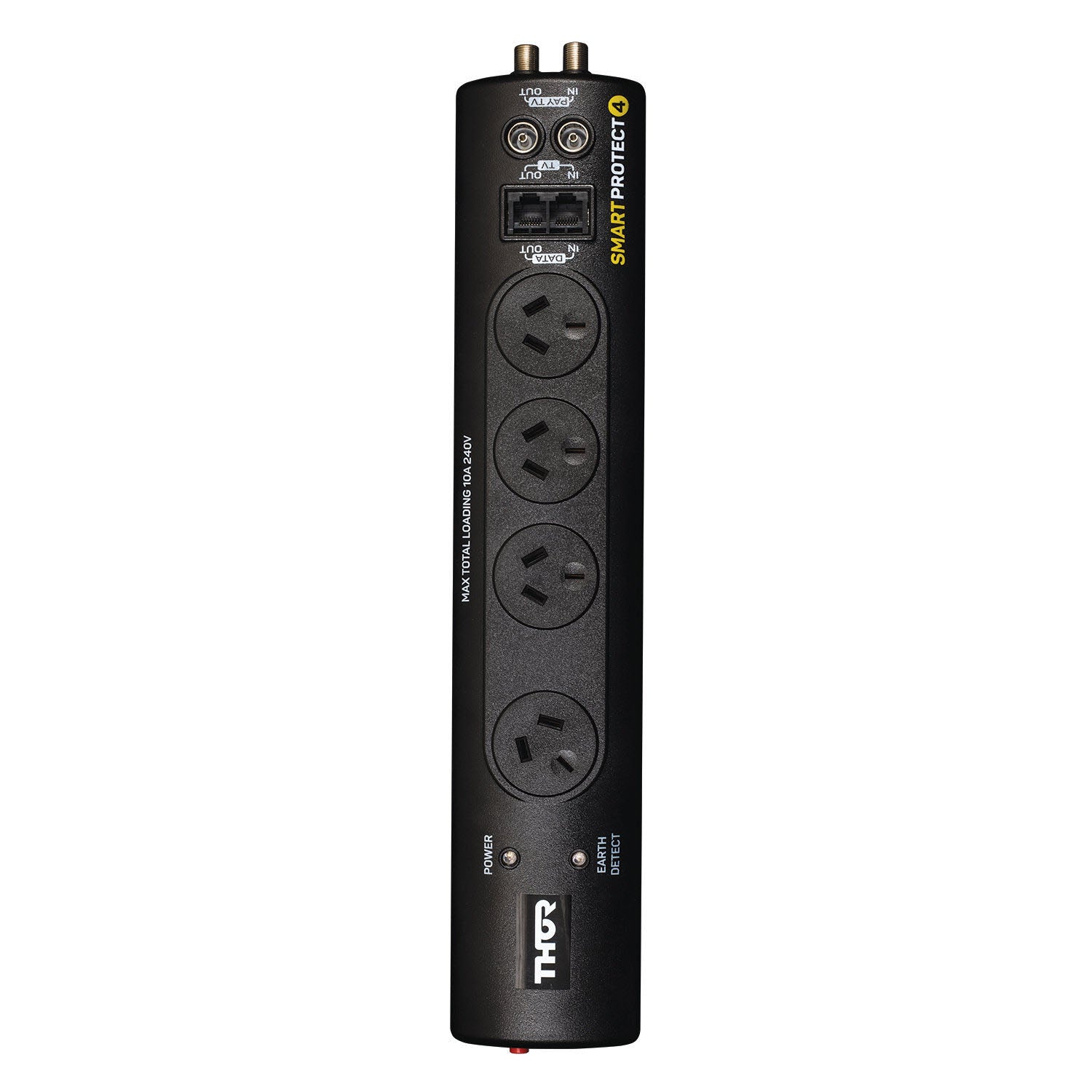

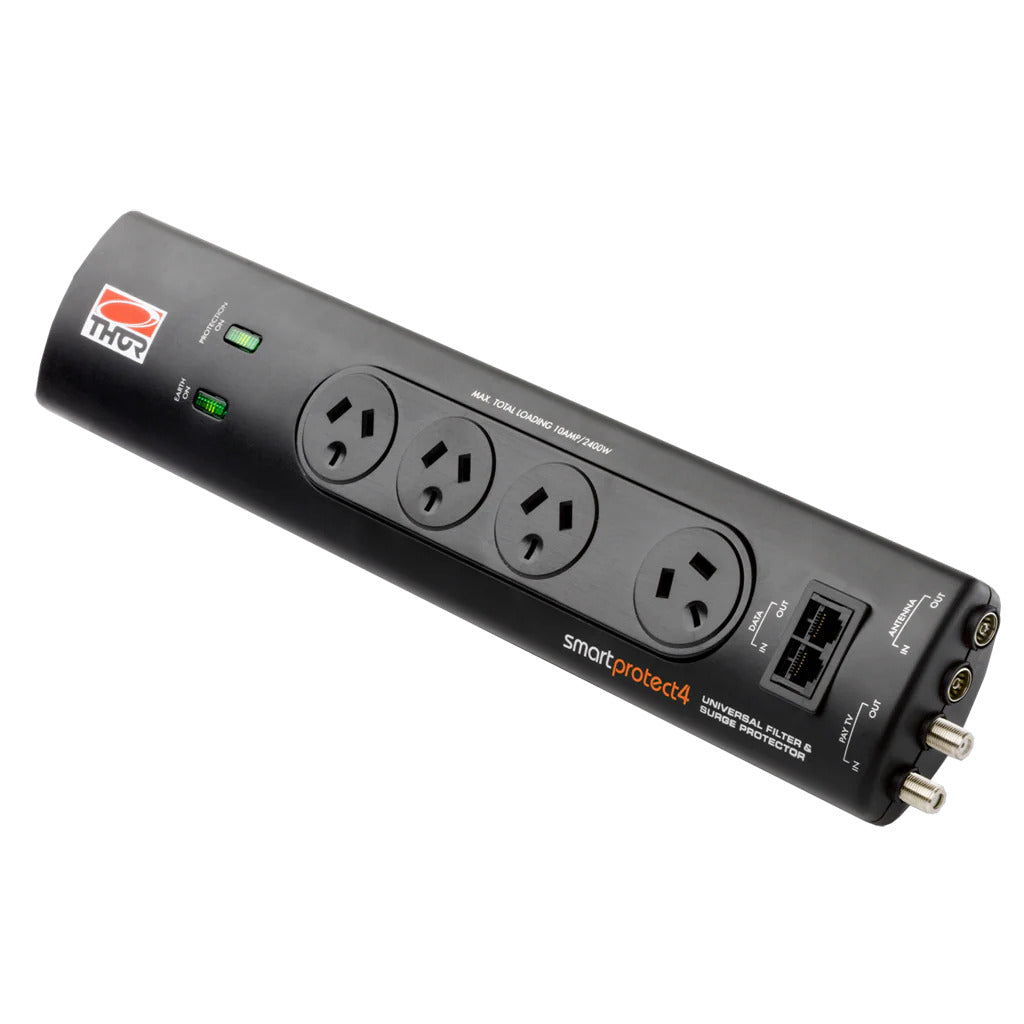

E1/45S 4-way Filtered Board with Better Filtration
SMART TECHNOLOGY POWER PROTECTION AND FILTRATION
SmartProtect 4 does more than protect your valuable electronic equipment. The space saving design now means you can have surge protection and filtration anywhere.

Features
-
4 PROTECTED OUTLETS
-
AERIAL PROTECTION
-
PAY TV PROTECTION
-
DATA/VOICE PROTECTION NBN COMPATIBLE
-
LARGE PLUG ADAPTOR
-
1.2M CABLE LENGTH
-
FIRE RETARDENT
Protects
-
OLED/LCD TV
-
HIFI AND HOME THEATRE
-
ACTIVE/PASSIVE SPEAKERS
-
COMPUTERS
-
PRINTERS AND SCANNERS

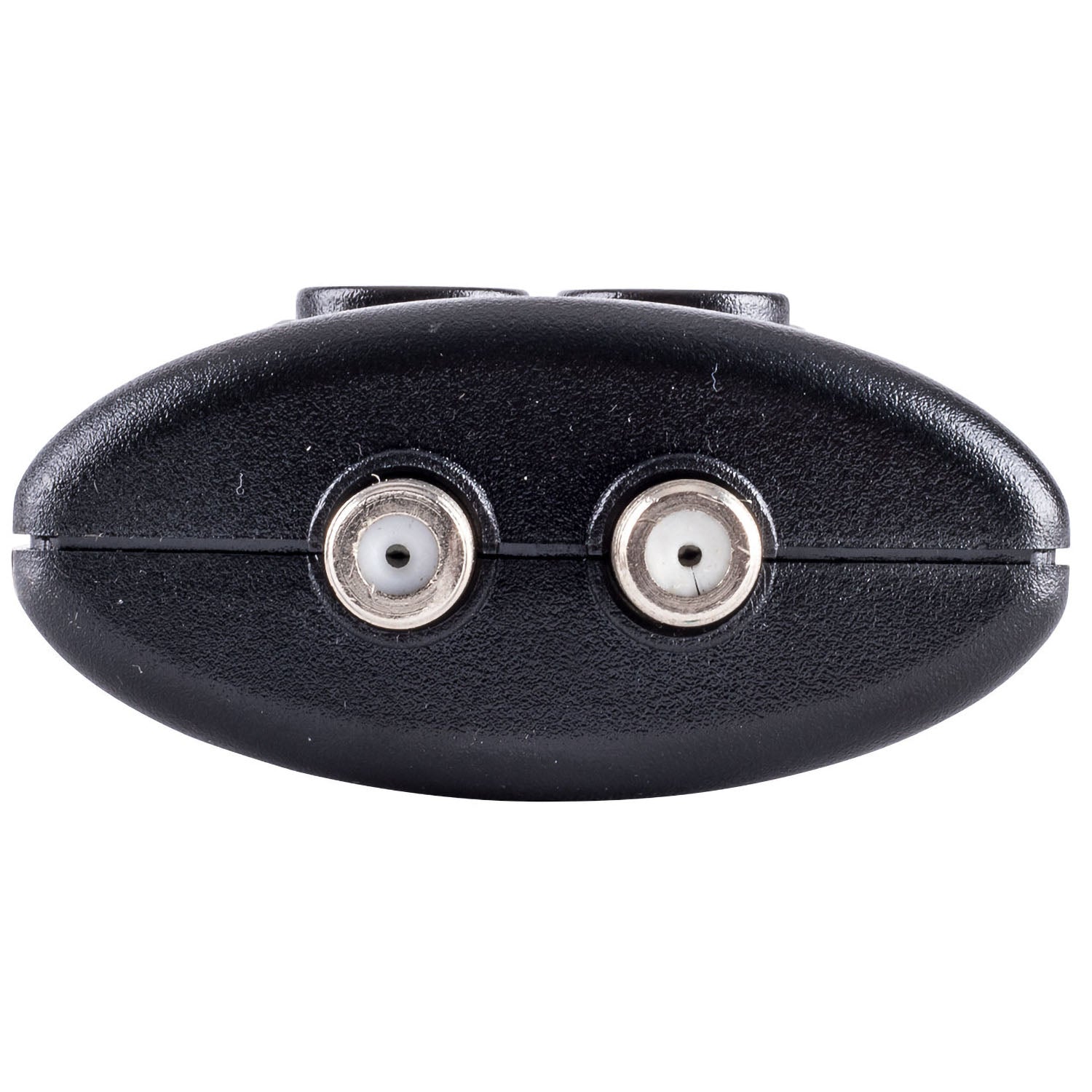

1 - Pay TV connection (in and out)
2 - RJ 45 data protection (1 in and 1 out)
3 - Single Bank (4 outlets): Surge protection and filtering
4 - Large plug adaptor

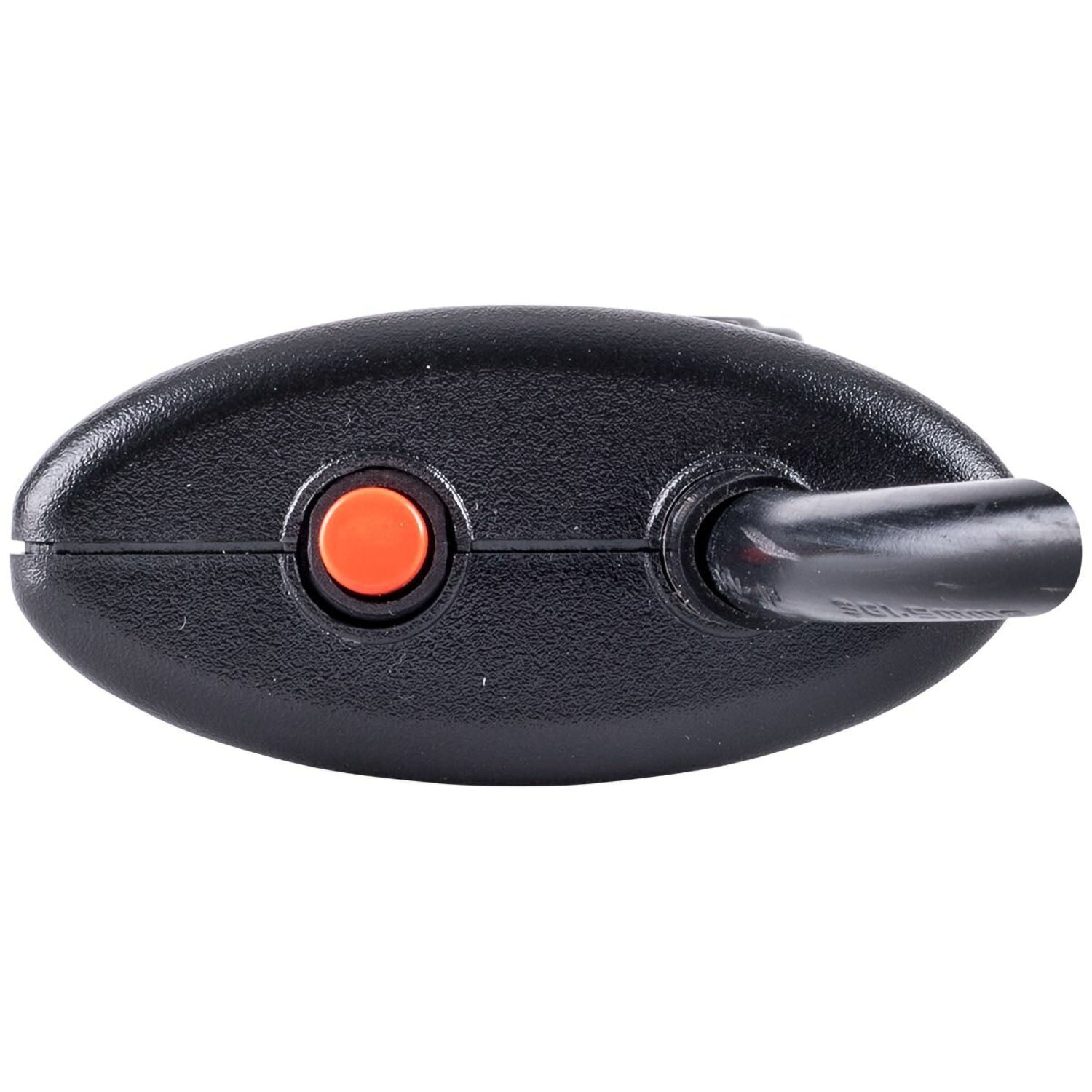

5 - Resettable safety 10 amp circuit breaker

SMART BRAIN
The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.
INSIDE THE SMART BRAIN
All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45s has an earth detection LED for this reason.
SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise.
Videos
| Supply Voltage | 240/Vac 50/Hz |
| Maximum Current Rating | 10amps/2400 W (Va) |
| Clamping Voltage | 275Vac |
| Reaction Time | Less than 1 Nano Sec |
| Maximum Transient Spike Impulse Current (AMPS) | 125,000 amps. Equivalent to 31,200 Amps using UL1449 standard |
| Maximum Energy Dissipation (Joules) | 3670 Joules.Equivalent to 1240 Joules using UL1449 standard |
| Protection Modes | (all 4 outlets Protects on all 3 conductors) Active/Neutral, Active/Earth, Neutral/Earth |
| Noise Reduction Filter | EMI/RFI |
| Total Number of Protected AC Outlets | 4 |
| Pay TV & "F" Type Connection | 1 x IN - 1 x OUT |
| AV/TV Anntennae Coax Connection | 1 x IN - 1 x OUT |
| RJ 45 Data Protection | 1 x IN - 1 x OUT |
| Earth Potential Rise | Protection |
| Earth leakage Range | Less than 1 milli amp |
| Operating conditions | Indoor / AC Mains |
| Operating Temperatures | - 10C/+60C |
| Cable length | 1.2m |
| Regulatory Compliance Mark | RCM 5287 |
