Koetsu Step-Up Transformer

Koetsu's Powerful Step-Up Transformer Matches the Superlative Quality and Performance Fans Expect from the Legendary Company's Cartridges

Audiophiles can rest assured that they will get all the quality they pay for with the Koetsu Step-Up Transformer, engineered for use with moving-coil (MC) cartridges. Pairing the Koetsu Step-Up Transformer with a Koetsu phono cartridge will excite even the most seasoned analog addict.

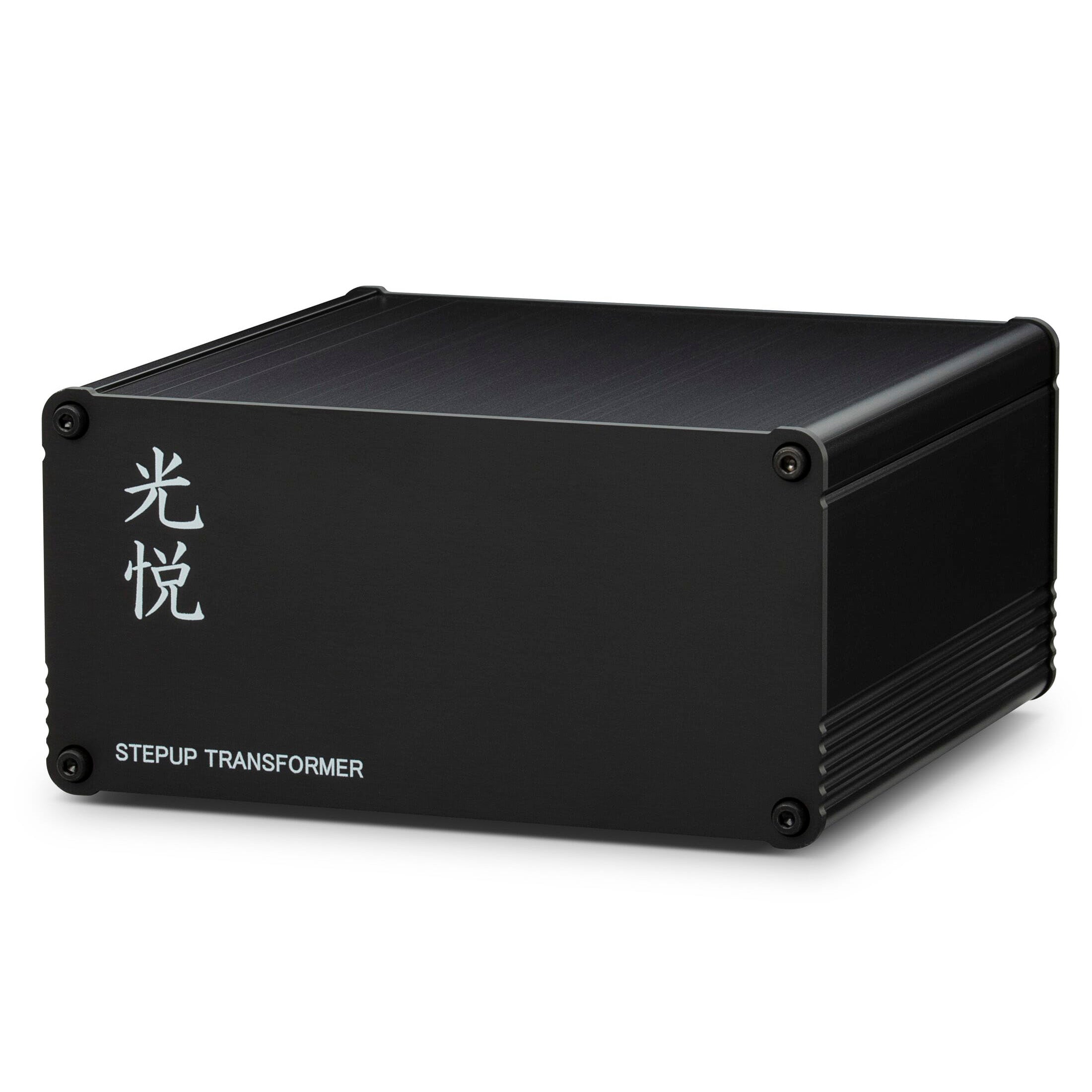

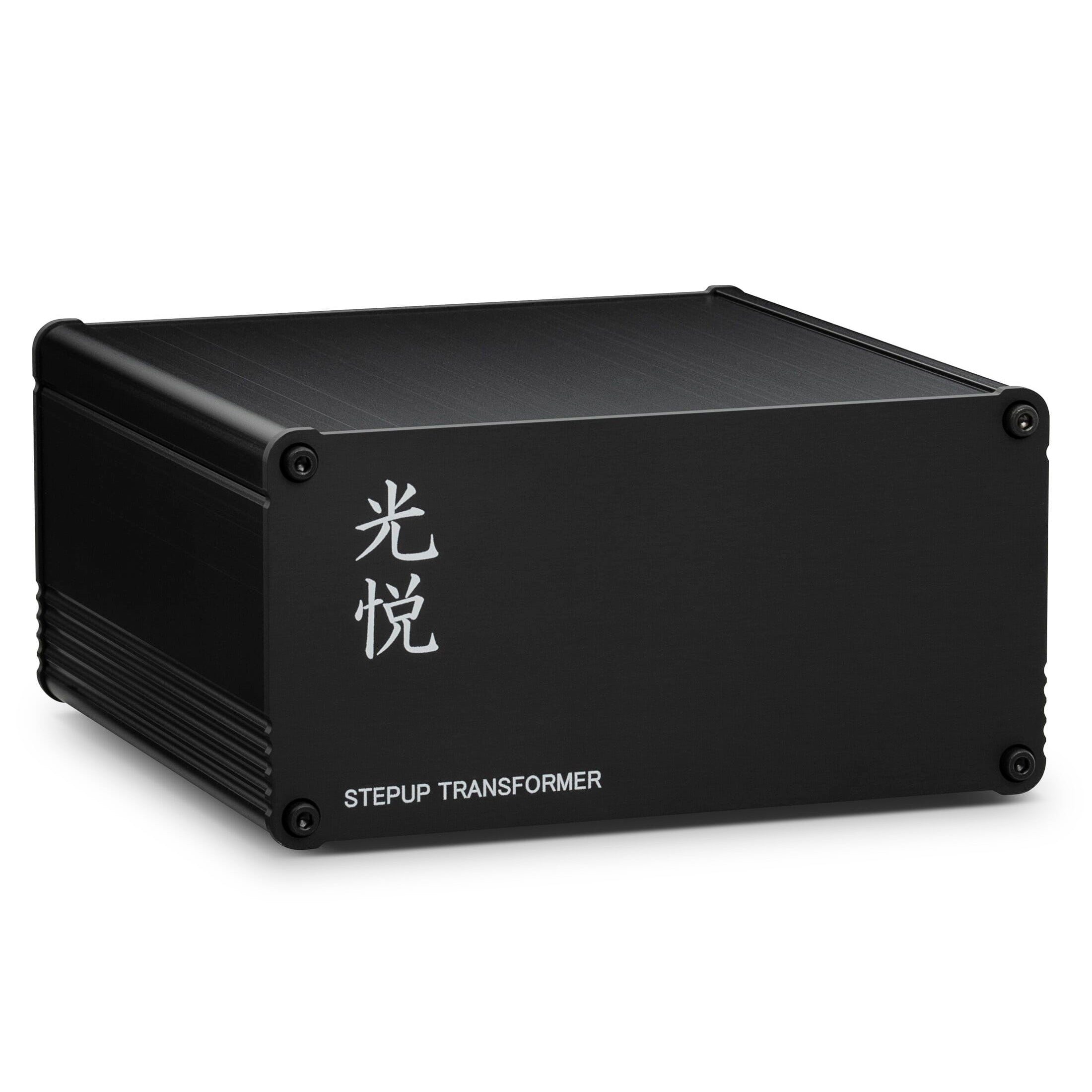

Housed in a sleek aluminum chassis and designed for use with all Koetsu phono cartridges, the Japanese-built Step-Up Transformer delivers 26dB of clean gain. The stunningly low-noise floor allows you to appreciate nuanced details far back in the soundstage, elevating the act of listening to music to an entirely new level of discernment. This 2-pound component is the gateway to a transformative analog experience.

Specifications

• Frequency Range: 20Hz- 50KHz

• Frequency Response: ±3dB

• Gain: 26dB

• Open Impedance: 10K ohm or more

• DC Resistance: Input: 4.5 ohms

• Output: 132 ohms

• Insultation Resistance: 100M ohms or more at DC250V

• Dimensions (WHD): 5.51" x 2.83" x 6.10"

• Weight: 2 lbs.

• Frequency Range: 20Hz- 50KHz
• Frequency Response: ±3dB
• Gain: 26dB
• Open Impedance: 10K ohm or more
• DC Resistance: Input: 4.5 ohms
• Output: 132 ohms
• Insultation Resistance: 100M ohms or more at DC250V
• Dimensions (WHD): 5.51" x 2.83" x 6.10"
• Weight: 2 lbs.
