DAC Box S2 +
High End DAC with 32bit and DSD256 support
miniature high quality digital to analogue converter!
DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the asynchronous XMOS USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution datas up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. Unwanted noise coming in through USB is double filtered to suppress them to a level where it can’t affect audio. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference!
DAC Box S2 + comes in silver or black.
- High end ESS Sabre ESS9038 DAC
- Proprietary clock circuity design
- Organic polymer capacitors and thin film miniMELF resistors
- 32bit / 768kHz PCM support
- DSD64, DSD128 & DSD256(DSD over PCM)
- Up to 24bit/192kHz for optical & coax inputs

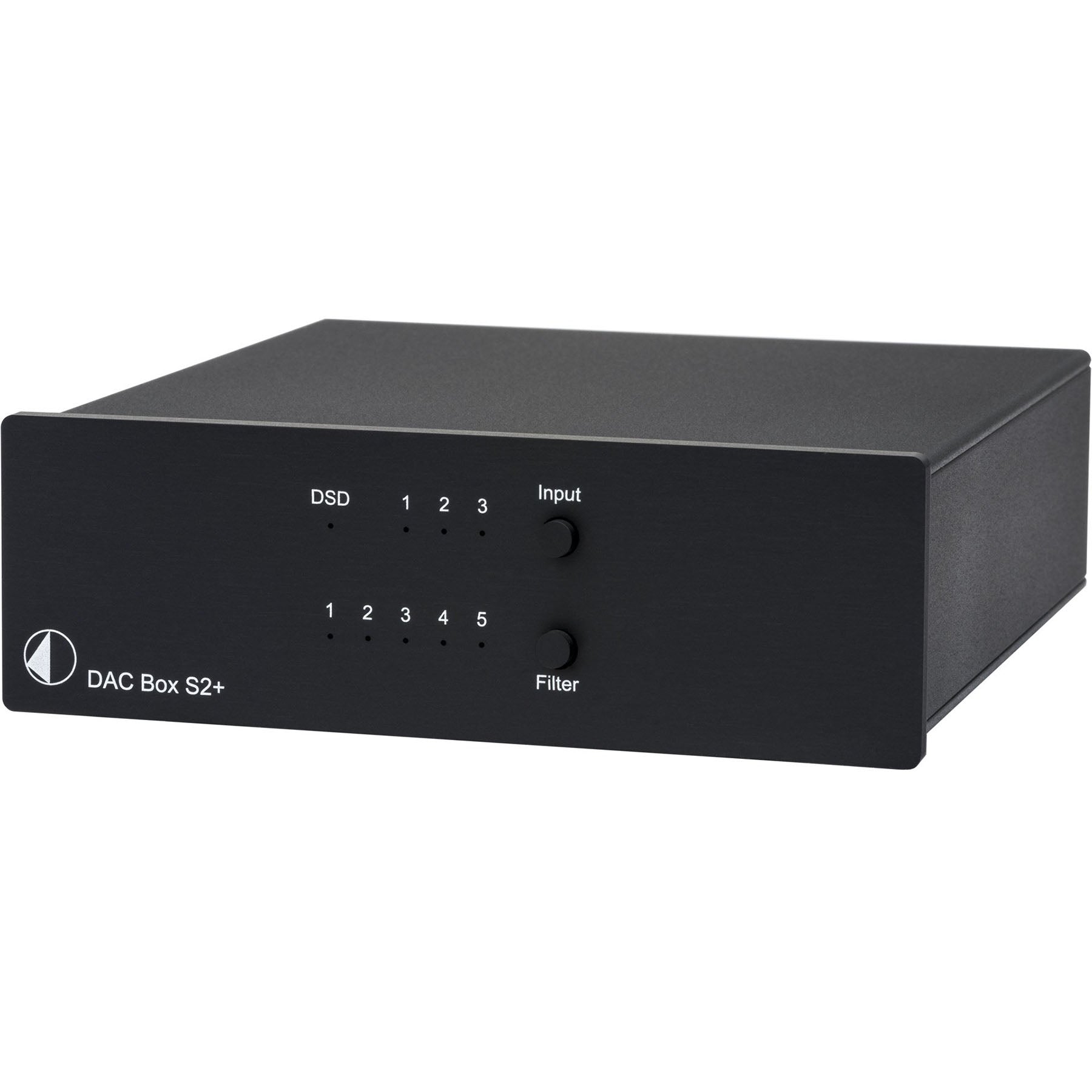

- 5 selectable digital filter characteristics
- 1 proprietary optimum transient digital filter
- Synchronization of all internal oscillators
- Jitter as low as 100 Femtoseconds!

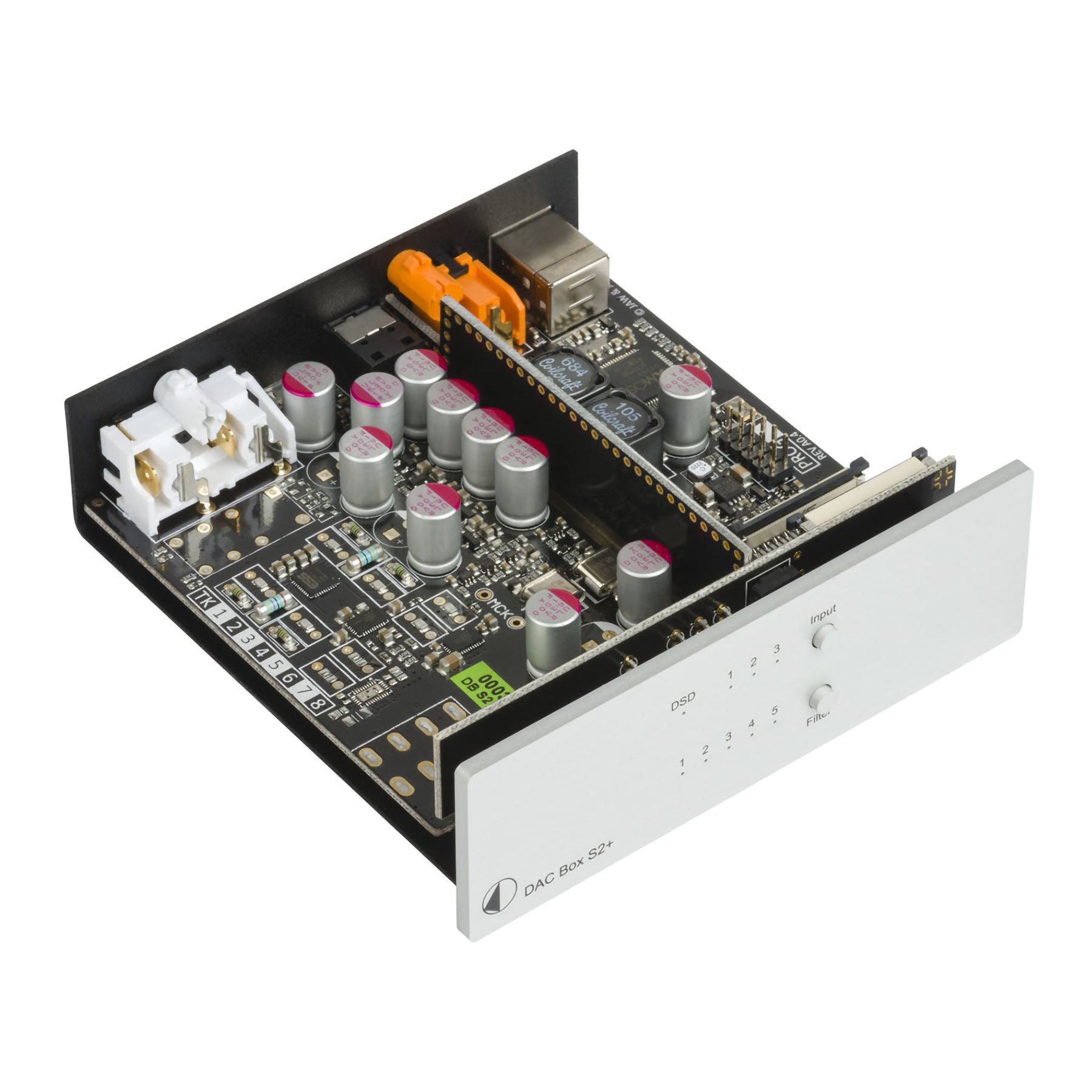

- Gold plated four layer PCB
- Full alu/metal sandwich casing in silver or black
Features & Specifications

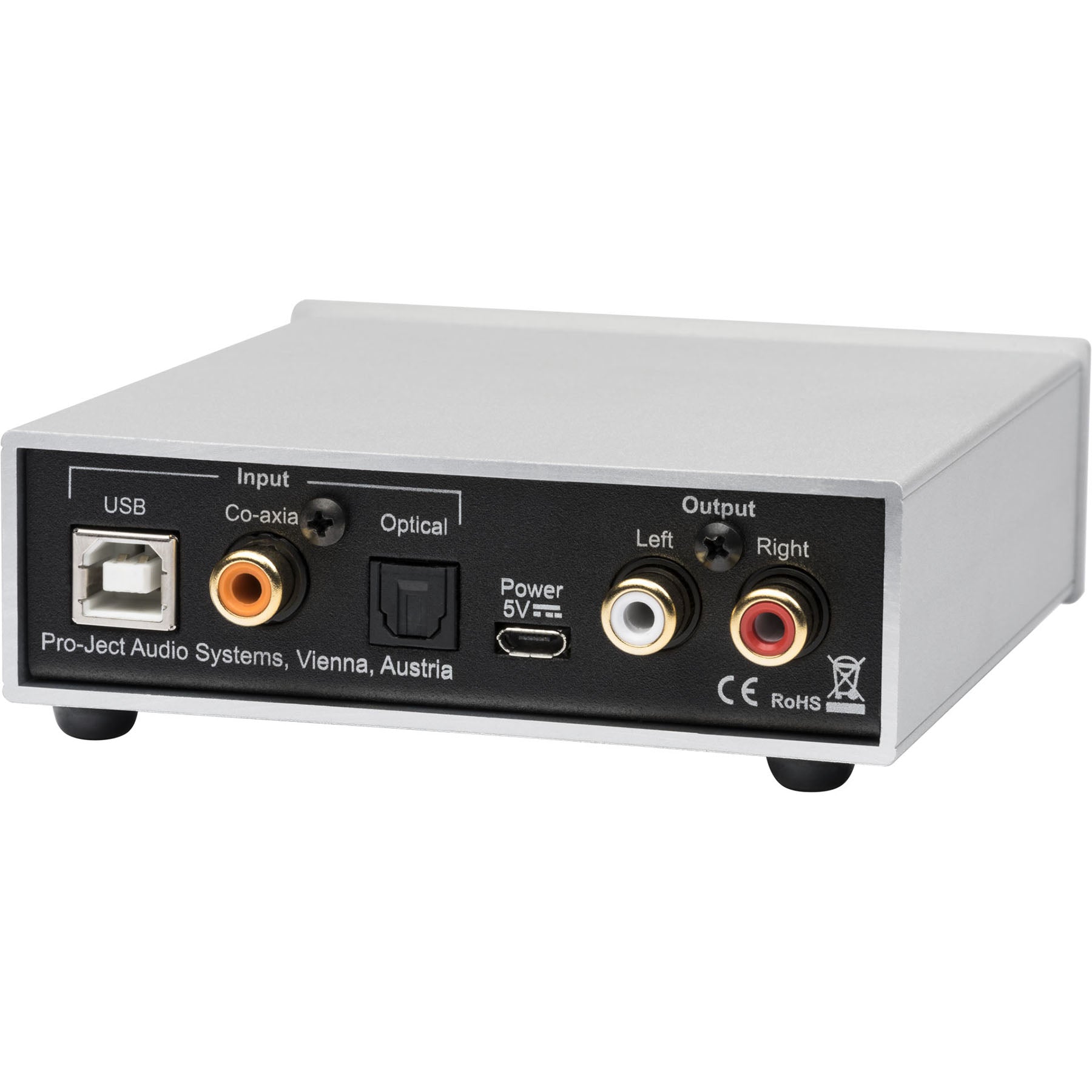

|1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
|1x ESS9038Q2M 32-bit Playback formats
|5 different selectable on front
|up to DSD256, PCM up to 32b/768kHz
|PCM up to 24 b /192 kHz
|PCM up to 24 b / 192 kHz
|20 Hz - 20 kHz
|0,0007% bei 0dB, 2V RMS, 1kHz
|1 pair of RCA/Cinch-sockets
|Outboard Power supply
|5V/1A DC (included)
|Dimensions W x H x D
|103 x 37 x 122 mm 2 (including knob and connectors)
|355g without power supply
