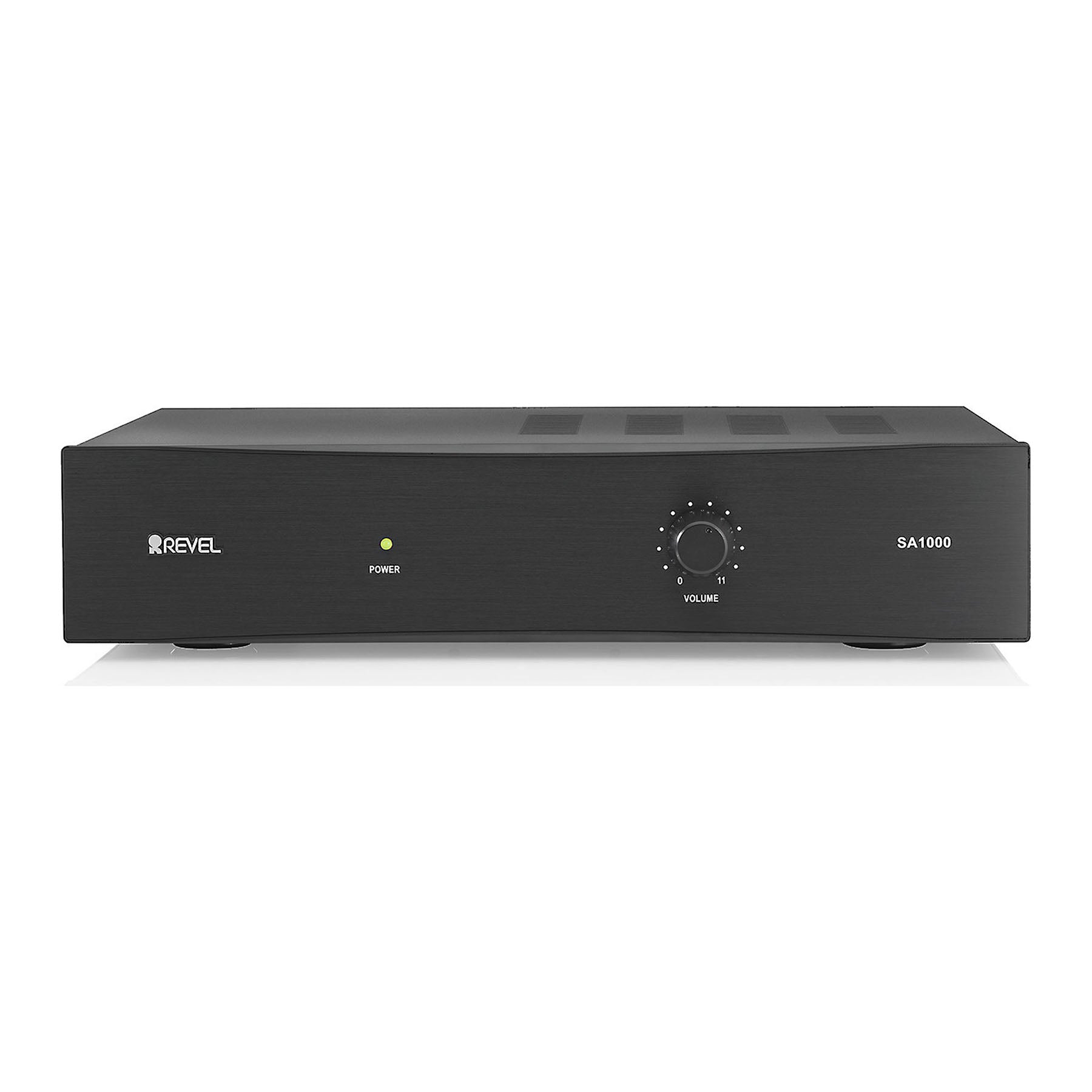

Revel SA1000 8 Ohms per speaker output


Made in USA


Sale priceA$1,999.00
Java Not Enabled

Tax included. 🚚 FREE SHIPPING on all orders

5 Years in Passive, 2 Years on Active, Lifetime on Custom Loudspeakers Warranty

Payment & Security

American Express Apple Pay Google Pay JCB Mastercard PayPal Shop Pay Visa Zip



8 Ohms per speaker output

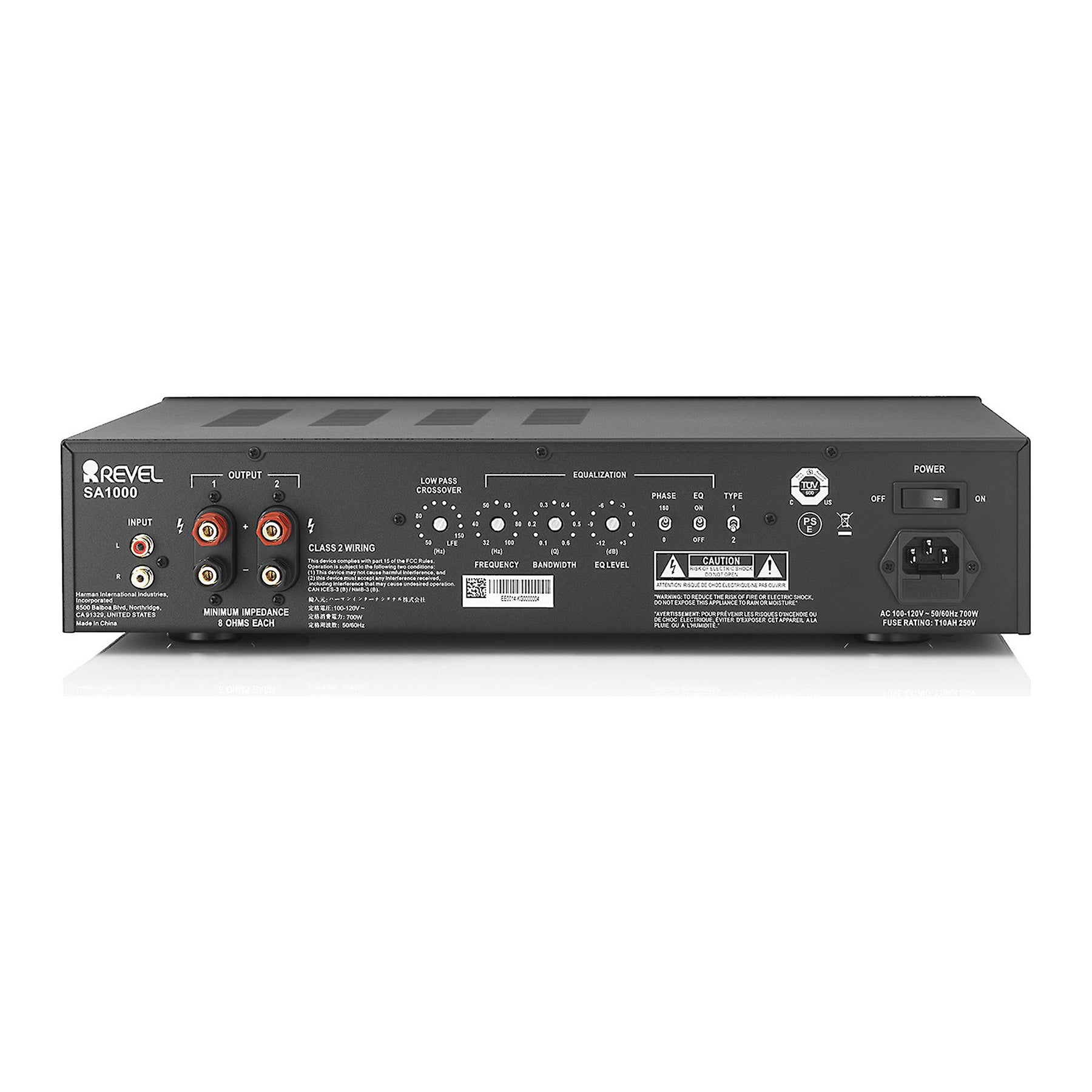

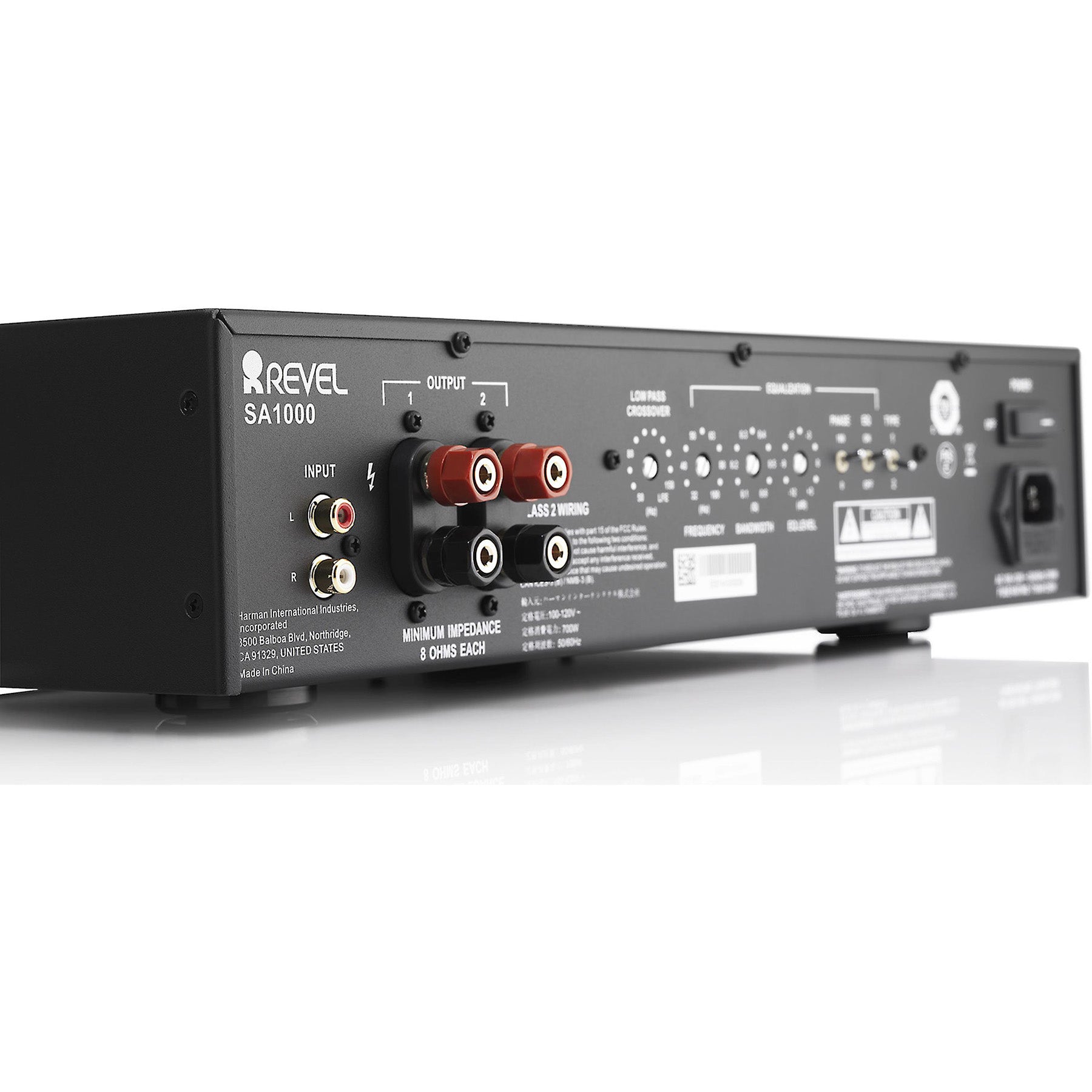

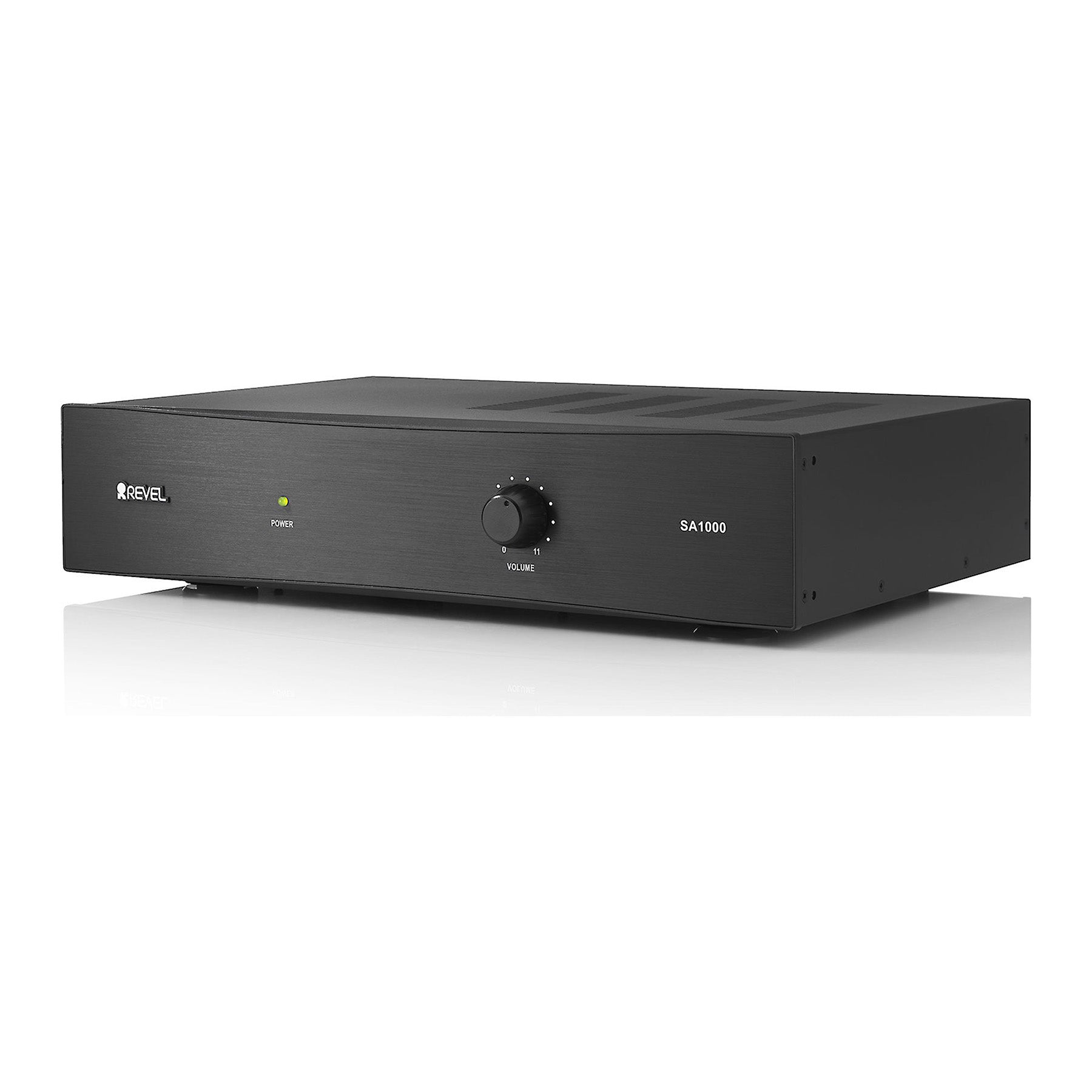

The SA1000 is a custom amplifier solution, optimized for the highest level of performance and reliability. This rackmount amplifier includes user features on the front panel, and a custom installer focused feature set on the rear panel. As part of Revel's in-wall subwoofer system, this rack mountable Class D component is designed to power the B28W in-wall subwoofer.

The SA1000 single channel, rack mount amplifier has two outputs in parallel, so you can power one B28W subwoofer module with 350W RMS (750W Peak). When a second B28W subwoofer module is connected to the second output of the SA1000 amplifier, the total output power increases to 700W RMS (1500W Peak).

This complete in-wall subwoofer solution with external rack mountable amplifier is designed to complement Revel’s high-performance architectural product portfolio. It delivers dynamic bass and lifelike realism to concealed music and home cinema systems resulting from Revel’s advanced engineering prowess, and comprehensive subjective and objective measuring tests.

SA1000 Highlights

  • User-adjustable Single-band PEQ – Room Equalization

  • Short-circuit and over-current protection

  • Over-temperature compensation

  • Two dual-banana output connectors for easy connection

  • Completes in-wall/in-ceiling solutions for music and home theater systems

  • Connect up to two B28W Subwoofers with each SA1000 Amplifier

  • Designed to fit standard 2 x 4 stud frame construction

  • Self-contained subwoofer module with integrated back-box allows for easy retrofit installations

General Specifications

Rated Output Power (RMS) into the minimum impedance of 4 ohms 700 Watts (350W per Subwoofer)
Peak Power 1500 Watts (750W per Subwoofer)
Rated Impedance 8 Ohms per speaker output
Minimum Load Impedance 4 Ohm
Model-Specific EQ 1 Only for Revel B28C; 2
Input Sensitivity to 1W @ 50HZ 16.3mVrms +/- 1dB (Single input driven) Gain = 41.7dB
Input Overload (Both Inputs Driven) 2.0Vrms
Input Impedance >10K Ohms
Low Pass Crossover Range 50-150Hz
Auto Turn On Input Sensitivity @ 50Hz Typical 10mV
THD+N At 1W <0.3%
THD+N At Rated Output Power <1%
Signal-to-Noise Ratio To 1W >65dBA
Minimum AC Mains Power Requirements Model 700W, 5A – 100-120VAC-50-60Hz
Minimum AC Mains Power Requirements Model 700W, 3A – 230VAC-50-60Hz
Power Consumption (Standby) 0.5W
Height 3.50in (88.90mm)
Width 17in (431.8mm)
Depth 11.04in (280.3mm)
Weight 14 lb (6.35kg)
