STAX SRM-D50

The SRM-D50 is a high-performance electrostatic driver and Digital-to-Analog Converter, inspired by the battery-powered SRM-D10. With an elegant all-in-one design, the D50 creates a simple solution for any music lovers to experience the legendary sound of Stax earspeakers.

FEATURES

  • Supports various digital inputs such as USB, optical, and coaxial digital input
  • Built-in DAC supports high resolution up to PCM 32/384 KHz or DSD 5.6
  • VU meter displays input strength
  • 4 mm thick nonmagnetic aluminum cover.
  • R core power transformer with less leakage flux

THE BEST AMP/DAC, HIGH-QUALITY SOUND

The STAX SRM-D50 is a desktop amplifier/DAC for STAX electrostatic headphones. It has an ESS ES9018 DAC chip. This coupled with a TI OPA1642 ultra-low distortion op amp gives you a bit-correct signal representation. The SRM-D50 supports high-resolution audio up to PCM 32/384KHz or DSD 5.6. The R core power transformer offers less leakage flux.

DURABLE & COMPACT, CONNECT EASILY

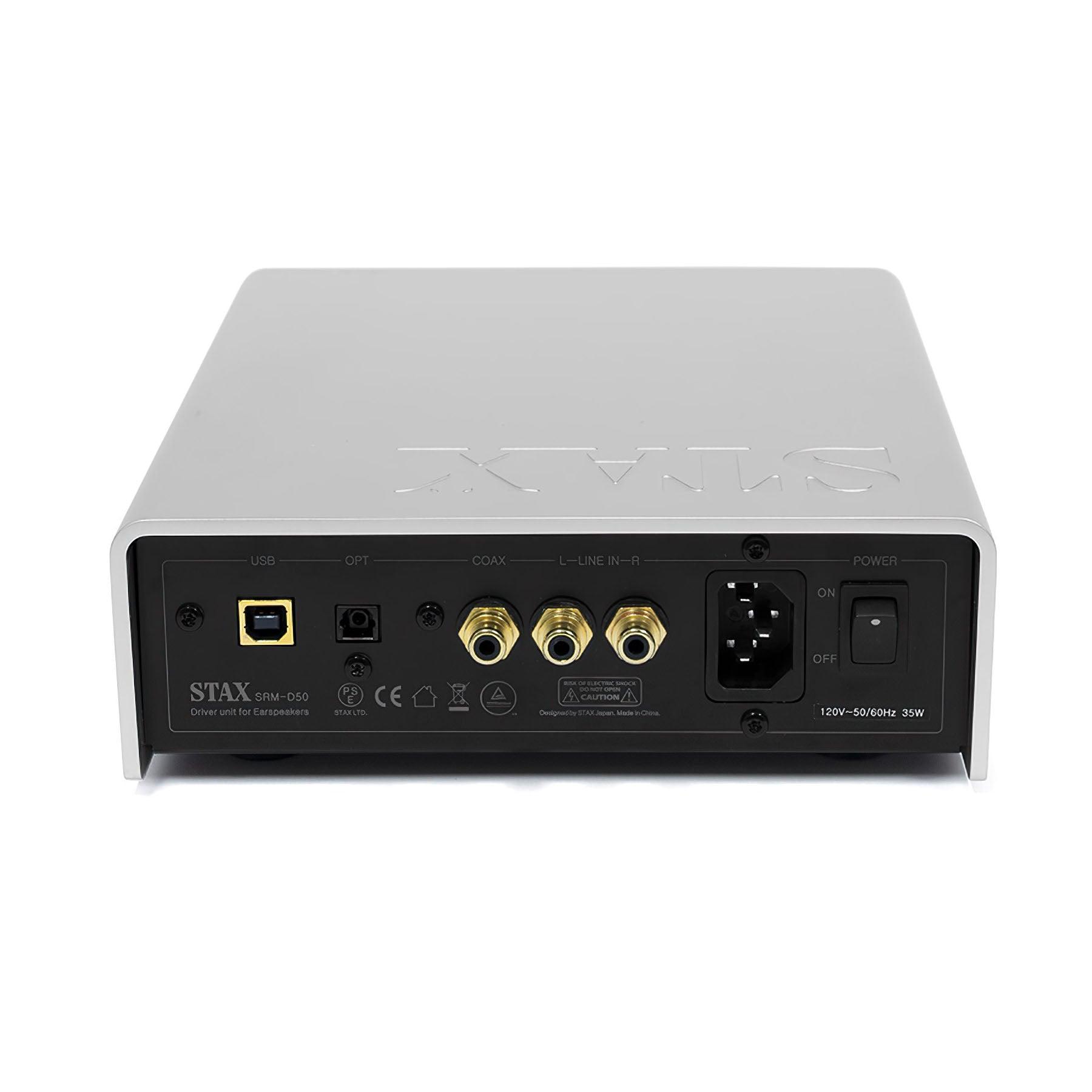

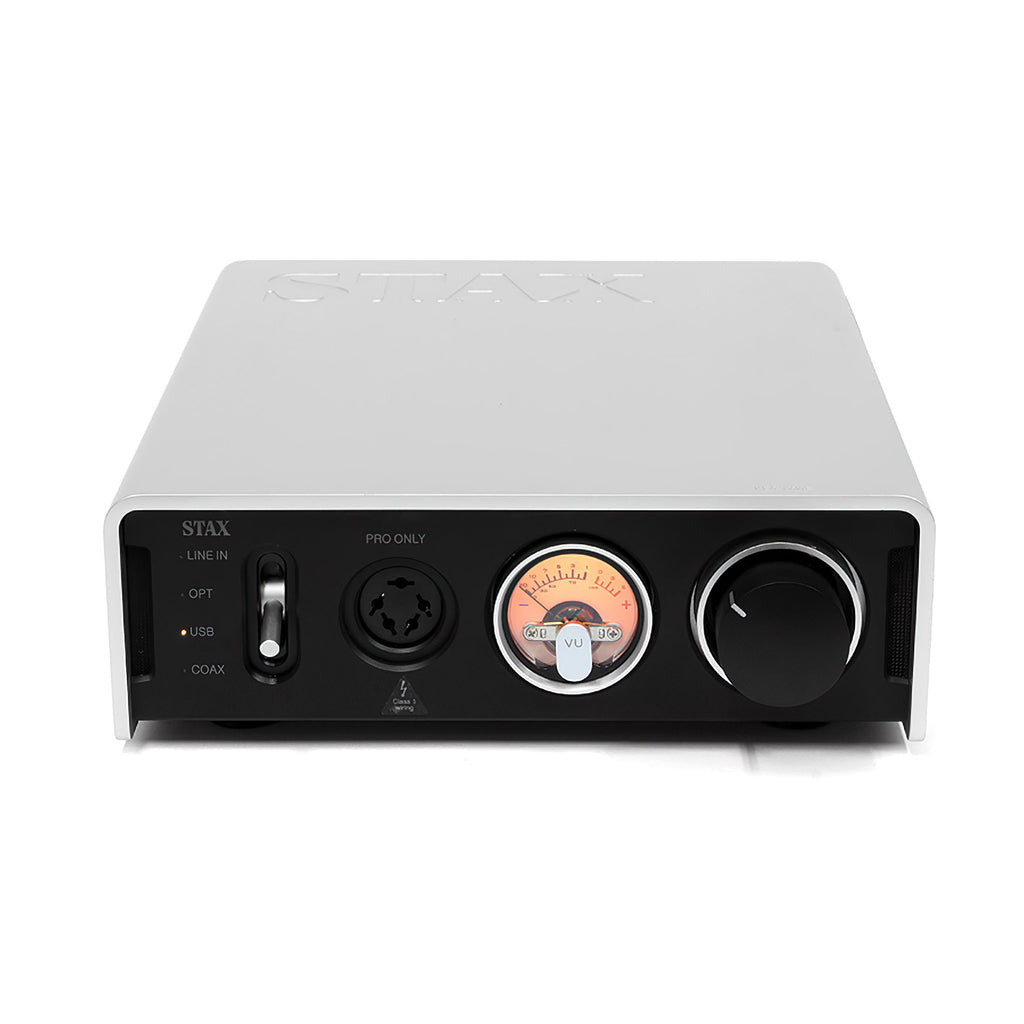

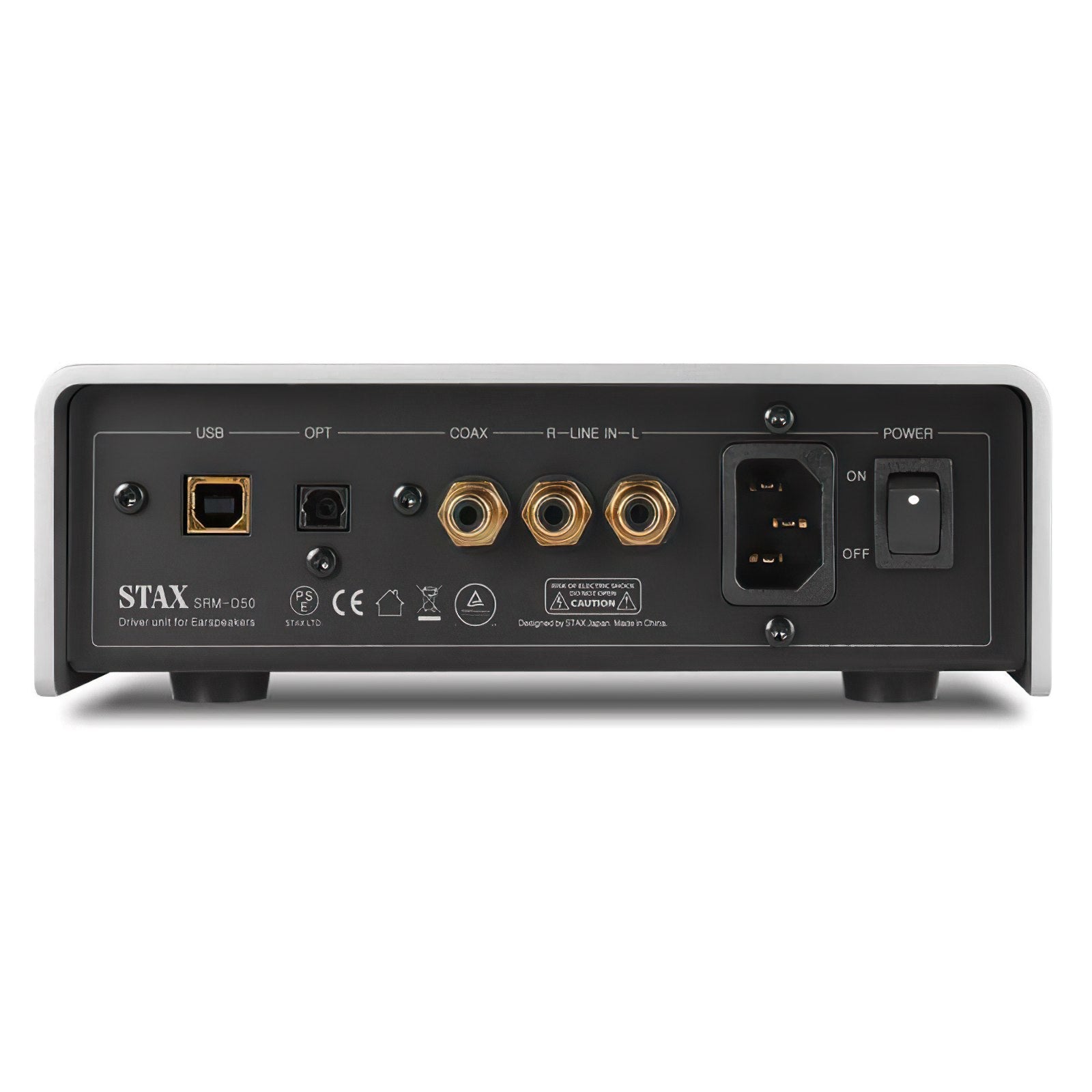

The SRM-D50 has been designed to be super-durable. The non-magnetic aluminium chassis is 4mm thick so that it is more robust. At the same time, it is also quite compact to easily fit on a table. The chassis contains one 5-pin output for your STAX Earspeaker and a VU meter. It also consists of various kinds of digital inputs like optical, USB and coaxial so that you can use your favourite source along with the SRM-D50.

1 Year Warranty

Don't sweat it, this STAX SRM-D50 comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

AUDIO SPECIFICATIONS

FREQUENCY RESPONSE 20Hz - 40kHz (+/-3dB)
HIGH HARMONIC DISTORTION 0.025% or less/1kHz-10kHz /When use with SR-L series
MAX. OUTPUT VOLTAGE 400V RMS (1130Vp-p)
BIAS VOLTAGE DC 580V
GAIN 59 dB
INPUT IMPEDANCE 20kΩ (RCA)



CONTROLS & CONNECTIVITY

RATED INPUT LEVEL 130mV r.m.s
MAXIMUM INPUT LEVEL 30V/ RCA, at minimum volume
DIGITAL INPUT USB (type B) ×1、TOSLINK Optical ×1、COAX RCA ×1
ANALOG INPUT RCA ×1
MAINS VOLTAGE AC 110V / 60Hz
POWER CONSUMPTION 35W
OPERATING TEMPREATURE 0 to 35 degrees (Celsius) (less than 90% humidity, non condensing)



DESIGN & BUILD

DIMENSIONS 7.55(W) x 2.63(H) x 10.55(D) inches, 192(W)×67(H)×268(D) mm
WEIGHT 9.9 lbs / 4.5 kg
BATTERY Size AA battery x2 (Alkaline battery, Rechargable , Magnesium Dry Cell)



IN THE BOX

BOX CONTENTS 1. STAX SRM-D50 Electrostatic Amp/DAC

Features & Specifications

AUDIO SPECIFICATIONS

FREQUENCY RESPONSE

20Hz - 40kHz (+/-3dB)

HIGH HARMONIC DISTORTION

0.025% or less/1kHz-10kHz /When use with SR-L series

MAX. OUTPUT VOLTAGE

400V RMS (1130Vp-p)

BIAS VOLTAGE

DC 580V

GAIN

59 dB

INPUT IMPEDANCE

20kΩ (RCA)

CONTROLS & CONNECTIVITY

RATED INPUT LEVEL

130mV r.m.s

MAXIMUM INPUT LEVEL

30V/ RCA, at minimum volume

DIGITAL INPUT

USB (type B) ×1、TOSLINK Optical ×1、COAX RCA ×1

ANALOG INPUT

RCA ×1

MAINS VOLTAGE

AC 110V / 60Hz

POWER CONSUMPTION

35W

OPERATING TEMPREATURE

0 to 35 degrees (Celsius) (less than 90% humidity, non condensing)

DESIGN & BUILD

DIMENSIONS

7.55(W) x 2.63(H) x 10.55(D) inches, 192(W)×67(H)×268(D) mm

WEIGHT

9.9 lbs / 4.5 kg

BATTERY

Size AA battery x2 (Alkaline battery, Rechargable , Magnesium Dry Cell)
